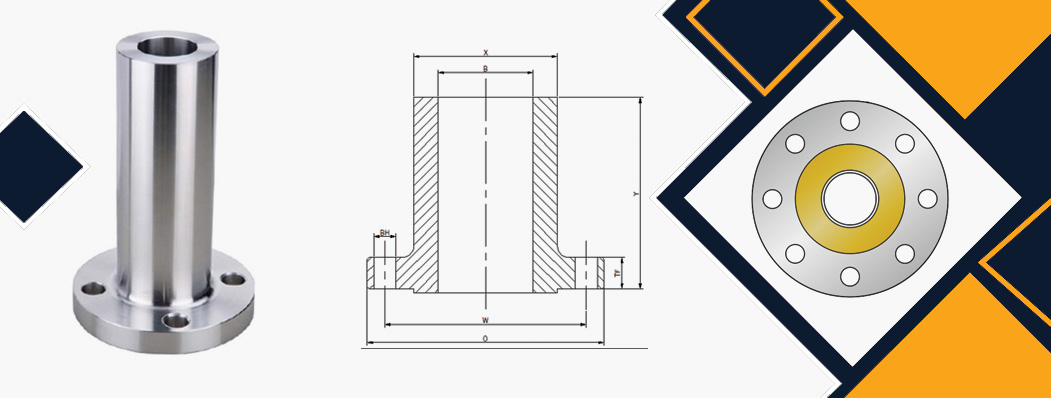

ANSI B16.5 Long Weld neck flanges are employed in applications where severe and critical circumstances exist. High pressure, extensive heat and compression swings, high temperature, volatile and dangerous fluids, and temperatures in the sub-zero range are all examples of these situations. We provide a multitude of barrel sizes at Rajendra Industrial Corporation, ranging from the more common long weld neck heavy barrels, equal barrels, and intermediate barrel products, based on your demands. We also offer a wide range of material grades, most of which is composed of forged carbon and stainless steel.

Specification Chart Of Long Weld Neck Flanges

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Size	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500
Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production Technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF)
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Material	Inconel Long Weld Neck Flange, Incoloy Long Weld Neck Flange, Monel Long Weld Neck Flange, Hastelloy Long Weld Neck Flange, Copper Nickel Long Weld Neck Flange, Alloy 20 Long Weld Neck Flange, Nickel Alloy Long Weld Neck Flange, AISI 4130 Long Weld Neck Flange, Titanium Long Weld Neck Flange, Brass Long Weld Neck Flange, Stainless Steel Long Weld Neck Flange, Duplex Steel Long Weld Neck Flange, Super Duplex Long Weld Neck Flange, SMO 254 Long Weld Neck Flange.

PED Certified LWN Flanges Manufacturer, ASME B16.5 Long Weld Neck Flange Stockholder, ANSI B 16.5 Class 300 Long Weld Neck Flange, ANSI B16.5 Long Welding Neck Flange Manufacturer in Mumbai, ASME B16.47 Series B Long Weld Neck Threaded Flange Dealer in India.

Different Types of Long Weld Neck Flanges

Stainless Steel Long Weld Neck Flanges

Alloy Steel Long Weld Neck Flanges

Carbon Steel Long Weld Neck Flanges

Duplex Steel Blind Flanges

Super Duplex Steel Long Weld Neck Flanges

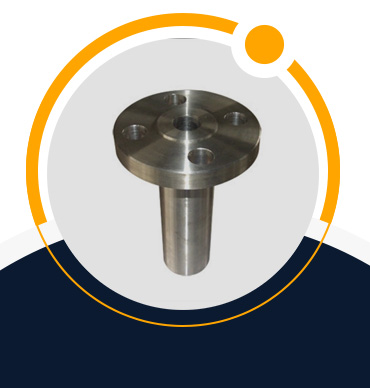

Nickel Alloy Long Weld Neck Flanges

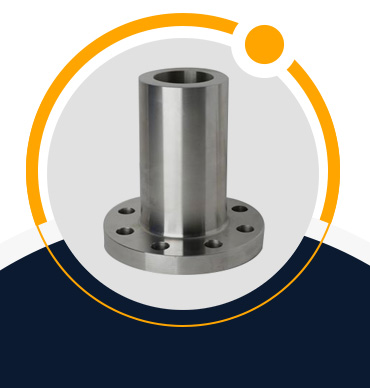

Monel Long Weld Neck Flanges

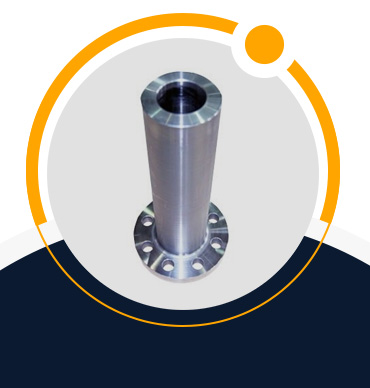

Hastelloy Long Weld Neck Flanges

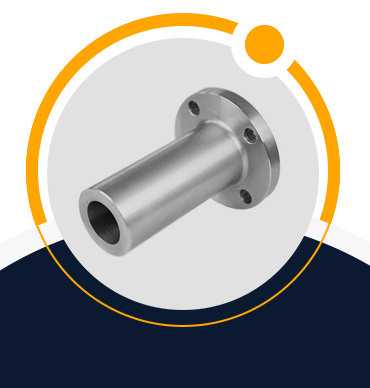

Inconel Long Weld Neck Flanges

Titanium Long Weld Neck Flanges

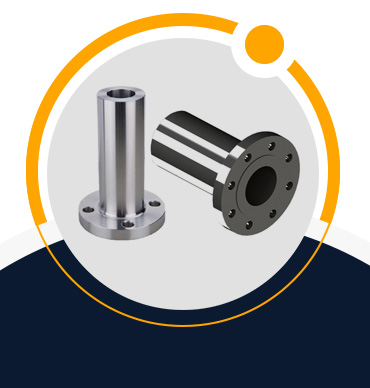

Alloy 20 Long Weld Neck Flanges

Copper Nickel Long Weld Neck Flanges

Manufacturer of ANSI B16.5 Long Weld Neck Flange and LWN Flanges in ASME B16.5 Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.5

Click On Below Links For Long Weld Neck Flanges Standard

View Price List of Long Weld Neck Flange

Price list of ASME B16.47 Series A Long Weld Neck Flange	US $0.5-1000 / Piece (FOB Price)
ANSI B16.5 Class 150 LWN Flanges Price in India	US $300-500 / Ton (FOB Price)
Price list of Long Weld Neck Pipe Flanges	US $1-900 / Piece (FOB Price)
Stainless Steel Long Weld Neck Flanges Price	US $0.5-1000 / Piece (FOB Price)
Long Weld Neck Flange Price List	US $1-300 / Piece (FOB Price)
Raised Faced LWN Flange Price Per Piece in India	US $1-800 / Piece (FOB Price)
ASME B16.5 Class 300 Raised Faced LWN Flanges Price	US $15-900 / Piece (FOB Price)
Price of Long Welding Neck Flanges EN 1092-1 Type 02	US $20-1500 / Piece (FOB Price)
EN 1092-2 PN16 Long Weld Neck Flange Price List	US $26-2000 / Piece (FOB Price)
AWWA C207 Class d Long Weld Neck Flange Price	US $18-1800 / Piece (FOB Price)

Attractive Price Offer of Raised Faced Long Weld Neck Flanges Per Kg, Buy Large or Small Quantity ANSI B16.5 Long Weld Neck Flanges at Factory Price, Also view the ASME B16.5 Long Weld Neck Flange Price List, Buy Flat Faced Long Welding Neck Flanges at an affordable Price in India.

Call us or send us an email

We can supply BS 4504 PN10 Long Weld Neck Flanges with customized Class / Pressure and sizes, view EN 1092-1 Type 02 Class 150 LWN Flange Price.

Get More Info

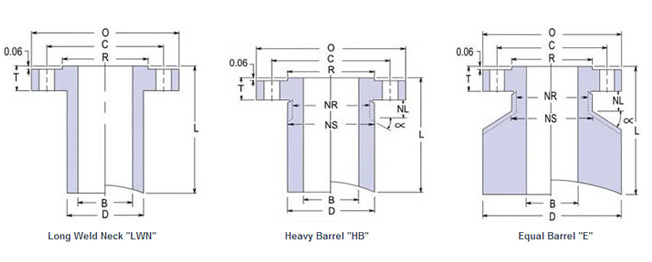

Long Weld Neck Flange Dimensions

Class 150 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	90	9.6	30	21.3	34.9	2	60.3	As Required	4	1/2	50	55	5/8	M14
3/4	20	100	11.2	38	26.7	42.9	2	69.9	As Required	4	1/2	50	65	5/8	M14
1	25	110	12.7	49	33.4	50.8	2	79.4	As Required	4	1/2	55	65	5/8	M14
1 1/4	32	115	14.3	59	42.2	63.5	2	88.9	As Required	4	1/2	55	70	5/8	M14
1 1/2	40	125	15.9	65	48.3	73	2	98.4	As Required	4	1/2	65	70	5/8	M14
2	50	150	17.5	78	60.3	92.1	2	120.7	As Required	4	5/8	70	85	3/4	M16
2 1/2	65	180	20.7	90	73	104.8	2	139.7	As Required	4	5/8	75	90	3/4	M16
3	80	190	22.3	108	88.9	127	2	152.4	As Required	4	5/8	75	90	3/4	M16
3 1/2	90	215	22.3	122	101.6	139.7	2	177.8	As Required	8	5/8	75	90	3/4	M16
4	100	230	22.3	135	114.3	157.2	2	190.5	As Required	8	5/8	75	90	3/4	M16
5	125	255	22.3	164	141.3	185.7	2	215.9	As Required	8	3/4	85	95	7/8	M20
6	150	280	23.9	192	168.3	215.9	2	241.3	As Required	8	3/4	85	100	7/8	M20
8	200	345	27	246	219.1	269.9	2	298.5	As Required	8	3/4	90	110	7/8	M20
10	250	405	28.6	305	273	323.8	2	362	As Required	12	7/8	100	115	1	M24
12	300	485	30.2	365	323.8	381	2	431.8	As Required	12	7/8	100	120	1	M24
14	350	535	33.4	400	355.6	412.8	2	476.3	As Required	12	1	115	135	1 1/8	M27
16	400	595	35	457	406.4	469.9	2	539.8	As Required	16	1	115	135	1 1/8	M27
18	450	635	38.1	505	457.2	533.4	2	577.9	As Required	16	1 1/8	125	145	1 1/4	M30
20	500	700	41.3	559	508	584.2	2	635	As Required	20	1 1/8	140	160	1 1/4	M30
24	600	815	46.1	663	610	692.2	2	749.3	As Required	20	1 1/4	150	170	1 3/8	M33

Class 300 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	95	12.7	38	21.3	34.9	2	66.7	As Required	4	1/2	55	65	5/8	M14
3/4	20	115	14.3	48	26.7	42.9	2	82.6	As Required	4	5/8	65	75	3/4	M16
1	25	125	15.9	54	33.4	50.8	2	88.9	As Required	4	5/8	65	75	3/4	M16
1 1/4	32	135	17.5	64	42.2	63.5	2	98.4	As Required	4	5/8	70	85	3/4	M16
1 1/2	40	155	19.1	70	48.3	73	2	114.3	As Required	4	3/4	75	90	7/8	M20
2	50	165	20.7	84	60.3	92.1	2	127	As Required	8	5/8	75	90	3/4	M16
2 1/2	65	190	23.9	100	73	104.8	2	149.2	As Required	8	3/4	85	100	7/8	M20
3	80	210	27	117	88.9	127	2	168.3	As Required	8	3/4	90	110	7/8	M20
3 1/2	90	230	28.6	133	101.6	139.7	2	184.2	As Required	8	3/4	95	110	7/8	M20
4	100	255	30.2	146	114.3	157.2	2	200	As Required	8	3/4	95	115	7/8	M20
5	125	280	33.4	178	141.3	185.7	2	235	As Required	8	3/4	110	120	7/8	M20
6	150	320	35	206	168.3	215.9	2	269.9	As Required	12	3/4	110	120	7/8	M20
8	200	380	39.7	260	219.1	269.9	2	330.2	As Required	12	7/8	120	140	1	M24
10	250	445	46.1	321	273	323.8	2	387.4	As Required	16	1	140	160	1 1/8	M27
12	300	520	49.3	375	323.8	381	2	450.8	As Required	16	1 1/8	145	170	1 1/4	M30
14	350	585	52.4	425	355.6	412.8	2	514.4	As Required	20	1 1/8	160	180	1 1/4	M30
16	400	650	55.6	483	406.4	469.9	2	571.5	As Required	20	1 1/4	165	190	1 3/8	M33
18	450	710	58.8	533	457	533.4	2	628.6	As Required	24	1 1/4	170	195	1 3/8	M33
20	500	775	62	587	508	584.2	2	685.8	As Required	24	1 1/4	185	205	1 3/8	M33
24	600	915	68.3	702	610	692.2	2	812.8	As Required	24	1 1/2	205	230	1 5/8	M39

Class 400 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	95	14.3	38	21.3	34.9	7	66.7	As Required	4	1/2	75	5/8	M14
3/4	20	115	15.9	48	26.7	42.9	7	82.6	As Required	4	5/8	90	3/4	M16
1	25	125	17.5	54	33.4	50.8	7	88.9	As Required	4	5/8	90	3/4	M16
1 1/4	32	135	20.7	64	42.2	63.5	7	98.4	As Required	4	5/8	95	3/4	M16
1 1/2	40	155	22.3	70	48.3	73	7	114.3	As Required	4	3/4	110	7/8	M20
2	50	165	25.4	84	60.3	92.1	7	127	As Required	8	5/8	110	3/4	M16
2 1/2	65	190	28.6	100	73	104.8	7	149.2	As Required	8	3/4	120	7/8	M20
3	80	210	31.8	117	88.9	127	7	168.3	As Required	8	3/4	125	7/8	M20
3 1/2	90	230	35	133	101.6	N/A	7	184.2	As Required	8	7/8	140	1	M24
4	100	255	35	146	114.3	157.2	7	200	As Required	8	7/8	140	1	M24
5	125	280	38.1	178	141.3	185.7	7	235	As Required	8	7/8	145	1	M24
6	150	320	41.3	206	168.3	215.9	7	269.9	As Required	12	7/8	150	1	M24
8	200	380	47.7	260	219.1	269.9	7	330	As Required	12	1	170	1 1/8	M27
10	250	445	54	321	273	323.8	7	387.4	As Required	16	1 1/8	190	1 1/4	M30
12	300	520	57.2	375	323.8	381	7	450.8	As Required	16	1 1/4	205	1 3/8	M33
14	350	585	60.4	425	355.6	412.8	7	514.4	As Required	20	1 1/4	210	1 3/8	M33
16	400	650	63.5	483	406.4	469.9	7	571.5	As Required	20	1 3/8	220	1 1/2	M36
18	450	710	66.7	533	457	533.4	7	628.6	As Required	24	1 3/8	230	1 1/2	M36
20	500	775	69.9	587	508	584.2	7	685.8	As Required	24	1 1/2	240	1 3/4	M39
24	600	915	76.2	702	610	692.2	7	812.8	As Required	24	1 3/4	265	1 7/8	M45

Class 600 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	95	14.3	38	21.3	34.9	7	66.7	As Required	4	1/2	75	5/8	M14
3/4	20	115	15.9	48	26.7	42.9	7	82.6	As Required	4	5/8	90	3/4	M16
1	25	125	17.5	54	33.4	50.8	7	88.9	As Required	4	5/8	90	3/4	M16
1 1/4	32	135	20.7	64	42.2	63.5	7	98.4	As Required	4	5/8	95	3/4	M16
1 1/2	40	155	22.3	70	48.3	73	7	114.3	As Required	4	3/4	110	7/8	M20
2	50	165	25.4	84	60.3	92.1	7	127	As Required	8	5/8	110	3/4	M16
2 1/2	65	190	28.6	100	73	104.8	7	149.2	As Required	8	3/4	120	7/8	M20
3	80	210	31.8	117	88.9	127	7	168.3	As Required	8	3/4	125	7/8	M20
3 1/2	90	230	35	133	101.6	N/A	7	184.2	As Required	8	7/8	140	1	M24
4	100	275	38.1	152	114.3	157.2	7	215.9	As Required	8	7/8	145	1	M24
5	125	330	44.5	189	141.3	185.7	7	266.7	As Required	8	1	165	1 1/8	M27
6	150	355	47.7	222	168.3	215.9	7	292.1	As Required	12	1	170	1 1/8	M27
8	200	420	55.6	273	219.1	269.9	7	349.2	As Required	12	1 1/8	190	1 1/4	M30
10	250	510	63.5	343	273	323.8	7	431.8	As Required	16	1 1/4	215	1 3/8	M33
12	300	560	66.7	400	323.8	381	7	489	As Required	20	1 1/4	220	1 3/8	M33
14	350	605	69.9	432	355.6	412.8	7	527	As Required	20	1 3/8	235	1 1/2	M36
16	400	685	76.2	495	406.4	469.9	7	603.2	As Required	20	1 1/2	255	1 5/8	M39
18	450	745	82.6	546	457	533.4	7	654	As Required	20	1 5/8	275	1 3/4	M42
20	500	815	88.9	610	508	584.2	7	723.9	As Required	24	1 5/8	285	1 3/4	M42

Class 900 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	120	22.3	38	21.3	34.9	7	82.6	As Required	4	3/4	110	7/8	M20
3/4	20	130	25.4	44	26.7	42.9	7	88.9	As Required	4	3/4	115	7/8	M20
1	25	150	28.6	52	33.4	50.8	7	101.6	As Required	4	7/8	125	1	M24
1 1/4	32	160	28.6	64	42.2	63.5	7	111.1	As Required	4	7/8	125	1	M24
1 1/2	40	180	31.8	70	48.3	73	7	123.8	As Required	4	1	140	1 1/8	M27
2	50	215	38.1	105	60.3	92.1	7	165.1	As Required	8	7/8	145	1	M24
2 1/2	65	245	41.3	124	73	104.8	7	190.5	As Required	8	1	160	1 1/8	M27
3	80	240	38.1	127	88.9	127	7	190.5	As Required	8	7/8	145	1	M24
4	100	290	44.5	159	114.3	157.2	7	235	As Required	8	1 1/8	170	1 1/4	M30
5	125	350	50.8	190	141.3	185.7	7	279.4	As Required	8	1 1/4	190	1 3/8	M33
6	150	380	55.6	235	168.3	215.9	7	317.5	As Required	12	1 1/8	190	1 1/4	M30
8	200	470	63.5	298	219.1	269.9	7	393.7	As Required	12	1 3/8	220	1 1/2	M36
10	250	545	69.9	368	273	323.8	7	469.9	As Required	16	1 3/8	235	1 1/2	M36
12	300	610	79.4	419	323.8	381	7	533.4	As Required	20	1 3/8	255	1 1/2	M36
14	350	640	85.8	451	355.6	412.8	7	558.8	As Required	20	1 1/2	275	1 5/8	M39
16	400	705	88.9	508	406.4	469.9	7	616	As Required	20	1 5/8	285	1 3/4	M42
18	450	785	101.6	565	457	533.4	7	685.8	As Required	20	1 7/8	325	2	M48
20	500	855	108	622	508	584.2	7	749.3	As Required	20	2	350	2 1/8	M52
24	600	1040	139.7	749	610	692.2	7	901.7	As Required	20	2 1/2	440	2 5/8	M64

Class 1500 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	120	22.3	38	21.3	34.9	7	82.6	As Required	4	3/4	110	7/8	M20
3/4	20	130	25.4	44	26.7	42.9	7	88.9	As Required	4	3/4	115	7/8	M20
1	25	150	28.6	52	33.4	50.8	7	101.6	As Required	4	7/8	125	1	M24
1 1/4	32	160	28.6	64	42.2	63.5	7	111.1	As Required	4	7/8	125	1	M24
1 1/2	40	180	31.8	70	48.3	73	7	123.8	As Required	4	1	140	1 1/8	M27
2	50	215	38.1	105	60.3	92.1	7	165.1	As Required	8	7/8	145	1	M24
2 1/2	65	245	41.3	124	73	104.8	7	190.5	As Required	8	1	160	1 1/8	M27
3	80	265	47.7	133	88.9	127	7	203.2	As Required	8	1 1/8	180	1 1/4	M30
4	100	310	54	162	114.3	157.2	7	241.3	As Required	8	1 1/4	195	1 3/8	M33
5	125	375	73.1	197	141.3	185.7	7	292.1	As Required	8	1 1/2	250	1 5/8	M39
6	150	395	82.6	229	168.3	215.9	7	317.5	As Required	12	1 3/8	260	1 1/2	M36
8	200	485	92.1	292	219.1	269.9	7	393.7	As Required	12	1 5/8	290	1 3/4	M42
10	250	585	108	368	273	323.8	7	482.6	As Required	12	1 7/8	335	2	M48
12	300	675	123.9	451	323.8	381	7	571.5	As Required	16	2	375	2 1/8	M52
14	350	750	133.4	495	355.6	412.8	7	635	As Required	16	2 1/4	405	2 3/8	M56
16	400	825	146.1	552	406.4	469.9	7	704.8	As Required	16	2 1/2	445	2 5/8	M64
18	450	915	162	597	457	533.4	7	774.7	As Required	16	2 3/4	495	2 7/8	M72
20	500	985	177.8	641	508	584.2	7	831.8	As Required	16	3	540	3 1/8	M76
24	600	1170	203.2	762	610	692.2	7	990.6	As Required	16	3 1/2	615	3 5/8	M90

Class 2500 Long Weld Neck Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	135	30.2	43	21.3	34.9	7	88.9	As Required	4	3/4	120	7/8	M20
3/4	20	140	31.8	51	26.7	42.9	7	95.2	As Required	4	3/4	125	7/8	M20
1	25	160	35	57	33.4	50.8	7	108	As Required	4	7/8	140	1	M24
1 1/4	32	185	38.1	73	42.2	63.5	7	130.2	As Required	4	1	150	1 1/8	M27
1 1/2	40	205	44.5	79	48.3	73	7	146	As Required	4	1 1/8	170	1 1/4	M30
2	50	235	50.9	95	60.3	92.1	7	171.4	As Required	8	1	180	1 1/8	M27
2 1/2	65	265	57.2	114	73	104.8	7	196.8	As Required	8	1 1/8	195	1 1/4	M30
3	80	305	66.7	133	88.9	127	7	228.6	As Required	8	1 1/4	220	1 3/8	M33
4	100	355	76.2	165	114.3	157.2	7	273	As Required	8	1 1/2	255	1 5/8	M39
5	125	420	92.1	203	141.3	185.7	7	323.8	As Required	8	1 3/4	300	1 7/8	M45
6	150	485	108	235	168.3	215.9	7	368.3	As Required	8	2	345	2 1/8	M52
8	200	550	127	305	219.1	269.9	7	438.2	As Required	12	2	380	2 1/8	M52
10	250	675	165.1	375	273	323.8	7	539.8	As Required	12	2 1/2	490	2 5/8	M64
12	300	760	184.2	441	323.8	381	7	619.1	As Required	12	2 3/4	540	2 7/8	M72

ASME B16.5 Long Weld Neck Flanges Weight Chart

Pipe Size	150 #			300 #			600 #			900 #			1500 #			2500 #
Pipe Size	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD
1/2"	2	1	1	2	1	1	2	2	2	SEE 1500 # WEIGHTS			5	4	4	7	7	7
3/4"	2	2	2	3	3	3	4	3	3	SEE 1500 # WEIGHTS			6	5	6	8	8	8
1"	3	2	2	4	3	3	4	4	4	SEE 1500 # WEIGHTS			9	8	8	12	11	11
1 1/2"	4	3	3	7	6	6	8	7	8	SEE 1500 # WEIGHTS			13	12	13	25	22	23
2"	6	5	5	9	7	8	12	9	10	SEE 1500 # WEIGHTS			25	25	25	42	37	39
2 1/2"	8	7	7	12	10	12	18	13	15	SEE 1500 # WEIGHTS			36	36	35	52	55	56
3"	10	8	9	15	13	16	23	16	20	31	26	29	48	48	48	94	83	86
4"	15	13	17	25	22	27	42	37	41	53	53	54	73	73	73	145	125	130
5"	19	15	20	32	28	35	68	63	68	86	83	87	130	130	140	245	210	225
6"	24	19	26	42	39	50	81	80	86	110	110	115	165	165	160	380	325	345
8"	39	30	45	67	58	81	120	115	140	175	170	200	275	260	300	580	485	530
10"	52	43	70	91	81	124	190	170	230	260	245	290	455	435	510	1075	930	1025
12"	80	64	110	140	115	185	225	200	295	325	325	415	690	580	690	1525	1100	1300
14"	110	90	140	180	165	250	280	230	355	400	400	520	940	NA	975	NA	NA	NA
16"	140	98	180	250	190	295	390	330	495	495	425	600	1250	NA	1300	NA	NA	NA
18"	150	130	220	320	250	395	475	400	630	680	600	850	1625	NA	1750	NA	NA	NA
20"	180	165	285	400	315	505	590	510	810	830	730	1075	2050	NA	2225	NA	NA	NA
22"	225	185	355	465	370	640	720	590	1000	NA	NA	NA	NA	NA	NA	NA	NA	NA
24"	260	220	430	580	475	790	830	730	1250	1500	1400	2025	3325	NA	3625	NA	NA	NA

ANSI B16.5 Long Weld Neck Flanges Manufacturing Process

View Dimension of PN16 Long Weld Neck Flange, ISO Certifed BS10 Table D LWN Flange, AWWA C207 Class D Long Weld Neck Flange Manufacturer in India for high quality and better price.

ASME B16.5 Long Weld Neck Flanges Packing & Delivery

We Have 25+ Years Experience

The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all Long Weld Neck Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.

Application of Long Weld Neck Pipe Flanges

Oil & Gas

Chemical

Petrochemical

Marine

Refinery

Power Plant

Widest Range of Long Weld Neck Flanges in Mumbai, India

Alloy 20 Long Welding Neck Flanges	Copper Nickel Long Weld Neck Flanges at Best Price
Mild Steel LWN Flange	Class 1500 Long Weld Neck Flanges Distributor in Mumbai
SS Long Welding Neck Flange 150LBS	Class 900 LWN Flange Dimensions
Stainless Steel Long Weld Neck Flange	ASTM B564 Raised Faced Long Weld Neck Flanges
ASME B16.5 Class 300 LWN Flanges Stockist	Flat Faced Long Weld Neck Pipe Flanges
JIS B2220 10K Long Weld Neck Flange	PN 10 Long Welding Neck Flanges
ASME B16.47 Series A Long Weld Neck Flange Manufacturer	Raised Face Long Weld Neck Flange Manufacturer
JIS 5K LWN Flange Dimensions	30 Inch Long Weld Neck Flange Dimensions
EN 1092-2 Long Welding Neck Flange	Carbon Steel Raised Face Long Weld Neck Flange Stockist
4 inch Stainless Steel Long Weld Neck Flange	Long Weld Neck Flange Stockholder
ASME B16.5 Class 600 Long Welding Neck Flanges	Long Weld Neck Pipe Flange Exporter
ASME B16.5 Long Weld Neck Flanges Exporter	Duplex Steel Long Weld Neck Flanges
ASME B16.5 LWN Flange	Long Weld Neck Flange Supplier in India
EN 1092-2 PN16 LW/n Flange Stockist in India	AWWA C207 Class D Long Weld Neck Flange
ANSI B16.5 Long Weld Neck Flanges Wholesaler	EN 1092-1 Long Weld Neck Flanges Supplier
BS 4504 PN10 Long Weld Neck Flanges Supplier in Mumbai	Alloy Steel Long Weld Neck Flanges Manufacturer in India
ASME SA105N Raised Faced Long Weld Neck Flanges	18 inch Long Weld Neck Class 150 Carbon Steel Flange
DIN 2503 PN25 Long Weld Neck Flanges Supplier	Suppliers of DIN 2543 PN16 Long Welding Neck Flanges
ANSI B16.5 Long Weld Neck Flange	JIS 10K Long Welding Neck Flanges
ANSI B16.5 Class 150 Long Weld Neck Flange	ASME B16.47 Series B LWN Flanges Dealer in India
Duplex Steel Long Weld Neck Flanges Supplier in Mumbai	JIS 10K Long Welding Neck Flange Supplier in Mumbai
PN16 Long Welding Neck Flange Dimensions	Table D Long Weld Neck Flange Dimensions
A182 Flat Faced Long Weld Neck Flanges	Titanium Flat Faced Long Weld Neck Flanges
8 Inch LWN Flanges	ANSI B16.5 150 LBS Long Weld Neck Flanges
18 inch Long Weld Neck Class 150 Carbon Steel Flange	AWWA C207 Long Weld Neck Flanges
Nickel Alloy Long Weld Neck Flange	Table E Long Weld Neck Pipe Flanges Supplier in Mumbai
JIS B2220 5K 10K 16K Long Weld Neck Flanges	DIN Standard PN25 Long Weld Neck Flanges
MS Long Weld Neck Flange Table E	Class 1500 Long Welding Neck Flange Dimensions
Carbon Steel Long Weld Neck Flat Face Flange	ANSI #150 Long Welding Neck Flange Supplier
ASME B16.5 Long Weld Neck Flange Manufacturer	150# Flat Face Long Weld Neck Flange Manufacturer
JIS 16K Long Welding Neck Flange Dealer	DIN 86029 PN10 Long Weld Neck Flange Manufacturer

Searches Related to ASME B16.5 Long Weld Neck Flanges

long weld neck flange 150 lbs dimensions, series b long weld neck flange, long weld neck flange price, 1/2 long welding neck flange, ms long weld neck flange, alloy 20 long welding neck flanges manufacturer, long weld neck flanges supplier in mumbai, lwn flange price list philippines, ansi b 16.5 long weld neck flange dimensions, long weld neck flange dimensions pn16, long weld neck flange dimensions in mm, bs10 table d long weld neck flange, pn16 lwn flange dimensions, hastelloy long weld neck flanges manufacturer in mumbai, long weld neck pipe flanges supplier in india, long weld neck flat face flange price list in mumbai, long weld neck flange pn10, super duplex steel long weld neck flanges, asme b16.5 ss long weld neck flange, long weld neck flange dimensions 300#, long weld neck flange din 2576 pn16, 24 long weld neck flange dimensions, price of stainless steel long weld neck flanges, table e long welding neck flange dimensions, long weld neck flange jis 10k, titanium long weld neck flanges stockist in mumbai, long weld neck flanges dealer, class 1500# long weld neck flanges, stainless steel long weld neck flanges importer, en 1092-1 long weld neck flange, incoloy long weld neck flanges distributor, long welding neck flange dimensions class 150, dimensions of lwn flange, long weld neck flange thickness, class 600# long weld neck flanges exporter, monel long weld neck flanges exporter, long weld neck flange distribution, alloy steel long weld neck flanges supplier, long weld neck flanges dealer, smo 254 long weld neck flange price list, long welding neck flanges manufacturers in india, awwa c207 class d long welding neck flange, 30 inch lwn flange dimensions, carbon steel long welding neck flange manufacturer, table d long weld neck flange dimensions, long weld neck plate flanges manufacturer in mumbai, long weld neck flange din 2576 pn10, long welding neck flange price list in india, cost of long weld neck flange, class 900 long weld neck flange dimensions, long weld neck flanges traders, long weld neck flange dealer in gujarat, long weld neck flanges manufacturer in rajkot, jis 5k long weld neck flange weight, class 900# long weld neck flanges stock, long weld neck flange en 1092-1, inconel long weld neck flanges wholesaler, long weld neck flange price in ahmedabad, long weld neck flange dimensions mm, long welding neck flange weight chart in kg, long weld neck flange 150 dimensions, nickel alloy long weld neck flange price list in india, long weld neck flanges manufacturer in india, long weld neck flanges stockholder, asme 16.5 lwn flanges stockholder, asme b16.47 long weld neck flange dimensions, long weld neck flanges stockist in mumbai, long weld neck flange pn16, long weld neck flange dn80 pn10, jis 5k long weld neck flange dimensions, long weld neck flange duplex steel long weld neck flanges supplier in india, nickel alloy long welding neck flange supplier in mumbai, class 600 long weld neck flange dimensions, biggest long weld neck flange manufacturer in india, long weld neck flange price list, copper nickel long weld neck manufacturer in mumbai.

We Supply ANSI / ASME B16.5 Long Weld Neck Flange in the following cities

Bengaluru	Mumbai	Chennai	Hyderabad	Kolkata	Pune
New Delhi	Ahmedabad	Jaipur	Surat	Salem	Gandhinagar
Bhiwandi	Tiruppur	Sivakasi	Jamnagar	Thiruvananthapuram	Rajahmundry
Bhubaneswar	Vijaywada	Firozabad	Bokaro Steel City	Rajkot	Bharuch
Panna	Raipur	Cochin	Ludhiana	Panipat	Durgapur
Peenya	Pimpri-Chinchwad	Channapatna	Kharagpur	Nashik	Bareilly
Varanasi	Haldia	Rourkela	Bangalore	Moradabad	Indore
Visakhapatnam	Trivandrum	Pithampur	Dibrugarh	Angul	Gwalior
Coimbatore	Kannur	Nagpur	Vadodara	Rudrapur	Noida
Agra	Bhagalpur	Jamshedpur	Bhilai	Lucknow	Kanpur
Thane	Bhopal	Sri City	Bareilly	Hosdurg	Pithampur

Long Weld Neck Flanges Manufacturer in India

ASME B16.5 Long Weld Neck Flanges, Long Welding Neck Flange, MSS SP-44 Long Weld Neck Flanges, ANSI B16.5 Class 150 Long Weld Neck Flange, LWN Flanges, Flat Face Long Weld Neck Flanges, Raise Face Long Weld Neck Flanges, Long Weld Neck Flanges Manufacturer in Mumbai, India.
