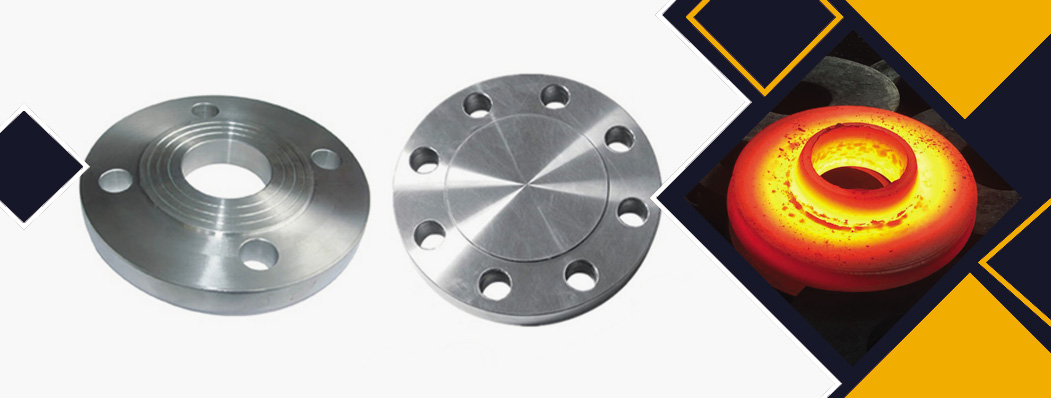

BS 4504 Flange, British Standard BS 4504 PN16 & PN40 Manufacturer in Mumbai, India.

Alloy Steel BS 4504 PN6 Flanges, Copper Nickel BS 4504 Flanges, SS BS 4504 PN40 Flanges Stockist, Duplex Steel BS 4504 Flange, Inconel BS 4504 Flanges, Hastelloy BS 4504 PN16 Flanges, Monel BS 4504 Flange, Carbon Steel BS 4504 Flanges, Stainless Steel BS 4504 PN10 Flanges, Titanium BS 4504 Flanges, Nickel Alloy BS 4504 Flanges, SDSS BS 4504 Flanges Supplier in Mumbai, India.

BS 4504 PN16 Flanges Manufacturer in India, BS 4504 PN10 Flanges Manufacturer in Mumbai, BS 4504 Flanges Stockist in Mumbai, BS 4504 PN6 Flanges Stockist in India, BS 4504 PN40 Flanges Supplier in India, BS 4504 Flanges Supplier in Mumbai.

These BS 4504 Flanges come in different grades and materials including Stainless Steel BS 4504 Flange: Duplex & Super Duplex Steel BS 4504 Flange, Carbon Steel BS 4504 Flange, Low-Temperature Carbon Steel BS 4504 Flange, Alloy Steel BS 4504 Flange, Copper Alloy Steel BS 4504 Flange, Nickel Alloy BS 4504 Flange. The workforce at, Rajendra Industrial Corporation, sees to it that they are made in custom measurements, and dimensions, also we inspect each and every flange to check its structural efficiency.

Specification Chart Of BS 4504 Flanges

Size	(1/2") To (48")
Size Of Bore Diameter Flange	NPS ≤ 10
Standard Dimensions	EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API.
Minimum Pressure	150# To 2500#
Flange Face Type Manufacturer	Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face.
Top Six Type Of Flange	Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange
Standard Materials	Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel.
Thickness Length	NPS ≤ 18
Manufacturing Process	Forged/ Machined/ Heat Treated
Other Type Of Flange	Forged/ Plate/ Threaded

BS 4504 Forged Flanges Pressure Rating, BS 4504 Socket weld Flange Manufacturer in Mumbai, BS 4504 PN6 Welding Neck Flange, BS 4504 PN10 Slip on Flanges Stockholder, PED Certified BS 4504 PN16 Blind Flanges Manufacturer, BS 4504 Lap Joint Flange, Best Price of BS 4504 Flange, BRITISH BS 4504 Threaded Flanges Dealer in India.

Different Types of BS 4504 Flanges

BS 4504 Forged Flanges

BS 4504 Blind Flanges

BS 4504 Slip On Flanges

BS 4504 Weld Neck Flanges

BS 4504 Socket weld Flanges

BS 4504 Threaded Flanges

BS 4504 Spectacle Blind Flanges

BS 4504 Ring Type Joint Flanges

BS 4504 Long Weld Neck Flanges

BS 4504 Lap Joint Flanges

BS 4504 Orifice Flanges

BS 4504 Plate Flanges

Manufacturer of BS 4504 Flange, BS 4504 PN6 Flange Dimensions In MM, BS 4504 PN16 Flange Pressure Rating, 8 Inch BS 4504 Flange Dimensions.

View Price List of BS 4504 Flange

Price list of BS 4504 Weld Neck Flange	US $0.5-1000 / Piece (FOB Price)
BS 4504 Flanges Price in India	US $300-500 / Ton (FOB Price)
Price list of BS 4504 Forged Flanges	US $1-900 / Piece (FOB Price)
Stainless Steel BS 4504 Flanges Price	US $0.5-1000 / Piece (FOB Price)
BS 4504 Flange Price List	US $1-300 / Piece (FOB Price)
BS 4504 Flange Price Per Piece in India	US $1-800 / Piece (FOB Price)
BS 4504 Slip on Flanges Price	US $15-900 / Piece (FOB Price)
Price of Carbon Steel BS 4504 Flanges	US $20-1500 / Piece (FOB Price)
BS 4504 Pipe Flanges EN Standards Price List	US $26-2000 / Piece (FOB Price)
BS 4504 Lap Joint langes Price	US $18-1800 / Piece (FOB Price)

Also view the BS 4504 Flanges Price List, Buy Large or Small Quantity BS 4504 PN6 Slip on Flanges at Factory Price, Attractive Price Offer of BS 4504 Flange Per Kg, Buy BS 4504 PN16 Weld Neck Flange at an affordable Price in India.

Call us or send us an email

We can supply BS 4504 Forged Flanges with customized Class / Pressure and sizes, view BS 4504 PN6 Raised Face Flanges Price.

Get More Info

BS 4504 Flange Dimensions

DN	D	C1	C2	H1	H2	H3	R	A	N1	N2	B1	d1	f1
10	90	14	14	20	35	6	3	17,2	28	30	18	40	2
15	95	14	14	20	35	6	3	21,3	32	35	22	45	2
20	105	14	14	24	38	6	4	26,9	39	45	27,5	58	2
25	115	16	16	24	38	6	4	33,7	46	52	34,5	68	2
32	140	18	16	26	40	6	5	42,4	56	60	43,5	78	2
40	150	18	16	26	42	7	5	48,3	64	70	49,5	88	3
50	165	20	18	28	45	8	5	60,3	74	84	61,5	102	3
65	185	20	18	32	45	10	6	76,1	92	104	77,5	122	3
80	200	20	20	34	50	10	6	88,9	110	118	90,5	138	3
100	220	22	20	40	52	12	6	114,3	130	140	116	162	3
125	250	22	22	44	55	12	6	139,7	158	168	141,5	188	3
150	285	24	22	44	55	12	8	168,3	184	195	170,5	212	3
200	340	26	24	44	62	16	8	219,1	234	246	221,5	268	3
250	405	29	26	46	70	16	10	273	288	298	276,5	320	3
300	460	32	28	46	78	16	10	323,9	342	350	327,5	378	4
350	520	35	30	57	82	16	10	355,6	390	400	359	438	4
400	580	38	32	63	85	16	10	406,4	444	456	411,0	490	4
450	640	42	34	68	87	16	12	457,0	490	502	462,0	550	4
500	715	46	34	73	90	16	12	508,0	546	559	513,5	610	4
600	840	52	36	83	95	18	12	610,0	650	658	616,5	725	5
700	910	60	36	83	100	18	12	711,0	750	760	–	795	5
800	1025	68	38	90	105	20	12	813,0	848	864	–	900	5
900	1125	76	40	94	110	20	12	914,0	948	968	–	1000	5
1000	1255	84	42	100	120	22	12	1016,0	1056	1072	–	1115	5
1200	1485	98	48	–	130	30	12	1220,0	1260	–	–	1330	5
1400	1685	–	52	–	145	30	12	1420,0	1465	–	–	1530	5
1600	1930	–	58	–	160	35	12	1620,0	1668	–	–	1750	5
DN	D	C1	C2	H1	H2	H3	R	A	N1	N2	B1	d1	f1

BS 4504 PN10 Flange Dimensions

Nom. Size	Flange						Raised Face		Boss	Drilling			Bolting	Neck					Bore Diameter
DN	A	C	C1	C2	D	D1	G	X	N	No.	I	J	Bolting	M	F	E	R	T	B
10	90	14	14	14	20	35	40	2	30	4	14	60	M12	28	17.2	6	3	1.8	18.0
15	95	14	14	14	20	35	45	2	35	4	14	65	M12	32	21.3	6	3	2.0	22.0
20	105	16	16	16	24	38	58	2	45	4	14	75	M12	39	26.9	6	4	2.3	27.5
25	115	16	16	16	24	38	68	2	52	4	14	85	M12	46	33.7	6	4	2.6	34.5
32	140	16	18	16	26	40	78	2	60	4	18	100	M16	56	42.4	6	5	2.6	43.5
40	150	16	18	16	26	42	88	3	70	4	18	110	M16	64	48.3	7	5	2.6	49.5
50	165	18	20	18	28	45	102	3	84	4	18	125	M16	74	60.3	8	5	2.9	61.5
65	185	18	20	18	32	45	122	3	104	4 / 8	18	145	M16	92	76.1	10	6	2.9	77.5
80	200	20	20	20	34	50	138	3	118	8	18	160	M16	110	88.9	10	6	3.2	90.5
100	220	20	22	20	40	52	162	3	140	8	18	180	M16	130	114.3	12	6	3.6	116.0
125 *	250	22	22	22	44	55	188	3	168	8	18	210	M16	158	139.7	12	6	4.0	141.5
150	285	22	24	22	44	55	212	3	195	8	22	240	M20	184	168.3	12	8	4.5	170.5
200	340	24	24	24	44	62	268	3	246	8	22	295	M20	234	219.1	16	8	5.6	221.5
250	395	26	26	26	46	68	320	3	298	12	22	350	M20	288	273.0	16	10	6.3	276.5
300	445	26	28	26	46	68	370	4	350	12	22	400	M20	342	323.9	16	10	7.1	327.6
350	505	26	28	26	53	68	430	4	400	16	22	460	M20	390	355.6	16	10	7.1	359.0
400	565	26	32	26	57	72	482	4	456	16	26	515	M24	440	406.4	16	10	7.1	411.0
450	615	28	36	28	63	72	532	4	502	20	26	565	M24	488	457.0	16	12	7.1	462.0
500	670	28	38	28	67	75	585	4	559	20	26	620	M24	540	508.0	16	12	7.1	513.5
600	780	28	42	34	75	80	685	5	658	20	30	725	M27	640	610.0	18	12	7.1	616.5
700	895	30	–	38	–	80	800	5	–	24	30	840	M27	746	711.0	18	12	8.0	–
800	1015	32	–	42	–	90	905	5	–	24	33	950	M30	848	813.0	18	12	8.0	–
900	1115	34	–	46	–	95	1005	5	–	28	33	1050	M30	948	914.0	20	12	10.0	–
1000	1230	34	–	52	–	95	1110	5	–	28	36	1160	M33	1050	1016.0	20	12	10.0	–
1200	1455	38	–	60	–	115	1330	5	–	32	39	1380	M36	1256	1220.0	25	12	11.0	–
1400	1675	42	–	–	–	120	1535	5	–	36	42	1590	M39	1460	1420.0	25	12	12.0	–
1600	1915	46	–	–	–	130	1760	5	–	40	48	1820	M45	1666	1620.0	25	12	14.0	–
1800	2115	50	–	–	–	140	1960	5	–	44	48	2020	M45	1866	1820.0	30	15	15.0	–
2000	2325	54	–	–	–	150	2170	5	–	48	48	2230	M45	2070	2020.0	30	15	16.0	–
2200	2550	58	–	–	–	160	2370	6	–	52	56	2440	M52	2275	2220.0	35	15	–	–
2400	2760	62	–	–	–	170	2570	6	–	56	56	2650	M52	2478	2420.0	35	15	–	–
2600	2960	65	–	–	–	180	2780	6	–	60	56	2850	M52	2680	2620.0	40	18	–	–
2800	3180	70	–	–	–	190	3000	6	–	64	56	3070	M52	2882	2820.0	40	18	–	–
3000	3405	75	–	–	–	200	3210	6	–	68	62	3290	M56	3085	3020.0	40	18	–	–

BS 4504 PN16 Flange Dimensions

Nom. Size	Flange						Raised Face		Boss	Drilling			Bolting	Neck					Bore Diameter
DN	A	C	C1	C2	D	D1	G	X	N	No.	I	J		M	F	E	R	T	B
10	90	14	14	14	20	35	40	2	30	4	14	60	M12	28	17.2	6	3	1.8	18.0
15	95	14	14	14	20	35	45	2	35	4	14	65	M12	32	21.3	6	3	2.0	22.0
20	105	16	16	16	24	38	58	2	45	4	14	75	M12	39	26.9	6	4	2.3	27.5
25	115	16	16	16	24	38	68	2	52	4	14	85	M12	46	33.7	6	4	2.6	34.5
32	140	16	18	16	26	40	78	2	60	4	18	100	M16	56	42.4	6	5	2.6	43.5
40	150	16	18	16	26	42	88	3	70	4	18	110	M16	64	48.3	7	5	2.6	49.5
50	165	18	20	18	28	45	102	3	84	4	18	125	M16	74	60.3	8	5	2.9	61.5
65	185	18	20	18	32	45	122	3	104	4 / 8	18	145	M16	92	76.1	10	6	2.9	77.5
80	200	20	20	20	34	50	138	3	118	8	18	160	M16	110	88.9	10	6	3.2	90.5
100	220	20	22	20	40	52	162	3	140	8	18	180	M16	130	114.3	12	6	3.6	116.0
125 *	250	22	22	22	44	55	188	3	168	8	18	210	M16	158	139.7	12	6	4.0	141.5
150	285	22	24	22	44	55	212	3	195	8	22	240	M20	184	168.3	12	8	4.5	170.5
200	340	24	26	24	44	62	268	3	246	12	22	295	M20	234	219.1	16	8	5.6	221.5
250	405	26	29	26	46	70	320	3	298	12	26	355	M24	288	273.0	16	10	6.3	276.5
300	460	28	32	28	46	78	378	4	350	12	26	410	M24	342	323.9	16	10	7.1	327.6
350	520	30	35	30	57	82	438	4	400	16	26	470	M24	390	355.6	16	10	8.0	359.0
400	580	32	38	32	63	85	490	4	456	16	30	525	M27	444	406.4	16	10	8.0	411.0
450	640	34	42	36	63	87	550	4	502	20	30	585	M27	490	457.0	16	12	8.0	462.0
500	715	34	46	36	73	90	610	4	559	20	33	650	M30	546	508.0	16	12	8.0	513.5
600	840	36	52	44	83	95	725	5	658	20	36	770	M33	650	610.0	18	12	8.8	616.5
700	910	36	60	48	83	100	795	5	760	24	36	840	M33	750	711.0	18	12	8.6	–
800	1025	38	68	52	90	105	900	5	864	24	39	950	M36	848	813.0	20	12	10.0	–
900	1125	40	76	58	94	110	1000	5	968	28	39	1050	M36	948	914.0	20	12	10.0	–
1000	1255	42	84	64	100	120	1115	5	1072	28	42	1170	M39	1056	1016.0	22	12	10.0	–
1200	1485	48	98	76	–	130	1330	5	–	32	48	1390	M45	1260	1220.0	30	12	12.5	–
1400	1685	52	–	–	–	145	1530	5	–	36	48	1590	M45	1465	1420.0	30	12	14.2	–
1600	1930	58	–	–	–	160	1750	5	–	40	56	1820	M52	1668	1620.0	35	12	16.0	–
1800	2130	62	–	–	–	170	1950	5	–	44	56	2020	M52	1870	1820.0	35	15	17.5	–
2000	2435	66	–	–	–	190	2150	5	–	48	62	2230	M56	2072	2020.0	40	15	20.0	–

BS 4504 Flange Weight chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
BS 10 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

BS 4504 Flanges Manufacturing Process

ISO Certifed BS 4504 Slip On Flange, View Dimension of BS 4504 PN40 Threaded Flange, BS 4504 PN10 AWWA Flanges Manufacturer in India for high quality and better price.

BS 4504 Flanges Packing & Delivery

We Have 25+ Years Experience

The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all BS 4504 Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.

Application of BS 4504 Pipe Flanges

Oil & Gas

Chemical

Petrochemical

Marine

Refinery

Power Plant

Widest Range of BS 4504 Flanges in Mumbai, India

Alloy Steel BS 4504 Flanges	Copper Nickel BS 4504 Flanges at Best Price
Stainless Steel BS 4504 PN10 Flange	ASTM B564 Raised Faced BS 4504 PN6 Flanges
BS 4504 PN16 Weld Neck Flanges Distributor in Mumbai	BS 4504 Forged Flanges Exporter
Carbon Steel Raised Face BS 4504 PN10 Flange Stockist	Duplex Steel BS 4504 Flanges Supplier in Mumbai
BS 4504 PN6 Threaded Flange Exporter	BS 4504 Flange Pressure Ratings
Raised Face BS 4504 PN10 Flange Manufacturer	British Standard BS 4504 Forged Flange
BS 4504 Slip On Flange Stockist in India	BS 4504 PN10 Flanges
BS 4504 Lap Joint Flange Dimensions	BS 4504 Blind Flanges Dimensions
British BS 4504 Flanges	BS 4504 PN16 Flange Supplier in India
BS 4504 Large Diameter Flange	30 Inch BS BS 4504 PN6 Pipe Flange Dimensions
Carbon Steel BS 4504 Flange	BS 4504 PN16 RTJ Flange Supplier
BS 4504 PN6 Flange Manufacturer	Flat Face BS 4504 PN40 Flange Manufacturer
BS 4504 Screwed Flange	BS 4504 PN6 Flange Dealer in India
30 inch BS 4504 Flange Dealer	Raised Face BS 4504 Flanges Manufacturer
BS 4504 PN6 Flanges Supplier in Mumbai	Alloy Steel BS 4504 Flanges Manufacturer in India
BS 4504 PN6 Slip on Flanges Supplier in Mumbai	MS BS 4504 PN40 Flange
8 Inch BS 4504 PN16 Pipe Flanges	BS 4504 Pipe Flanges
18 inch BS 4504 Carbon Steel Flange	BS 4504 Flange Dimensions in mm
BS 4504 Male and Female Flange Supplier	Suppliers of BS 4504 Flange
BS 4504 Screwed Flange Dimensions	Duplex Steel BS 4504 Flanges
Nickel Alloy BS 4504 PN6 Flange	Mild Steel BS 4504 Flange
BS 4504 PN16 Socket weld Flanges	Titanium BS 4504 Flanges
ASME SA105N Raised Faced BS 4504 Flanges	18 inch Carbon Steel BS 4504 PN40 Flange
4 inch Stainless Steel BS 4504 PN10 Flange	British Standard BS 4504 PN16 Flanges Stockholder
BS 4504 Forged Flanges Stockist	British Standard BS 4504 PN40 Pipe Flanges
British Standard BS 4504 Pipe Flanges Wholesaler	BS 4504 PN6 Screwed Flanges Supplier
BS 4504 Pipe Flanges Supplier in Mumbai	BS 4504 Threaded Flange Dimensions

Searches Related to BS 4504 Flanges

bs 4504 flanges stockholder, british standard bs 4504 flanges supplier in mumbai, super duplex steel bs 4504 flanges, alloy 20 4504 pn6 flanges manufacturer, bs 4504 flange price list in india, smo 254 bs 4504 flange price list, bs 4504 slip on flange dimensions, bs 4504 pn16 flanges stockholder, biggest bs 4504 flange manufacturer in india, bs 4504 flange dimensions in mm, bs 4504 flange price in ahmedabad, incoloy bs 4504 welding neck flanges distributor, inconel bs 4504 standard flanges wholesaler, ms bs 4504 flange, bs 4504 pn16 flanges manufacturer in mumbai, bs 4504 pn40 flange price, british standard bs 4504 flange at best price in india, bs 4504 socket weld flange dimensions mm, bs 4504 flange dealer in gujarat, nickel alloy bs 4504 pn10 flange price list in india, bs 4504 flanges manufacturer in rajkot, monel bs 4504 flanges exporter, duplex steel bs 4504 threaded flanges supplier in india, bs 4504 flange pn10, bs 4504 flange price list in mumbai, carbon steel bs 4504 pn10 flange manufacturer, copper nickel bs 4504 manufacturer in mumbai, nickel alloy bs 4504 flange supplier in mumbai, bs 4504 pn6 flanges exporter, bs 4504 flanges dealer, alloy steel bs 4504 pn16 flanges supplier, 30 inch bs 4504 pn6 flange dimensions, price of stainless steel bs 4504 flanges, bs 4504 flanges traders, bs 4504 forged flange dimensions in mm, bs 4504 pn10 flange dimensions, bs 4504 flange dimensions, 1/2 bs 4504 pn6 flange, hastelloy bs 4504 flanges manufacturer in mumbai, bs 4504 pn6 flange dimensions, titanium bs 4504 flanges stockist in mumbai, bs 4504 flanges manufacturer in india, dimensions of bs 4504 pn40 flange, bs 4504 flange distribution, bs 4504 flanges stockist in mumbai, bs 4504 flange price list philippines, stainless steel bs 4504 pn6 flanges importer, british standard bs 4504 pn10 pipe flanges supplier in india, bs 4504 flanges manufacturers in india, bs 4504 pn16 flange dimensions, cost of bs 4504 flange, bs 4504 flanges dealer, bs 4504 pn40 flange weight chart in kg.

We Supply BS 4504 Flange in the following cities

Bengaluru	Mumbai	Chennai	Hyderabad	Kolkata	Pune
New Delhi	Ahmedabad	Jaipur	Surat	Salem	Gandhinagar
Bhiwandi	Tiruppur	Sivakasi	Jamnagar	Thiruvananthapuram	Rajahmundry
Bhubaneswar	Vijaywada	Firozabad	Bokaro Steel City	Rajkot	Bharuch
Panna	Raipur	Cochin	Ludhiana	Panipat	Durgapur
Peenya	Pimpri-Chinchwad	Channapatna	Kharagpur	Nashik	Bareilly
Varanasi	Haldia	Rourkela	Bangalore	Moradabad	Indore
Visakhapatnam	Trivandrum	Pithampur	Dibrugarh	Angul	Gwalior
Coimbatore	Kannur	Nagpur	Vadodara	Rudrapur	Noida
Agra	Bhagalpur	Jamshedpur	Bhilai	Lucknow	Kanpur
Thane	Bhopal	Sri City	Bareilly	Hosdurg	Pithampur
