ANSI B16.5 Loose Pipe Flange, Loose Plate Flange, MSS SP-44 Loose Flanges, Flat Face Loose Flanges, ANSI B16.5 Class 150 Loose Flange, ASME B16.5 Loose Flanges, Raised Face Loose Flanges, Loose Flanges Manufacturer in Mumbai, India.

Rajendra Industrial Corporation is a leading company that supplies and manufactures a comprehensive range of Stainless Steel and Carbon Steel Loose Flanges for a variety of industrial applications. Loose Flanges are employed with a stub-end that "inserts" into the flange's interior. The main advantage of this type of flange is that it can rotate after welding the pipe to the insert joint for better alignment of the fixing holes. The ability of lap joint flanges and their shaft to hold pressure is comparable to slip-on flanges. They are ineffective under conditions involving large or variable external forces. They are useful in a piping system that must be dismantled frequently for maintenance or to eliminate build-ups.

Monel Loose Flange, Titanium Loose Flanges, Nickel Alloy Loose Flanges, Stainless Steel Loose Flanges, Copper Nickel Loose Flanges, Best Price of Loose Flange, Inconel Loose Flanges, Carbon Steel Loose Flanges, Alloy Steel Loose Flanges, Hastelloy Loose Flanges, SS Loose Flanges Stockist, SDSS Loose Flanges, Duplex Steel Loose Flange Supplier in Mumbai, India.

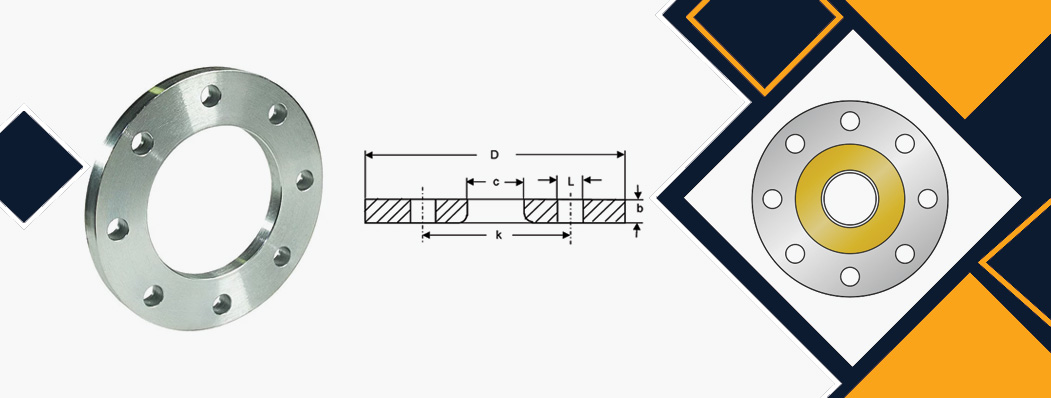

ANSI B16.5 Loose Flanges Manufacturer

Loose Flanges Supplier in Mumbai, Loose Flanges Stockist in Mumbai, Loose Flanges Supplier in India, Loose Flanges Manufacturer in Mumbai, Loose Flanges Manufacturer in India, Loose Flanges Stockist in India.

Applications of Loose Flanges
Oil and Gas Pipeline
Oil & Gas Industry
Water Supply Systems
General-purpose applications
Heat Exchangers

Carbon Steel Loose Flanges are offered in a variety of specifications on the market. Economies of scale, flexibility, precision design, robust construction, user-friendliness, corrosion resistance, and more are all features of Stainless Steel Loose Flanges. These Steel Loose Flanges, which are widely recognized for their superior strength and extended functional life, are available to our clients. As the tapers reach the same diameter, these Loose Flanges taper to provide closure between the threaded flange and the pipe. Rajendra Industrial Corporation is a reputable company that offers a wide range of high-quality Loose Flanges made from high-grade materials with the assurance of excellent dependability, stability, strength, and durability, which are in short supply in the Indian market. We specialize in offering and trading a wide range of high-quality Stainless Steel Loose Flanges that have been thoroughly tested for durability, accuracy, and precision construction.

Specification Chart Of Loose Flanges

Size 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production Technique Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF)
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Material Incoloy Loose Flange, Brass Loose Flange, SMO 254 Loose Flange, AISI 4130 Loose Flange, Alloy 20 Loose Flange, Stainless Steel Loose Flange, Duplex Steel Loose Flange, Copper Nickel Loose Flange, Titanium Loose Flange, Hastelloy Loose Flange, Inconel Loose Flange, Super Duplex Loose Flange, Monel Loose Flange, Nickel Alloy Loose Flange.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASME B16.5 Loose Flange Stockholder, PED Certified Loose Flanges Manufacturer, ANSI B16.5 Loose Flange Manufacturer in Mumbai, ANSI B 16.5 Class 300 Loose Flange, ASME B16.47 Series B Loose Flange Dealer in India.

Pipe Flange

Different Types of Loose Flanges

Stainless Steel Loose Flanges

Stainless Steel Loose Flanges

Alloy Steel Loose Flanges

Alloy Steel Loose Flanges

Carbon Steel Loose Flanges

Carbon Steel Loose Flanges

Duplex Steel Loose Flanges

Duplex Steel Loose Flanges

Super Duplex Steel Loose Flanges

Super Duplex Steel Loose Flanges

Nickel Alloy Loose Flanges

Nickel Alloy Loose Flanges

Monel Loose Flanges

Monel Loose Flanges

Hastelloy Loose Flanges

Hastelloy Loose Flanges

Inconel Loose Flanges

Inconel Loose Flanges

Titanium Loose Flanges

Titanium Loose Flanges

Alloy 20 Loose Flanges

Alloy 20 Loose Flanges

Copper Nickel Loose Flanges

Copper Nickel Loose Flanges

Manufacturer of ANSI B16.5 Loose Flange and Loose Pipe Flanges in ASME B16.5 Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.5

Click On Below Links For Loose Flanges Standard

View Price List of Loose Flange

Price list of ASME B16.47 Series A Loose Flange US $0.5-1000 / Piece (FOB Price)
ANSI B16.5 Class 150 Loose Flanges Price in India US $300-500 / Ton (FOB Price)
Price list of Loose Flanges US $1-900 / Piece (FOB Price)
Stainless Steel Loose Flanges Price US $0.5-1000 / Piece (FOB Price)
Loose Flange Price List US $1-300 / Piece (FOB Price)
Loose Flange Price Per Piece in India US $1-800 / Piece (FOB Price)
ASME B16.5 Class 300 Raised Faced Loose Flanges Price US $15-900 / Piece (FOB Price)
Price of Flat Faced Loose Flanges EN 1092-1 Type 02 US $20-1500 / Piece (FOB Price)
EN 1092-2 PN16 Loose Flange Price List US $26-2000 / Piece (FOB Price)
AWWA C207 Class d Loose Flange Price US $18-1800 / Piece (FOB Price)

Also view the ASME B16.5 Loose Flange Price List, Buy Large or Small Quantity ANSI B16.5 Loose Flanges at Factory Price, Attractive Price Offer of Raised Faced Loose Flanges Per Kg, Buy Loose Flange at an affordable Price in India.

Flange Factory

Call us or send us an email

We can supply BS 4504 PN10 Loose Flanges with customized Class / Pressure and sizes, view EN 1092-1 Type 02 Class 150 Loose Flange Price.


Loose Flange Dimensions

Loose Flange Dimensions

Class 150 Loose Flange Dimensions

Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(B)
Dia.
(A)
Height
(H)
Nbr Holes Dia.
(C)
1/2" 90 11.2 30 22.9 16 4 15.87 60.3
3/4" 100 12.7 38 28.2 16 4 15.87 69.9
1" 110 14.3 49 34.9 17 4 15.87 79.4
1 1/4" 115 15.9 59 43.7 21 4 15.87 88.9
1 1/2" 125 17.5 65 50.0 22 4 15.87 98.4
2" 150 20.7 78 62.5 25 4 19.05 120.7
2 1/2" 180 22.3 90 75.4 29 4 19.05 139.7
3" 190 23.9 108 91.4 30 4 19.05 152.4
3 1/2" 215 23.9 122 104.1 32 8 19.05 177.8
4" 230 23.9 135 116.8 33 8 19.05 190.5
5" 255 23.9 164 144.4 36 8 22.22 215.9
6" 280 25.4 192 171.4 40 8 22.22 241.3
8" 345 28.6 246 222.2 44 8 22.22 298.5
10" 405 30.2 305 277.4 49 12 25.40 362.0
12" 485 31.8 365 328.2 56 12 25.40 431.8
14" 535 35.0 400 360.2 79 12 28.57 476.3
16" 595 36.6 457 411.2 87 16 28.57 539.8
18" 635 39.7 505 462.3 97 16 31.75 577.9
20" 700 42.9 559 514.4 103 20 31.75 635.0
24" 815 47.7 663 616.0 111 20 34.92 749.3

Class 300 Loose Flange Dimensions

Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(B)
Dia.
(A)
Height
(H)
Nbr Holes Dia.
(C)
1/2" 95 14.3 38 22.9 22 4 15.87 66.7
3/4" 115 15.9 48 28.2 25 4 19.05 82.6
1" 125 17.5 54 34.9 27 4 19.05 88.9
1 1/4" 135 19.1 64 43.7 27 4 19.05 98.4
1 1/2" 155 20.7 70 50.0 30 4 22.22 114.3
2" 165 22.3 84 62.5 33 8 19.05 127.0
2 1/2" 190 25.4 100 75.4 38 8 22.22 149.2
3" 210 28.6 117 91.4 43 8 22.22 168.3
3 1/2" 230 30.2 133 104.1 44 8 22.22 184.2
4" 255 31.8 146 116.8 48 8 22.22 200.0
5" 280 35.0 178 144.4 51 8 22.22 235.0
6" 320 36.6 206 171.4 52 12 22.22 269.9
8" 380 41.3 260 222.2 62 12 25.40 330.2
10" 445 47.7 321 277.4 95 16 28.57 387.4
12" 520 50.8 375 328.2 102 16 31.75 450.8
14" 585 54.0 425 360.2 111 20 31.75 514.4
16" 650 57.2 483 411.2 121 20 34.29 571.5
18" 710 60.4 533 462.3 130 24 34.29 628.6
20" 775 63.5 587 514.4 140 24 34.29 685.8
24" 915 69.9 702 616.0 152 24 41.27 812.8

Class 600 Loose Flange Dimensions

Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(B)
Dia.
(A)
Height
(H)
Nbr Holes Dia.
(C)
1/2" 95 14.3 38 23.6 22 4 15.87 66.7
3/4" 115 15.9 48 29.0 25 4 19.05 82.6
1" 125 17.5 54 35.8 27 4 19.05 88.9
1 1/4" 135 20.7 64 44.4 29 4 19.05 98.4
1 1/2" 155 22.3 70 50.6 32 4 22.22 114.3
2" 165 25.4 84 63.5 37 8 19.05 127.0
2 1/2" 190 28.6 100 76.2 41 8 22.22 149.2
3" 210 31.8 117 92.2 46 8 22.22 168.3
3 1/2" 230 35.0 133 104.9 49 8 25.40 184.2
4" 275 38.1 152 117.6 54 8 25.40 215.9
5" 330 44.5 189 144.4 60 8 28.57 266.7
6" 355 47.7 222 171.4 67 12 28.57 292.1
8" 420 55.6 273 222.2 76 12 31.75 349.2
10" 510 63.5 343 276.2 111 16 34.92 431.8
12" 560 66.7 400 328.6 117 20 34.92 489.0
14" 605 69.9 432 360.4 127 20 38.10 527.0
16" 685 76.2 495 411.2 140 20 41.27 603.2
18" 745 82.6 546 462.0 152 20 44.45 6654.0
20" 815 88.9 610 512.8 165 24 44.45 723.9
24" 940 101.6 718 614.4 184 24 50.80 838.2

DIN 2642 PN10 Loose Flanges Dimensions

Pipe Flange Screws Weight
(7,85 Kg/dm3)
Rated
Diameter
d1 D d6 b k e Holes Thread d2 Kg
ISO
Series 1
DIN
Series 2
15 20 95 22 14 65 3 4 M 12 14 0,689
21,3 24
20 25 105 28 14 75 3 4 M 12 14 0,806
26,9 30
25 30 115 33 16 85 4 4 M 12 14 1,11
33,7 36
32 38 140 42 16 100 4 4 M 16 18 1,64
42,4 46
40 44,5 150 50 16 110 4 4 M 16 18 1,86
48,3 54
50 57 165 62 16 125 5 4 M 16 18 2,2
60,3 65
65 76,1 185 81 16 145 5 4 M 16 18 2,62
80 88,9 200 94 18 160 5 8 M 16 18 3,32
100 108 220 113 18 180 5 8 M 16 18 3,67
114,3 119
125 133 250 138 18 210 5 8 M 16 18 4,54
139,7 145
150 159 285 164 18 240 5 8 M 20 22 5,6
168,3 173
200 219,1 340 225 20 295 5 8 M 20 22 7,46
250 267 395 273 22 350 5 12 M 20 22 10,3
273 279
300 323,9 445 329 26 400 5 12 M 20 22 14
350 355,6 505 362 28 460 6 16 M 20 22 18,5
368 374
400 406,4 565 413 32 515 6 16 M 24 26 25
419 426
(450) 457 615 467 38 565 6 20 M 24 26 30,6
500 508 670 517 38 620 6 20 M 24 26 37
600 610 780 618 44 725 7 20 M 27 30 56,3
700 711 895 721 50 840 7 24 M 27 30 80,4
800 813 1015 824 56 950 7 24 M 30 33 113,2

ASME B16.5 Loose Flanges Weight Chart

Pipe Size 150 # 300 # 600 # 900 # 1500 # 2500 #
WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD
1/2" 2 1 1 2 1 1 2 2 2 SEE 1500 # WEIGHTS 5 4 4 7 7 7
3/4" 2 2 2 3 3 3 4 3 3 SEE 1500 # WEIGHTS 6 5 6 8 8 8
1" 3 2 2 4 3 3 4 4 4 SEE 1500 # WEIGHTS 9 8 8 12 11 11
1 1/2" 4 3 3 7 6 6 8 7 8 SEE 1500 # WEIGHTS 13 12 13 25 22 23
2" 6 5 5 9 7 8 12 9 10 SEE 1500 # WEIGHTS 25 25 25 42 37 39
2 1/2" 8 7 7 12 10 12 18 13 15 SEE 1500 # WEIGHTS 36 36 35 52 55 56
3" 10 8 9 15 13 16 23 16 20 31 26 29 48 48 48 94 83 86
4" 15 13 17 25 22 27 42 37 41 53 53 54 73 73 73 145 125 130
5" 19 15 20 32 28 35 68 63 68 86 83 87 130 130 140 245 210 225
6" 24 19 26 42 39 50 81 80 86 110 110 115 165 165 160 380 325 345
8" 39 30 45 67 58 81 120 115 140 175 170 200 275 260 300 580 485 530
10" 52 43 70 91 81 124 190 170 230 260 245 290 455 435 510 1075 930 1025
12" 80 64 110 140 115 185 225 200 295 325 325 415 690 580 690 1525 1100 1300
14" 110 90 140 180 165 250 280 230 355 400 400 520 940 NA 975 NA NA NA
16" 140 98 180 250 190 295 390 330 495 495 425 600 1250 NA 1300 NA NA NA
18" 150 130 220 320 250 395 475 400 630 680 600 850 1625 NA 1750 NA NA NA
20" 180 165 285 400 315 505 590 510 810 830 730 1075 2050 NA 2225 NA NA NA
22" 225 185 355 465 370 640 720 590 1000 NA NA NA NA NA NA NA NA NA
24" 260 220 430 580 475 790 830 730 1250 1500 1400 2025 3325 NA 3625 NA NA NA

ANSI B16.5 Loose Flanges Manufacturing Process

Loose Flanges Manufacturing Process

View Dimension of PN16 Loose Flange, ISO Certifed BS10 Table D Loose Flange, AWWA C207 Class D Loose Flange Manufacturer in India for high quality and better price.


ASME B16.5 Loose Flanges Packing & Delivery

We Have 25+ Years Experience
Packing & Delivery

The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all Loose Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.


Application of Loose Pipe Flanges

Oil & Gas
Oil & Gas

Oil & Gas

Chemical
Chemical

Chemical

Petrochemical
Petrochemical

Petrochemical

Marine
Marine

Marine

Refinery
Refinery

Refinery

Power Plant
Power Plant

Power Plant

Widest Range of Loose Flanges in Mumbai, India

Nickel Alloy Loose Plate Flange Mild Steel Loose Flange
DIN 2503 PN25 Loose Flanges Supplier Suppliers of DIN 2543 PN16 Loose Flanges
4 inch Stainless Steel Loose Flange Loose Flanges Stockholder
Alloy 20 Loose Flanges Copper Nickel Loose Flanges at Best Price
JIS 5K Loose Flange Dimensions 30 Inch Loose Flange Dimensions
ASME B16.5 Loose Flange Loose Flange Supplier in India
Class 1500 Loose Flanges Distributor in Mumbai ASME B16.5 Loose Flanges Exporter
JIS 10K Loose Flange Supplier in Mumbai MS Loose Flange Table E
ASME B16.5 Class 300 Loose Flanges Stockist Titanium Flat Faced Loose Flanges
ASME SA105N Raised Faced Loose Flanges 18 inch Loose Class 150 Carbon Steel Flange
EN 1092-2 PN16 Loose Flange Stockist in India AWWA C207 Class D Loose Flange
ANSI B16.5 Class 150 Loose Flange ASME B16.47 Series B Loose Flanges Dealer in India
Carbon Steel Loose Flat Face Pipe Flange ANSI #150 RTJ Loose Flange Supplier
8 Inch Loose Flanges ANSI B16.5 150 LBS Loose Flanges
ASME B16.5 Loose Flange Manufacturer 150# Flat Face Loose Flange Manufacturer
JIS 16K Loose Flange Dealer DIN 86029 PN10 Loose Flange Manufacturer
Duplex Steel Loose Flanges Supplier in Mumbai SS Loose Flange 150LBS
ASME B16.5 Class 600 Raised Faced Loose Flanges Loose Flange Exporter
ASME B16.47 Series A Loose Flange Manufacturer JIS 10K Loose Flanges
JIS B2220 10K Loose Flange PN 10 Male Loose Flanges
BS 4504 PN10 Loose Flanges Supplier in Mumbai Alloy Steel Loose Flanges Manufacturer in India
JIS B2220 5K 10K 16K Loose Flanges DIN Standard PN25 Loose Flanges
18 inch Loose Class 150 Carbon Steel Flange AWWA C207 Loose Flanges
Stainless Steel Loose Flange ASTM B564 Raised Faced Loose Flanges
Table E Loose Pipe Flanges Supplier in Mumbai Class 1500 Loose Flange Dimensions
PN16 Loose Flange Dimensions Table D Loose Flange Dimensions
Raised Face Loose Flange Manufacturer ANSI B16.5 Forged Loose Flange
Class 900 Loose Flange Dimensions Duplex Steel Loose Flanges
EN 1092-2 Female Loose Flanges Carbon Steel Raised Face Loose Flange Stockist
ANSI B16.5 Loose Flanges Wholesaler EN 1092-1 Loose Flanges Supplier

Searches Related to ASME B16.5 Loose Flanges

ms loose flange, jis 5k loose flange dimensions, nickel alloy loose flange supplier in mumbai, loose flanges manufacturers in india, alloy steel loose flanges supplier, loose flanges dealer, table e loose flange dimensions, monel loose flanges exporter, loose flange price in ahmedabad, loose flange dimensions in mm, table d loose flange dimensions, 30 inch loose flange dimensions, 150 lb loose flange dimensions, titanium loose flanges stockist in mumbai, class 900# loose flanges stock, loose flange dimensions 300#, loose flange price list philippines, inconel loose flanges wholesaler, class 600 loose flange dimensions, loose flange 150 lbs dimensions, loose flange dealer in gujarat, class 900 loose flange dimensions, copper nickel loose manufacturer in mumbai, loose flange ansi b16.5 class 150, loose flanges manufacturer in mumbai, pn16 loose flange dimensions, loose flanges dealer, loose flanges stockist in mumbai, loose flange jis 5k, hastelloy loose flanges manufacturer in mumbai, class 1500# loose flanges, super duplex steel loose flanges, loose flange thickness, biggest loose flange manufacturer in india, loose flange dn80 pn10, loose flange din 2576 pn16, asme 16.5 loose flanges stockholder, asme b16.47 loose flange dimensions, dimensions of loose flange, incoloy loose flanges distributor, loose flange distribution, loose flange price list in mumbai, bs10 table d loose flange, loose flanges supplier in mumbai, alloy 20 loose flanges manufacturer, class 600# loose flanges exporter, awwa c207 class d loose flange, loose flanges stockholder, loose pipe flanges supplier in india, ansi b 16.5 loose flange dimensions, 1/2 loose flange, loose flange dimensions mm, loose flange weight chart in kg, loose flange price, loose flanges manufacturer in rajkot, asme b16.5 ss loose flange, loose flanges manufacturer in india, loose flanges traders, loose flange at best price in india, nickel alloy loose flange price list in india, smo 254 loose flange price list, duplex steel loose flanges supplier in india, price of stainless steel loose flanges, en 1092-1 loose flange, carbon steel loose flange manufacturer, cost of loose flange, loose flange din 2576 pn10, loose flange price list in india, stainless steel loose flanges importer.

We Supply ANSI / ASME B16.5 Loose Flange in the following cities

Bengaluru Mumbai Chennai Hyderabad Kolkata Pune
New Delhi Ahmedabad Jaipur Surat Salem Gandhinagar
Bhiwandi Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhubaneswar Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Visakhapatnam Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Noida
Agra Bhagalpur Jamshedpur Bhilai Lucknow Kanpur
Thane Bhopal Sri City Bareilly Hosdurg Pithampur
RIC

Rajendra Industrial Corporation is a highly acclaimed manufacturer, supplier and exporter of Stainless Steel Flanges, Carbon Steel Flanges and Alloy Steel Flanges like Slipon Flanges, BLRF Flanges, Weldneck Flanges, Socket Weld Flanges etc.

+91 22-23857169

sales@rajendrafittings.com

Plot No. 199/6 & L605, GIDC, Umbergaon- 396 171 (Gujarat) India
