Manufacturer of ANSI B16.5 1500 LBS Flange, ANSI B16.5 Class 1500 Flange Dimensions In MM, Class 1500 Flange Pressure Rating, 8 Inch 1500 Lb Flange Dimensions.
Rajendra Industrial Corporation is a leading manufacturer, supplier, and stockist of 1500 LBS Flanges. In nominal diameters, ANSI B16 5 Class 1500 Flange Dimensions vary from 12 inches to 24 inches. The ANSI B16.5 standards govern the wall thicknesses, exterior diameters, base and hub sizes, and so forth. The pressure classes span from 150 to 2500, indicating pressure capabilities ranging from 150 to 2500lbs. The Class 1500 Lb Flange Dimensions allow the flanges to withstand 1500 pounds of force. This is one of the flanges that can withstand tremendous pressure. Flanges are classified into several categories. Slip on flanges, blind flanges, weld neck flanges, and socket weld flanges are all employed in different applications.
Table Of Contents
A pipeline is closed using the 1500 Lb Blind Flange Dimensions. Blind flanges can also be made in a variety of forms. They are employed in high-frequency maintenance systems to open and close pipes as required. Blind flanges are sometimes used to permanently seal a pipeline. The dimensions of ANSI 1500 lb flanges change according to the kind of face. The raised face, flat face, and ring type joint flanges all have distinct diameters for the raised face and ring. Our skilled team supervises these procedures, keeping an eye on minute details and correcting them as soon as possible. The prices we provide are reasonable and within your budget. Packaging is done in tight, sealed containers that are delivered on time through reputable suppliers.
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations Class 1500 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturer of ANSI B16.5 1500 LBS Flange, ANSI B16.5 Class 1500 Flange Dimensions In MM, Class 1500 Flange Pressure Rating, 8 Inch 1500 Lb Flange Dimensions.
| Price list of Class 1500 Weld Neck Flange | US $0.5-1000 / Piece (FOB Price) |
| ANSI B16.5 Class 1500 Flanges Price in India | US $300-500 / Ton (FOB Price) |
| Price list of ANSI B16.5 1500 LBS Forged Flanges | US $1-900 / Piece (FOB Price) |
| Stainless Steel 1500 LBS Flanges Price | US $0.5-1000 / Piece (FOB Price) |
| ASME B16.5 1500# Flange Price List | US $1-1500 / Piece (FOB Price) |
| AWWA Class 1500 Flange Price Per Piece in India | US $1-800 / Piece (FOB Price) |
| ANSI B16.5 Class 1500 Slip on Flanges Price | US $15-900 / Piece (FOB Price) |
| Price of Carbon Steel ANSI B16.5 Class 1500 Flanges | US $20-1500 / Piece (FOB Price) |
| Class 1500 Pipe Flanges EN Standards Price List | US $26-2000 / Piece (FOB Price) |
| Class 1500 Lap Joint langes Price | US $18-1800 / Piece (FOB Price) |
We can supply ANSI B16.5 Class 1500 Forged Flanges with customized Class / Pressure and sizes, view Class 1500 Raised Face Flanges Price.

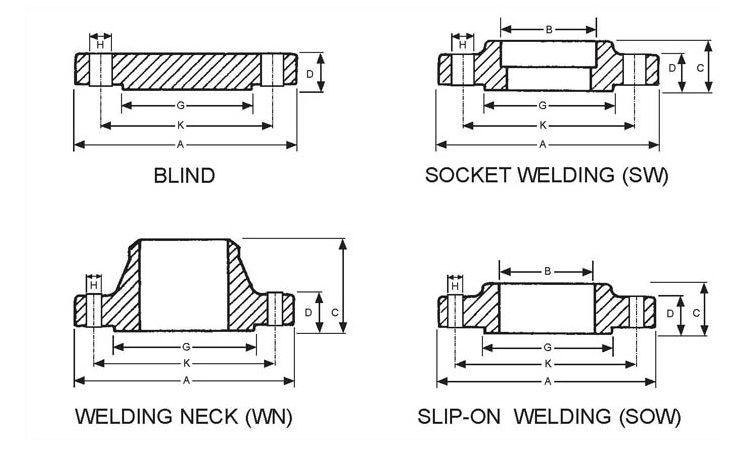

| Normal pipe size |
Outside dia. of flange |
Minimum thickness of flange |
Overall Length | Bolt Circle |
No. and Size of Holes |
O.D. of raised face |
|||
| Welding neck |
Slip-on & socket welding |
Lap Joint |
|||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 12.1 | 22.3 | 60.3 | 31.8 | 31.8 | 82.5 | 4 | 22 | 35 |
| 3/4 | 130 | 25.4 | 69.8 | 34.9 | 34.9 | 89.0 | 4 | 22 | 43 |
| 1 | 149 | 28.6 | 73.0 | 41.3 | 41.3 | 101.5 | 4 | 25 | 51 |
| 1-1/4 | 159 | 28.6 | 73.0 | 41.3 | 41.3 | 111.0 | 4 | 25 | 64 |
| 1-1/2 | 178 | 31.8 | 82.6 | 44.4 | 44.4 | 124.0 | 4 | 29 | 73 |
| 2 | 216 | 38.1 | 101.6 | 57.2 | 57.2 | 165.0 | 8 | 25 | 92 |
| 2-1/2 | 244 | 41.3 | 104.8 | 63.5 | 63.5 | 190.5 | 8 | 29 | 105 |
| 3 | 267 | 47.7 | 117.5 | 73.0 | 73.0 | 203.0 | 8 | 32 | 127 |
| 3-1/2 | |||||||||
| 4 | 311 | 54.0 | 123.8 | 90.5 | 90.5 | 241.5 | 8 | 35 | 157 |
| 5 | 375 | 73.1 | 155.5 | 104.8 | 104.8 | 292.0 | 8 | 41 | 186 |
| 6 | 394 | 82.6 | 171.4 | 119.1 | 119.1 | 317.5 | 12 | 38 | 216 |
| 8 | 483 | 92.1 | 212.7 | 142.9 | 142.9 | 393.5 | 12 | 45 | 270 |
| 10 | 584 | 108.0 | 254.0 | 158.8 | 177.8 | 482.5 | 12 | 51 | 324 |
| 12 | 673 | 123.9 | 282.9 | 181.0 | 219.1 | 571.5 | 16 | 54 | 381 |
| 14 | 749 | 133.4 | 298.4 | 241.3 | 635.0 | 16 | 60 | 413 | |
| 16 | 826 | 146.1 | 311.2 | 260.4 | 705.0 | 16 | 51 | 470 | |
| 18 | 914 | 162.0 | 327.0 | - | 276.2 | 474.5 | 16 | 73 | 538 |
| 20 | 984 | 117.8 | 355.4 | 292.1 | 832.0 | 16 | 80 | 584 | |
| 24 | 1168 | 203.2 | 406.4 | 330.2 | 990.5 | 16 | 92 | 692 | |
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
| 1500 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 | |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 | |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
| 5 | 15 | 15 | 15 | 15 | 20 | 21 | |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 | |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 | |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 | |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 | |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 | |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 | |
| 18 | 130 | 130 | 130 | 160 | 220 | 165 | |
| 20 | 165 | 165 | 165 | 195 | 285 | 197 | |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 | |
| 24 | 220 | 220 | 220 | 275 | 430 | 268 |
The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all ANSI B16.5 Class 1500 Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.
