Manufacturer of ANSI B16.5 300 LBS Flange, ANSI B16.5 Class 300 Flange Dimensions In MM, Class 300 Flange Pressure Rating, 8 Inch 300 Lb Flange Dimensions.
While there are other manufacturers on the market who provide high-quality ANSI B16.5 300 LBS Flanges, Rajendra Industrial Corporation is the finest option. They are one of the most well-known and respected producers, selling their produced Flanges all over the world. Their 300 LBS Flanges are well-known for their outstanding qualities and features such as high tensile strength, corrosion resistance, and longevity. Generally, Steel pipe 300 LB flange gasket dimensions are classified as per ASME B165 standard, but different names must be used to indicate a Pressure Class. For example, 300 LB, 300 LB'S, 300#, or Class 300 LB blind flange dimensions, all are the same.
Table Of Contents
A flange is a piece of metal utilized to join two pipes, valves, and pumps in a piping system. It is employed for a variety of purposes, including piping systems and other industrial sectors. The specifications of the flange are specified by 300 LB flange dimensions, and it is constructed appropriately. The 300 LB Pipe Flange dimensions pressure rating varies depending on the material used such as A105, stainless, nickel alloy, etc. Forged type, Threaded type, Screwed type, and Plate type are the four major varieties of 300 LB flange measurements. A Ring Joint, a Gasket, and 28 300 LB flange specifications Bolts are supplied as assisting material for the 300 LB raised face flange proportions.
Class 300 LB orifice flange dimensions are used to connect pipes and tubes in sectors such as construction, petroleum, power, chemical, gas, metallurgy, and shipbuilding. All of these Class 300 Pipe Flanges have been thoroughly tested and inspected by manufacturers and inspection agencies. Different test certificates prove the high quality of these products. This product is packaged in high-quality wooden cases, boxes, and waterproof bags to prevent rust and damage until the last stage of production. These Flanges are also made in the custom form as per clients’ needs.
Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
---|---|
Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Main Types | Threaded / Forged / Plate /Screwed |
Flange supporting material | Ring Joint, Gasket, Flange Bolts |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Most Common Types |
|
Production technique |
|
Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations Class 300 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
Origin | Indian / West Europe / Japan / USA / Korean |
Specialized Manufacturer of |
|
Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Manufacturer of ANSI B16.5 300 LBS Flange, ANSI B16.5 Class 300 Flange Dimensions In MM, Class 300 Flange Pressure Rating, 8 Inch 300 Lb Flange Dimensions.
Price list of Class 300 Weld Neck Flange | US $0.5-1000 / Piece (FOB Price) |
ANSI B16.5 Class 300 Flanges Price in India | US $300-500 / Ton (FOB Price) |
Price list of ANSI B16.5 300 LBS Forged Flanges | US $1-900 / Piece (FOB Price) |
Stainless Steel 300 LBS Flanges Price | US $0.5-1000 / Piece (FOB Price) |
ASME B16.5 300# Flange Price List | US $1-300 / Piece (FOB Price) |
AWWA Class 300 Flange Price Per Piece in India | US $1-800 / Piece (FOB Price) |
ANSI B16.5 300 LBS Slip on Flanges Price | US $15-900 / Piece (FOB Price) |
Price of Carbon Steel ANSI B16.5 Class 300 Flanges | US $20-1500 / Piece (FOB Price) |
Class 300 Pipe Flanges EN Standards Price List | US $26-2000 / Piece (FOB Price) |
Class 300 Lap Joint langes Price | US $18-1800 / Piece (FOB Price) |
We can supply ANSI B16.5 Class 300 Forged Flanges with customized Class / Pressure and sizes, view Class 300 Raised Face Flanges Price.

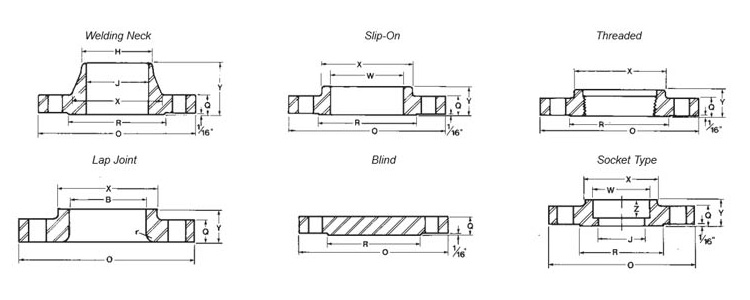

Normal pipe size |
Outside dia. of flange |
Minimum thickness of flange |
Overall Length | Bolt Circle |
No. and Size of Holes |
O.D. of raised face |
|||
Welding neck |
Slip-on & socket welding |
Lap Joint | |||||||
O | Q | Y | Diam. | No. | dia. | R | |||
1/2 | 95 | 14.3 | 52.4 | 22.2 | 22.2 | 666.5 | 4 | 15 | 35 |
3/4 | 117 | 15.9 | 57.2 | 25.4 | 25.4 | 82.4 | 4 | 19 | 43 |
1 | 124 | 17.5 | 61.9 | 27.0 | 27.0 | 89.0 | 4 | 19 | 51 |
1-1/4 | 133 | 19.1 | 65.1 | 27.0 | 27.0 | 98.5 | 4 | 19 | 64 |
1-1/2 | 156 | 20.7 | 68.3 | 30.2 | 30.2 | 114.5 | 4 | 22 | 73 |
2 | 165 | 22.3 | 69.8 | 33.3 | 33.3 | 127.0 | 8 | 19 | 92 |
2-1/2 | 190 | 25.4 | 76.2 | 38.1 | 38.1 | 149.0 | 8 | 22 | 105 |
3 | 210 | 28.6 | 79.4 | 42.9 | 42.9 | 168.0 | 8 | 22 | 127 |
4 | 254 | 318 | 85.7 | 47.6 | 47.6 | 200.0 | 8 | 22 | 157 |
5 | 279 | 35.0 | 98.4 | 50.8 | 50.8 | 235.0 | 8 | 22 | 186 |
6 | 313 | 36.6 | 98.4 | 52.4 | 52.4 | 270.0 | 12 | 22 | 216 |
6 | 381 | 413 | 111.1 | 61.9 | 91.9 | 330.0 | 12 | 25 | 270 |
10 | 444 | 47.7 | 117.5 | 66.7 | 95.3 | 387.5 | 16 | 29 | 324 |
12 | 521 | 50.8 | 130.2 | 73.0 | 101.6 | 451.0 | 16 | 32 | 381 |
14 | 584 | 54.0 | 142.9 | 76.2 | 111.1 | 514.5 | 20 | 32 | 413 |
16 | 648 | 57.2 | 146.0 | 82.6 | 120.7 | 571.5 | 20 | 35 | 470 |
18 | 711 | 60.4 | 158.8 | 88.9 | 130.2 | 628.5 | 24 | 35 | 533 |
20 | 775 | 63.5 | 161.9 | 95.2 | 139.7 | 686.0 | 24 | 35 | 584 |
24 | 914 | 69.9 | 168.3 | 106.4 | 152.4 | 843.0 | 24 | 41 | 692 |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
300 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
1 | 2 | 2 | 2 | 2 | 2 | 3 | |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
2 | 5 | 5 | 5 | 5 | 5 | 6 | |
2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
5 | 15 | 15 | 15 | 15 | 20 | 21 | |
6 | 19 | 19 | 19 | 19 | 27 | 26 | |
8 | 30 | 30 | 30 | 30 | 47 | 42 | |
10 | 43 | 43 | 43 | 43 | 70 | 54 | |
12 | 64 | 64 | 64 | 64 | 123 | 88 | |
14 | 90 | 90 | 90 | 105 | 140 | 114 | |
16 | 106 | 98 | 98 | 140 | 180 | 140 | |
18 | 130 | 130 | 130 | 160 | 220 | 165 | |
20 | 165 | 165 | 165 | 195 | 285 | 197 | |
22 | 185 | 185 | 185 | 245 | 355 | 225 | |
24 | 220 | 220 | 220 | 275 | 430 | 268 |
The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all ANSI B16.5 Class 300 Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.
