Manufacturer of ANSI B16.47 Series A Class 400 Flange, ANSI B16.47 Series A Flange Dimensions In MM, ANSI B16.47 Series A Class 900 Flange Pressure Rating, 8 Inch ANSI B16.47 Series A Flange Dimensions.

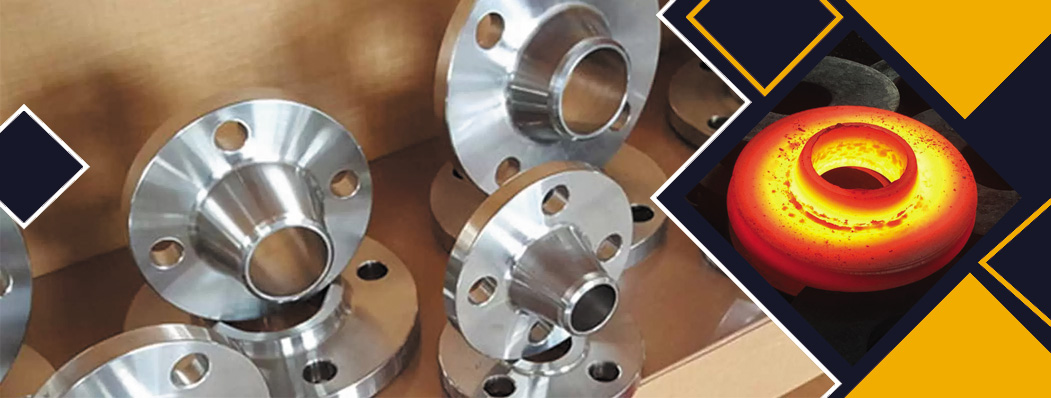

Based in India, Rajendra Industrial Corporation is a reputable manufacturer, supplier, and exporter of ANSI B16.47 Series A Flanges. The Flange quality has greatly improved thanks to the use of cutting-edge technology and sophisticated equipment. We use our skill sets and knowledge to create excellent quality items that are long-lasting in shifting marketplaces.
Table Of Contents
ANSI B16.47 Series A Pipe Flanges is a standard for large diameter steel pipe flanges with NPS ratings ranging from 26 to 60. The most recent version includes measurements and ratings including both metric and inch units. Apart from nickel alloys, the elements included by these standards are similar to those covered by ANSI B16.47 Series A, which indicates they use the same pressure-temperature chart for flange choice of materials. Each of the flanges is tested, to check its efficiency and then packed and shipped.
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturer of ANSI B16.47 Series A Class 400 Flange, ANSI B16.47 Series A Flange Dimensions In MM, ANSI B16.47 Series A Class 900 Flange Pressure Rating, 8 Inch ANSI B16.47 Series A Flange Dimensions.
| Price list of ANSI B16.47 Series A Weld Neck Flange | US $0.5-1000 / Piece (FOB Price) |
| ANSI B16.47 Series A Flanges Price in India | US $300-500 / Ton (FOB Price) |
| Price list of ANSI B16.47 Series A 150 LBS Forged Flanges | US $1-900 / Piece (FOB Price) |
| Stainless Steel ANSI B16.47 Series A 300 LBS Flanges Price | US $0.5-1000 / Piece (FOB Price) |
| ANSI B16.47 Series A 400# Flange Price List | US $1-300 / Piece (FOB Price) |
| ANSI B16.47 Series A Flange Price Per Piece in India | US $1-800 / Piece (FOB Price) |
| ANSI B16.47 Series A Slip on Flanges Price | US $15-900 / Piece (FOB Price) |
| Price of Carbon Steel ANSI B16.47 Series A Flanges | US $20-1500 / Piece (FOB Price) |
| ANSI B16.47 Series A Class 900 Pipe Flanges EN Standards Price List | US $26-2000 / Piece (FOB Price) |
| ANSI B16.47 Series A Class 1500 Lap Joint langes Price | US $18-1800 / Piece (FOB Price) |
We can supply ANSI B16.47 Series A Forged Flanges with customized Class / Pressure and sizes, view ANSI B16.47 Raised Face Flanges Price.
ASME B16.47 Series A Slip On Flange Class 150 LBS Dimensions
|
|||||||||
NPS |
A |
B |
I |
Holes |
C |
D |
F |
G |
Weight |
22″ |
750 |
563.6 |
35 |
20 |
46 |
80 |
610 |
641 |
72.66 |
26″ |
870 |
665.2 |
35 |
24 |
68.5 |
90 |
724 |
749 |
120.47 |
28″ |
925 |
716 |
35 |
28 |
71.5 |
95 |
781 |
800 |
136.16 |
30″ |
985 |
766.8 |
35 |
28 |
74.5 |
100 |
832 |
857 |
161.04 |
32″ |
1060 |
817.6 |
41 |
28 |
81 |
106 |
889 |
914 |
205.07 |
34″ |
1110 |
868.4 |
41 |
32 |
82.5 |
110 |
940 |
965 |
216.76 |
36″ |
1170 |
919.2 |
41 |
32 |
90.5 |
120 |
997 |
1022 |
265 |
38″ |
1240 |
970 |
41 |
32 |
87.4 |
120 |
1060 |
1073 |
297.15 |
40″ |
1290 |
1020 |
41 |
36 |
90.5 |
125 |
1111 |
1124 |
319.65 |
42″ |
1345 |
1071.6 |
41 |
36 |
97 |
130 |
1168 |
1194 |
363.84 |
44″ |
1405 |
1122.4 |
41 |
40 |
102 |
136 |
1219 |
1245 |
414.1 |
46″ |
1455 |
1173.2 |
41 |
40 |
103 |
144 |
1270 |
1295 |
437 |
48″ |
1510 |
1224 |
41 |
44 |
108 |
150 |
1327 |
1359 |
484.52 |
50″ |
1570 |
1274.8 |
48 |
44 |
111 |
160 |
1378 |
1410 |
521.23 |
52″ |
1625 |
1325.6 |
48 |
44 |
116 |
170 |
1435 |
1460 |
581.51 |
54″ |
1685 |
1376.4 |
48 |
44 |
121 |
178 |
1492 |
1511 |
652.63 |
56″ |
1745 |
1427.2 |
48 |
48 |
124 |
188 |
1540 |
1575 |
713.31 |
58″ |
1805 |
1478 |
48 |
129 |
195 |
1590 |
1626 |
799.81 |
|
60″ |
1855 |
1528.8 |
48 |
52 |
132 |
200 |
1657 |
1676 |
836.15 |
ASME B16.47 Series A Slip On Flange Class 300 LBS Dimensions |
|||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 22" | 840 | 563.6 | 41 | 24 | 66.5 | 100 | 640 | 641 | 159 |
| 26" | 970 | 665.2 | 44 | 28 | 79.5 | 130 | 720 | 749 | 238.15 |
| 28" | 1035 | 716 | 44 | 28 | 85.5 | 147 | 775 | 800 | 295.5 |
| 30" | 1090 | 766.8 | 48 | 28 | 92 | 160 | 825 | 857 | 338.8 |
| 32" | 1150 | 817.6 | 51 | 28 | 98.5 | 170 | 880 | 914 | 395.57 |
| 34" | 1205 | 868.4 | 51 | 28 | 102 | 180 | 935 | 965 | 446.43 |
| 36" | 1270 | 919.2 | 54 | 32 | 105 | 190 | 990 | 1022 | 502.9 |
| 38" | 1170 | 970 | 41 | 32 | 108 | 140 | 995 | 1029 | 256.33 |
| 40" | 1240 | 1020 | 44 | 32 | 114 | 150 | 1050 | 1086 | 316.78 |
| 42" | 1290 | 1071.6 | 44 | 32 | 119 | 156 | 1100 | 1137 | 343.98 |
| 44" | 1355 | 1122.4 | 48 | 32 | 124 | 160 | 1150 | 1194 | 394.78 |
| 46" | 1415 | 1173.2 | 51 | 28 | 129 | 170 | 1205 | 1245 | 455.19 |
| 48" | 1465 | 1224 | 51 | 32 | 133 | 180 | 1255 | 1314 | 482.1 |
| 50" | 1530 | 1274.8 | 54 | 32 | 140 | 190 | 1305 | 1359 | 557.35 |
| 52" | 1580 | 1325.6 | 54 | 32 | 144 | 198 | 1355 | 1410 | 595.56 |
| 54" | 1660 | 1376.4 | 60 | 28 | 152 | 210 | 1410 | 1467 | 741.05 |
| 56" | 1710 | 1427.2 | 60 | 28 | 154 | 220 | 1465 | 1518 | 786.03 |
| 58" | 1760 | 1478 | 60 | 32 | 159 | 228 | 1515 | 1575 | 824.35 |
| 60" | 1810 | 1528.8 | 60 | 32 | 164 | 235 | 1585 | 1620 | 904.14 |
The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all ANSI B16.47 Series A Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.
