Blind Flanges, ANSI B16.5 Blind Flanges Manufacturer in Mumbai, India.

Nickel Alloy Blind Flanges, Hastelloy BLFF Flanges, Inconel BLRF Flanges, SS Blind Flanges Stockist, Best Price of Blind Flange, Carbon Steel Blind Flanges, Duplex Steel Blind Flange, Alloy Steel Blind Flanges, Copper Nickel BLRTJ Flanges, Titanium RFBL Flanges, Monel Blind Flange, Stainless Steel Blind Flanges, SDSS Blind Flanges Supplier in Mumbai, India.

Blind Flanges Supplier in India, Blind Flanges Manufacturer in Mumbai, Blind Flanges Supplier in Mumbai, Blind Flanges Stockist in Mumbai, Blind Flanges Manufacturer in India, Blind Flanges Stockist in India.

These flanges are made with high quality raw materials. The supplied Carbon Steel Blind Flanges are widely utilized in the automotive, forging, process, and machine manufacturing industries because of their rugged structure and corrosion resistance. The series is available in a variety of thicknesses to meet the needs of various clients. These Carbon Steel Blind Flanges range in carbon content from 0.25% to 0.60%. The product's manufacturing and flexibility are both excellent because of the massive density of carbon and manganese. Rajendra Industrial Corporation manufactures and certifies flanges to meet international quality requirements. Blind Flanges are one of our most popular products. We also have Stainless Steel Blind Flanges in stock. We supply these flanges in many types of stainless steels as a leading Stainless Steel Blind Flange manufacturer. Some of the most widely utilized materials for flange operations are grades 304, 316, and duplex.

Specification Chart Of Blind Flanges

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Size	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500
Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production Technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF)
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Material	Inconel Blind Flange, Incoloy Blind Flange, Monel Blind Flange, Hastelloy Blind Flange, Copper Nickel Blind Flange, Alloy 20 Blind Flange, Nickel Alloy Blind Flange, AISI 4130 Blind Flange, Titanium Blind Flange, Brass Blind Flange, Stainless Steel Blind Flange, Duplex Steel Blind Flange, Super Duplex Blind Flange, SMO 254 Blind Flange.

PED Certified BLRF Flanges Manufacturer, ASME B16.5 Blind Flange Stockholder, ANSI B16.5 Blind Flange Manufacturer in Mumbai, ANSI B 16.5 Class 300 BLFF Flange, ASME B16.47 Series B Blind Threaded Flange Dealer in India.

Different Types of Blind Flanges

Stainless Steel Blind Flanges

Alloy Steel Blind Flanges

Carbon Steel Blind Flanges

Duplex Steel Blind Flanges

Super Duplex Steel Blind Flanges

Nickel Alloy Blind Flanges

Monel Blind Flanges

Hastelloy Blind Flanges

Inconel Blind Flanges

Titanium Blind Flanges

Alloy 20 Blind Flanges

Copper Nickel Blind Flanges

Manufacturer of ANSI B16.5 Blind Flange and BLFF Flanges in ASME B16.5 Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.5

Click On Below Links For Blind Flanges Standard

View Price List of Blind Flange

Price list of ASME B16.47 Series A Blind Flange	US $0.5-1000 / Piece (FOB Price)
ANSI B16.5 Class 150 BLRF Flanges Price in India	US $300-500 / Ton (FOB Price)
Price list of Blind Pipe Flanges	US $1-900 / Piece (FOB Price)
Stainless Steel Blind Flanges Price	US $0.5-1000 / Piece (FOB Price)
Blind Flange Price List	US $1-300 / Piece (FOB Price)
Raised Faced BLRF Flange Price Per Piece in India	US $1-800 / Piece (FOB Price)
ASME B16.5 Class 300 Raised Faced BLRF Flanges Price	US $15-900 / Piece (FOB Price)
Price of Flat Faced Blind Flanges EN 1092-1 Type 02	US $20-1500 / Piece (FOB Price)
EN 1092-2 PN16 Blind Flange Price List	US $26-2000 / Piece (FOB Price)
AWWA C207 Class d Blind Flange Price	US $18-1800 / Piece (FOB Price)

Also view the ASME B16.5 Blind Flange Price List, Attractive Price Offer of Raised Faced Blind Flanges Per Kg, Buy Large or Small Quantity ANSI B16.5 Blind Flanges at Factory Price, Buy Flat Faced Blind Flanges at an affordable Price in India .

Call us or send us an email

We can supply BS 4504 PN10 Blind Flanges with customized Class / Pressure and sizes, view EN 1092-1 Type 02 Class 150 BLRF Flange Price.

Get More Info

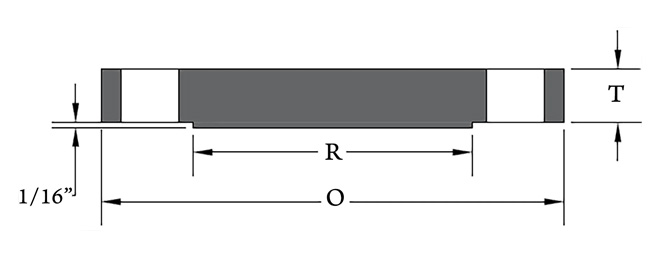

Blind Flange Dimensions

Class 150 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	90	9.6	34.9	2	60.3	4	1/2	50	55	5/8	M14	0.9
3/4	20	100	11.2	42.9	2	69.9	4	1/2	50	65	5/8	M14	0.9
1	25	110	12.7	50.8	2	79.4	4	1/2	55	65	5/8	M14	0.9
1 1/4	32	115	14.3	63.5	2	88.9	4	1/2	55	70	5/8	M14	1.4
1 1/2	40	125	15.9	73	2	98.4	4	1/2	65	70	5/8	M14	1.8
2	50	150	17.5	92.1	2	120.7	4	5/8	70	85	3/4	M16	2.3
2 1/2	65	180	20.7	104.8	2	139.7	4	5/8	75	90	3/4	M16	3.2
3	80	190	22.3	127	2	152.4	4	5/8	75	90	3/4	M16	4.1
3 1/2	90	215	22.3	139.7	2	177.8	8	5/8	75	90	3/4	M16	5.9
4	100	230	22.3	157.2	2	190.5	8	5/8	75	90	3/4	M16	7.7
5	125	255	22.3	185.7	2	215.9	8	3/4	85	95	7/8	M20	9.1
6	150	280	23.9	215.9	2	241.3	8	3/4	85	100	7/8	M20	11.8
8	200	345	27	269.9	2	298.5	8	3/4	90	110	7/8	M20	20.5
10	250	405	28.6	323.8	2	362	12	7/8	100	115	1	M24	32
12	300	485	30.2	381	2	431.8	12	7/8	100	120	1	M24	50
14	350	535	33.4	412.8	2	476.3	12	1	115	135	1 1/8	M27	64
16	400	595	35	469.9	2	539.8	16	1	115	135	1 1/8	M27	82
18	450	635	38.1	533.4	2	577.9	16	1 1/8	125	145	1 1/4	M30	100
20	500	700	41.3	584.2	2	635	20	1 1/8	140	160	1 1/4	M30	130
24	600	815	46.1	692.2	2	749.3	20	1 1/4	150	170	1 3/8	M33	196

Class 300 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	95	12.7	34.9	2	66.7	4	1/2	55	65	5/8	M14	1.4
3/4	20	115	14.3	42.9	2	82.6	4	5/8	65	75	3/4	M16	1.4
1	25	125	15.9	50.8	2	88.9	4	5/8	65	75	3/4	M16	1.4
1 1/4	32	135	17.5	63.5	2	98.4	4	5/8	70	85	3/4	M16	1.8
1 1/2	40	155	19.1	73	2	114.3	4	3/4	75	90	7/8	M20	2.7
2	50	165	20.7	92.1	2	127	8	5/8	75	90	3/4	M16	3.7
2 1/2	65	190	23.9	104.8	2	149.2	8	3/4	85	100	7/8	M20	5.5
3	80	210	27	127	2	168.3	8	3/4	90	110	7/8	M20	7.3
3 1/2	90	230	28.6	139.7	2	184.2	8	3/4	95	110	7/8	M20	9.6
4	100	255	30.2	157.2	2	200	8	3/4	95	115	7/8	M20	12.3
5	125	280	33.4	185.7	2	235	8	3/4	110	120	7/8	M20	15.9
6	150	320	35	215.9	2	269.9	12	3/4	110	120	7/8	M20	22.7
8	200	380	39.7	269.9	2	330.2	12	7/8	120	140	1	M24	36
10	250	445	46.1	323.8	2	387.4	16	1	140	160	1 1/8	M27	57
12	300	520	49.3	381	2	450.8	16	1 1/8	145	170	1 1/4	M30	84
14	350	585	52.4	412.8	2	514.4	20	1 1/8	160	180	1 1/4	M30	113
16	400	650	55.6	469.9	2	571.5	20	1 1/4	165	190	1 3/8	M33	134
18	450	710	58.8	533.4	2	628.6	24	1 1/4	170	195	1 3/8	M33	181
20	500	775	62	584.2	2	685.8	24	1 1/4	185	205	1 3/8	M33	230
24	600	915	68.3	692.2	2	812.8	24	1 1/2	205	230	1 5/8	M39	359

Class 400 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	95	14.3	34.9	7	66.7	4	1/2	75	5/8	M14	1.5
3/4	20	115	15.9	42.9	7	82.6	4	5/8	90	3/4	M16	1.5
1	25	125	17.5	50.8	7	88.9	4	5/8	90	3/4	M16	1.8
1 1/4	32	135	20.7	63.5	7	98.4	4	5/8	95	3/4	M16	2.3
1 1/2	40	155	22.3	73	7	114.3	4	3/4	110	7/8	M20	3.7
2	50	165	25.4	92.1	7	127	8	5/8	110	3/4	M16	4.6
2 1/2	65	190	28.6	104.8	7	149.2	8	3/4	120	7/8	M20	6.8
3	80	210	31.8	127	7	168.3	8	3/4	125	7/8	M20	9.1
3 1/2	90	230	35	N/A	7	184.2	8	7/8	140	1	M24	13.2
4	100	255	35	157.2	7	200	8	7/8	140	1	M24	15
5	125	280	38.1	185.7	7	235	8	7/8	145	1	M24	20
6	150	320	41.3	215.9	7	269.9	12	7/8	150	1	M24	28
8	200	380	47.7	269.9	7	330	12	1	170	1 1/8	M27	46
10	250	445	54	323.8	7	387.4	16	1 1/8	190	1 1/4	M30	71
12	300	520	57.2	381	7	450.8	16	1 1/4	205	1 3/8	M33	102
14	350	585	60.4	412.8	7	514.4	20	1 1/4	210	1 3/8	M33	132
16	400	650	63.5	469.9	7	571.5	20	1 3/8	220	1 1/2	M36	168
18	450	710	66.7	533.4	7	628.6	24	1 3/8	230	1 1/2	M36	207
20	500	775	69.9	584.2	7	685.8	24	1 1/2	240	1 3/4	M39	266
24	600	915	76.2	692.2	7	812.8	24	1 3/4	265	1 7/8	M45	405

Class 600 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	95	14.3	34.9	7	66.7	4	1/2	75	5/8	M14	1.4
3/4	20	115	15.9	42.9	7	82.6	4	5/8	90	3/4	M16	1.4
1	25	125	17.5	50.8	7	88.9	4	5/8	90	3/4	M16	1.8
1 1/4	32	135	20.7	63.5	7	98.4	4	5/8	95	3/4	M16	2.3
1 1/2	40	155	22.3	73	7	114.3	4	3/4	110	7/8	M20	3.7
2	50	165	25.4	92.1	7	127	8	5/8	110	3/4	M16	4.6
2 1/2	65	190	28.6	104.8	7	149.2	8	3/4	120	7/8	M20	6.8
3	80	210	31.8	127	7	168.3	8	3/4	125	7/8	M20	9.1
3 1/2	90	230	35	N/A	7	184.2	8	7/8	140	1	M24	13.2
4	100	275	38.1	157.2	7	215.9	8	7/8	145	1	M24	18.7
5	125	330	44.5	185.7	7	266.7	8	1	165	1 1/8	M27	31
6	150	355	47.7	215.9	7	292.1	12	1	170	1 1/8	M27	39
8	200	420	55.6	269.9	7	349.2	12	1 1/8	190	1 1/4	M30	64
10	250	510	63.5	323.8	7	431.8	16	1 1/4	215	1 3/8	M33	105
12	300	560	66.7	381	7	489	20	1 1/4	220	1 3/8	M33	134
14	350	605	69.9	412.8	7	527	20	1 3/8	235	1 1/2	M36	161
16	400	685	76.2	469.9	7	603.2	20	1 1/2	255	1 5/8	M39	225
18	450	745	82.6	533.4	7	654	20	1 5/8	275	1 3/4	M42	286
20	500	815	88.9	584.2	7	723.9	24	1 5/8	285	1 3/4	M42	368
24	600	940	101.6	692.2	7	838.2	24	1 7/8	330	2	M48	568

Class 900 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	120	22.3	34.9	7	82.6	4	3/4	110	7/8	M20	1.8
3/4	20	130	25.4	42.9	7	88.9	4	3/4	115	7/8	M20	2.7
1	25	150	28.6	50.8	7	101.6	4	7/8	125	1	M24	3.6
1 1/4	32	160	28.6	63.5	7	111.1	4	7/8	125	1	M24	4.1
1 1/2	40	180	31.8	73	7	123.8	4	1	140	1 1/8	M27	5.9
2	50	215	38.1	92.1	7	165.1	8	7/8	145	1	M24	10.1
2 1/2	65	245	41.3	104.8	7	190.5	8	1	160	1 1/8	M27	16
3	80	240	38.1	127	7	190.5	8	7/8	145	1	M24	13
4	100	290	44.5	157.2	7	235	8	1 1/8	170	1 1/4	M30	24.5
5	125	350	50.8	185.7	7	279.4	8	1 1/4	190	1 3/8	M33	39.5
6	150	380	55.6	215.9	7	317.5	12	1 1/8	190	1 1/4	M30	53
8	200	470	63.5	269.9	7	393.7	12	1 3/8	220	1 1/2	M36	91
10	250	545	69.9	323.8	7	469.9	16	1 3/8	235	1 1/2	M36	132
12	300	610	79.4	381	7	533.4	20	1 3/8	255	1 1/2	M36	189
14	350	640	85.8	412.8	7	558.8	20	1 1/2	275	1 5/8	M39	237
16	400	705	88.9	469.9	7	616	20	1 5/8	285	1 3/4	M42	273
18	450	785	101.6	533.4	7	685.8	20	1 7/8	325	2	M48	367
20	500	855	108	584.2	7	749.3	20	2	350	2 1/8	M52	463
24	600	1040	139.7	692.2	7	901.7	20	2 1/2	440	2 5/8	M64	875

Class 1500 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	120	22.3	34.9	7	82.6	4	3/4	110	7/8	M20	1.8
3/4	20	130	25.4	42.9	7	88.9	4	3/4	115	7/8	M20	2.7
1	25	150	28.6	50.8	7	101.6	4	7/8	125	1	M24	3.7
1 1/4	32	160	28.6	63.5	7	111.1	4	7/8	125	1	M24	4.1
1 1/2	40	180	31.8	73	7	123.8	4	1	140	1 1/8	M27	5.9
2	50	215	38.1	92.1	7	165.1	8	7/8	145	1	M24	10.1
2 1/2	65	245	41.3	104.8	7	190.5	8	1	160	1 1/8	M27	15.9
3	80	265	47.7	127	7	203.2	8	1 1/8	180	1 1/4	M30	21.8
4	100	310	54	157.2	7	241.3	8	1 1/4	195	1 3/8	M33	33
5	125	375	73.1	185.7	7	292.1	8	1 1/2	250	1 5/8	M39	64
6	150	395	82.6	215.9	7	317.5	12	1 3/8	260	1 1/2	M36	75
8	200	485	92.1	269.9	7	393.7	12	1 5/8	290	1 3/4	M42	136
10	250	585	108	323.8	7	482.6	12	1 7/8	335	2	M48	232
12	300	675	123.9	381	7	571.5	16	2	375	2 1/8	M52	314
14	350	750	133.4	412.8	7	635	16	2 1/4	405	2 3/8	M56	443
16	400	825	146.1	469.9	7	704.8	16	2 1/2	445	2 5/8	M64	591
18	450	915	162	533.4	7	774.7	16	2 3/4	495	2 7/8	M72	795
20	500	985	177.8	584.2	7	831.8	16	3	540	3 1/8	M76	1022
24	600	1170	203.2	692.2	7	990.6	16	3 1/2	615	3 5/8	M90	1648

Class 2500 Blind Flange Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	RF Dia.	RF Height	PCD	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E
1/2	15	135	30.2	34.9	7	88.9	4	3/4	120	7/8	M20	3.2
3/4	20	140	31.8	42.9	7	95.2	4	3/4	125	7/8	M20	3.7
1	25	160	35	50.8	7	108	4	7/8	140	1	M24	5
1 1/4	32	185	38.1	63.5	7	130.2	4	1	150	1 1/8	M27	7.8
1 1/2	40	205	44.5	73	7	146	4	1 1/8	170	1 1/4	M30	10.5
2	50	235	50.9	92.1	7	171.4	8	1	180	1 1/8	M27	18
2 1/2	65	265	57.2	104.8	7	196.8	8	1 1/8	195	1 1/4	M30	25.5
3	80	305	66.7	127	7	228.6	8	1 1/4	220	1 3/8	M33	39
4	100	355	76.2	157.2	7	273	8	1 1/2	255	1 5/8	M39	61.5
5	125	420	92.1	185.7	7	323.8	8	1 3/4	300	1 7/8	M45	102
6	150	485	108	215.9	7	368.3	8	2	345	2 1/8	M52	157
8	200	550	127	269.9	7	438.2	12	2	380	2 1/8	M52	241
10	250	675	165.1	323.8	7	539.8	12	2 1/2	490	2 5/8	M64	470
12	300	760	184.2	381	7	619.1	12	2 3/4	540	2 7/8	M72	575

ASME B16.5 Blind Flanges Weight Chart

Pipe Size	150 #			300 #			600 #			900 #			1500 #			2500 #
Pipe Size	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD
1/2"	2	1	1	2	1	1	2	2	2	SEE 1500 # WEIGHTS			5	4	4	7	7	7
3/4"	2	2	2	3	3	3	4	3	3	SEE 1500 # WEIGHTS			6	5	6	8	8	8
1"	3	2	2	4	3	3	4	4	4	SEE 1500 # WEIGHTS			9	8	8	12	11	11
1 1/2"	4	3	3	7	6	6	8	7	8	SEE 1500 # WEIGHTS			13	12	13	25	22	23
2"	6	5	5	9	7	8	12	9	10	SEE 1500 # WEIGHTS			25	25	25	42	37	39
2 1/2"	8	7	7	12	10	12	18	13	15	SEE 1500 # WEIGHTS			36	36	35	52	55	56
3"	10	8	9	15	13	16	23	16	20	31	26	29	48	48	48	94	83	86
4"	15	13	17	25	22	27	42	37	41	53	53	54	73	73	73	145	125	130
5"	19	15	20	32	28	35	68	63	68	86	83	87	130	130	140	245	210	225
6"	24	19	26	42	39	50	81	80	86	110	110	115	165	165	160	380	325	345
8"	39	30	45	67	58	81	120	115	140	175	170	200	275	260	300	580	485	530
10"	52	43	70	91	81	124	190	170	230	260	245	290	455	435	510	1075	930	1025
12"	80	64	110	140	115	185	225	200	295	325	325	415	690	580	690	1525	1100	1300
14"	110	90	140	180	165	250	280	230	355	400	400	520	940	NA	975	NA	NA	NA
16"	140	98	180	250	190	295	390	330	495	495	425	600	1250	NA	1300	NA	NA	NA
18"	150	130	220	320	250	395	475	400	630	680	600	850	1625	NA	1750	NA	NA	NA
20"	180	165	285	400	315	505	590	510	810	830	730	1075	2050	NA	2225	NA	NA	NA
22"	225	185	355	465	370	640	720	590	1000	NA	NA	NA	NA	NA	NA	NA	NA	NA
24"	260	220	430	580	475	790	830	730	1250	1500	1400	2025	3325	NA	3625	NA	NA	NA

ANSI B16.5 Blind Flanges Manufacturing Process

View Dimension of PN16 Blind Flange, ISO Certifed BS10 Table D BLRF Flange, AWWA C207 Class D Blind Flange Manufacturer in India for high quality and better price.

ASME B16.5 Blind Flanges Packing & Delivery

We Have 25+ Years Experience

The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all Raised Face Blind Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.

Application of Blind Pipe Flanges

Oil & Gas

Chemical

Petrochemical

Marine

Refinery

Power Plant

Widest Range of Blind Flanges in Mumbai, India

Stainless Steel Blind Flange	ASTM B564 Raised Faced Blind Flanges
ASME B16.5 Blind Plate Flanges Exporter	Duplex Steel Blind Flanges
ASME B16.5 BLFF Flange	Blind Flange Supplier in India
ANSI B16.5 Class 150 Blind Flange	ASME B16.47 Series B RFBL Flanges Dealer in India
ASME B16.5 Class 300 BLRF Flanges Stockist	Flat Faced Blind Pipe Flanges
EN 1092-2 PN16 RFBL Flange Stockist in India	AWWA C207 Class D Blind Flange
ANSI B16.5 Blind Flanges Wholesaler	EN 1092-1 Blind Flanges Supplier
ANSI B16.5 Blind Flange	JIS 10K BLRTJ Flanges
JIS B2220 10K Blind Flange	PN 10 BLRTJ Flanges
ASME B16.47 Series A Blind Flange Manufacturer	Raised Face Blind Flange Manufacturer
JIS 5K BLRTJ Flange Dimensions	30 Inch Blind Flange Dimensions
EN 1092-2 BLRTJ Flange	Carbon Steel Raised Face Blind Flange Stockist
4 inch Stainless Steel Blind Flange	Blind Flange Stockholder
ASME B16.5 Class 600 RFBL Flanges	Blind Pipe Flange Exporter
PN16 BLFF Flange Dimensions	Table D Blind Flange Dimensions
A182 Flat Faced Blind Flanges	Titanium Flat Faced Blind Flanges
8 Inch BLRF Flanges	ANSI B16.5 150 LBS Blind RF Flanges
SS BLRTJ Flange 150LBS	Class 900 BLRF Flange Dimensions
Duplex Steel Blind Flanges Supplier in Mumbai	JIS 10K RFBL Flange Supplier in Mumbai
MS Blind Flange Table E	Class 1500 BLFF Flange Dimensions
18 inch Blind Class 150 Carbon Steel Flange	AWWA C207 Blind Flanges
Mild Steel BLRTJ Flange	Class 1500 Blind Flanges Distributor in Mumbai
Nickel Alloy Blind Plate Flange	Table E Blind Pipe Flanges Supplier in Mumbai
JIS B2220 5K 10K 16K Blind Flanges	DIN Standard PN25 Blind Flanges
Carbon Steel Blind Flat Face Pipe Flange	ANSI #150 Blind Flange Supplier
ASME B16.5 Blind Flange Manufacturer	150# Flat Face Blind Flange Manufacturer
JIS 16K Blind Flange Dealer	DIN 86029 PN10 Blind Flange Manufacturer
BS 4504 PN10 Blind Flanges Supplier in Mumbai	Alloy Steel Blind Flanges Manufacturer in India
ASME SA105N Raised Faced Blind Flanges	18 inch Blind Class 150 Carbon Steel Flange
Alloy 20 BLRTJ Flanges	Copper Nickel Blind Flanges at Best Price
DIN 2503 PN25 Blind Flanges Supplier	Suppliers of DIN 2543 PN16 BLFF Flanges

Searches Related to ASME B16.5 Blind Flanges

super duplex steel blind flanges, asme b16.5 ss blind flange, blind flange price in ahmedabad, blind flanges dealer, cost of blind flange, table d blind flange dimensions, blind flanges traders, blind flange dimensions pn16, blind flange dimensions in mm, class 600# blind flanges exporter, inconel blind flanges wholesaler, blind flange jis 10k, dimensions of blrf flange, blind flange duplex steel blind flanges supplier in india, smo 254 blind flange price list, nickel alloy blff flange supplier in mumbai, ms blind flange, 1/2 blrtj flange, blind flange dimensions 300#, blind flange dealer in gujarat, class 1500# blind flanges, nickel alloy blind flange price list in india, rfbl flange dimensions, blrf flange weight chart in kg, class 900 blind flange dimensions, blind flange dn80 pn10, blind plate flanges manufacturer in mumbai, copper nickel blind manufacturer in mumbai, blind flange en 1092-1, blind flange pn10, blrtj flange price list in india, blff flanges stockholder, blind flange 150 dimensions, asme 16.5 blff flanges stockholder, alloy steel blind flanges supplier, stainless steel blind flanges importer, titanium blind flanges stockist in mumbai, awwa c207 class d rfbl flange, en 1092-1 blind flange, hastelloy blind flanges manufacturer in mumbai, blind flange jis 5k, blind flange dimensions mm, alloy 20 blrtj flanges manufacturer, blind flanges manufacturer in rajkot, blrtj flanges manufacturers in india, blind flange 150 lbs dimensions, blind flanges supplier in mumbai, blind flange class 150 dimensions, blind flanges dealer, blind flanges manufacturer in india, blind pipe flanges supplier in india, monel blind flanges exporter, price of stainless steel blind flanges, series b blind flange, 150 lb blind flange dimensions, bs10 table d blind flange, blrf flange price list philippines, table e blrtj flange dimensions, ansi b 16.5 blind flange dimensions, jis 5k blind flange weight, carbon steel blff flange manufacturer, blind flange thickness, incoloy blind flanges distributor, blind flange din 2576 pn16, 24 blind flange dimensions, blind flange pn16, blind flange distribution, blind flange price, blrtj flange dimensions class 150, jis 5k blind flange dimensions, 30 inch blff flange dimensions, blind flange din 2576 pn10, asme b16.47 blind flange dimensions, blind flanges stockist in mumbai, blind flange price list, biggest blind flange manufacturer in india, pn16 rfbl flange dimensions, class 600 blind flange dimensions, class 900# blind flanges stock, blind flat face flange price list in mumbai.

We Supply ANSI / ASME B16.5 Blind Flange in the following cities

Bengaluru	Mumbai	Chennai	Hyderabad	Kolkata	Pune
New Delhi	Ahmedabad	Jaipur	Surat	Salem	Gandhinagar
Bhiwandi	Tiruppur	Sivakasi	Jamnagar	Thiruvananthapuram	Rajahmundry
Bhubaneswar	Vijaywada	Firozabad	Bokaro Steel City	Rajkot	Bharuch
Panna	Raipur	Cochin	Ludhiana	Panipat	Durgapur
Peenya	Pimpri-Chinchwad	Channapatna	Kharagpur	Nashik	Bareilly
Varanasi	Haldia	Rourkela	Bangalore	Moradabad	Indore
Visakhapatnam	Trivandrum	Pithampur	Dibrugarh	Angul	Gwalior
Coimbatore	Kannur	Nagpur	Vadodara	Rudrapur	Noida
Agra	Bhagalpur	Jamshedpur	Bhilai	Lucknow	Kanpur
Thane	Bhopal	Sri City	Bareilly	Hosdurg	Pithampur

Blind Flanges Manufacturer in India

ANSI B16.5 Blind Pipe Flange, BLRF Flanges, MSS SP-44 Blind Flanges, BLRTJ Flange, Blind Plate Flange, ASME B16.5 Blind Flanges, Raise Face Blind Flanges, Flat Face Blind Flanges, ANSI B16.5 Class 150 Blind Flange, Blind Flanges Manufacturer in Mumbai, India.
