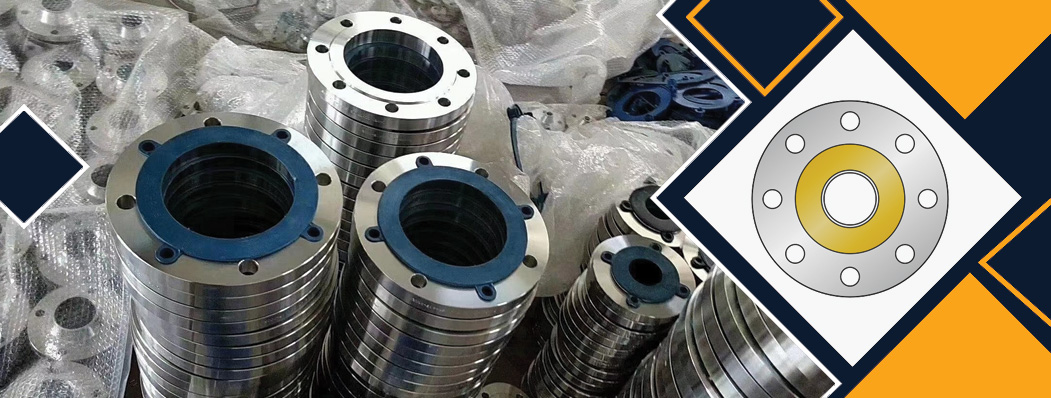

Manufacturer of ANSI B16.47 Korean Flange and Korean Pipe Flanges in Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.5
In India, Rajendra Industrial Corporation offers a wide range of Stainless Steel Korean Flange, Duplex & Super Duplex Korean Flange, Carbon Steel Korean Flange, Alloy Steel Korean Flange, and Inconel Korean Flange, Nickel 200 Korean Flange, Hastelloy Korean Flange at relatively affordable prices. Korean flange is noted for its high performance, corrosion resistance, and durability. Because of its excellent strength and corrosion resistance against seawater or saltwater, different stainless steel grades of Korean Standard Flange, such as 316, can be utilized in marine applications. Stainless steel grade 304 is one of the most often utilized grades to create the Korean Flange. Alloys applied to stainless steel during the manufacturing of Korean Flanges are known to extend the flanges' service life.
Table Of Contents
These Stainless Steel Korean Flange grades are suitable for a variety of applications. As a result, industries such as heavy engineering, automobiles, railways, and pipeline engineering employ Inconel Korean Flange. Pipes made with Carbon Steel Korean Flange are simple to install and dismantle.
Korean Flanges Application:
Chemical Industries
Petrochemical Industries
Refineries Industry
Fertilizers Industry
Power Plant Industry
Nuclear Power Industry
Oil & Gas Industries
Paper Industry
Breweries Industries
Cement Industry
Sugar Industry
Korean Flange is available in conventional specifications as well as customized to meet the needs of our customers. The thickness of the wall of a Korean Flange can be made to fit the measurements of the matched pipes. In general, the Alloy Steel Korean Flange range meets the needs of a variety of industries. The Korean Flange, for example, can endure high-pressure applications. Furthermore, these Flanges can work well in a wide range of extremes, including extreme cold and heat.
| Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Material | Inconel Korean Flange, Incoloy Korean Flange, Monel Korean Flange, Hastelloy Korean Flange, Copper Nickel Korean Flange, Alloy 20 Korean Flange, Nickel Alloy Korean Flange, AISI 4130 Korean Flange, Titanium Korean Flange, Brass Korean Flange, Stainless Steel Korean Flange, Duplex Steel Korean Flange, Super Duplex Korean Flange, SMO 254 Korean Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturer of ANSI B16.47 Korean Flange and Korean Pipe Flanges in Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.5
| Price list of Korean Flange | US $0.5-1000 / Piece (FOB Price) |
| KS B1503 5K Flanges Price in India | US $300-500 / Ton (FOB Price) |
| Price list of Korean Pipe Flanges | US $1-900 / Piece (FOB Price) |
| Stainless Steel Korean Flanges Price | US $0.5-1000 / Piece (FOB Price) |
| Korean Standard Flange Price List | US $1-300 / Piece (FOB Price) |
| Korean Blind Flange Price Per Piece in India | US $1-800 / Piece (FOB Price) |
| Korean Large Diameter Flange Price | US $15-900 / Piece (FOB Price) |
| Price of Korean Plate Flanges | US $20-1500 / Piece (FOB Price) |
| Korean Lap Joint Flanges Price List | US $26-2000 / Piece (FOB Price) |
| Korean Socketweld Flanges Price | US $18-1800 / Piece (FOB Price) |
We can supply Korean Flanges with customized Class / Pressure and sizes, view Korean Flange Price.

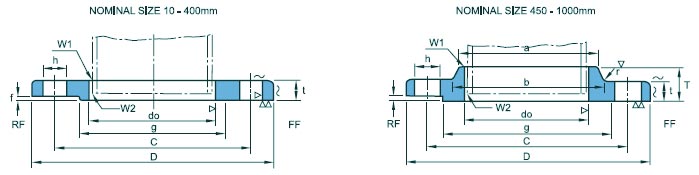

| Nominal Diameter of Flanges | Outside Diameter of Flanges D | flange Sectional Dimensions | Size Of Bolt | Welding | ||||||||||||
| Diameter of Bolt Circle C | Diameter Of raised Face g | Inside Dia. Of Flange do | Outside Diameter Of Applicable pipe | t | T | Hub Diameter | Radius r | Raised Face f | Hole Diameter Of H | Bolt Holes Number | ||||||
| a | b | W1 | W2 | |||||||||||||
| 10 | 75 | 55 | 39 | 17.8 | 17.3 | 9 | – | – | – | – | 1 | 12 | 4 | M10 | 5 | 2.5 |
| 15 | 80 | 60 | 44 | 22.2 | 21.7 | 9 | – | – | – | – | 1 | 12 | 4 | M10 | 5 | 3 |
| 20 | 85 | 65 | 49 | 27.7 | 27.2 | 10 | – | – | – | – | 1 | 12 | 4 | M10 | 5 | 3 |
| 25 | 95 | 75 | 59 | 34.5 | 34 | 10 | – | – | – | – | 1 | 12 | 4 | M10 | 5 | 3 |
| 32 | 115 | 90 | 70 | 43.2 | 42.7 | 12 | – | – | – | – | 2 | 15 | 4 | M12 | 6 | 3 |
| 40 | 120 | 95 | 75 | 49.1 | 48.6 | 12 | – | – | – | – | 2 | 15 | 4 | M12 | 6 | 3 |
| 50 | 130 | 105 | 85 | 61.1 | 60.5 | 14 | 2 | 15 | 4 | M12 | 6 | 3 | ||||
| 65 | 155 | 130 | 110 | 77.1 | 76.3 | 14 | 2 | 15 | 4 | M12 | 6 | 4 | ||||
| 80 | 180 | 145 | 121 | 90 | 89.1 | 14 | 2 | 19 | 4 | M16 | 6 | 4 | ||||
| 90 | 190 | 155 | 131 | 102.6 | 101.6 | 14 | 2 | 19 | 4 | M16 | 6 | 4 | ||||
| 100 | 200 | 165 | 141 | 115.4 | 114.3 | 16 | 2 | 19 | 8 | M16 | 7 | 4 | ||||
| 125 | 235 | 200 | 176 | 141.2 | 139.8 | 16 | 2 | 19 | 8 | M16 | 7 | 4 | ||||
| 150 | 265 | 230 | 206 | 166.6 | 165.2 | 18 | 2 | 19 | 8 | M16 | 7 | 5 | ||||
| 175 | 300 | 260 | 232 | 192.1 | 190.7 | 18 | 2 | 23 | 8 | M20 | 7.5 | 5 | ||||
| 200 | 320 | 280 | 252 | 218 | 216.3 | 20 | 2 | 23 | 8 | M20 | 8.5 | 6 | ||||
| 225 | 345 | 305 | 277 | 243.7 | 241.8 | 20 | 2 | 23 | 12 | M20 | 9 | 6 | ||||
| 250 | 385 | 345 | 317 | 269.5 | 267.4 | 22 | 2 | 23 | 12 | M20 | 10 | 6 | ||||
| 300 | 430 | 390 | 360 | 321 | 318.5 | 22 | 3 | 23 | 12 | M20 | 10 | 6 | ||||
| 350 | 480 | 435 | 403 | 358.1 | 355.6 | 24 | 3 | 25 | 12 | M22 | 12 | 7 | ||||
| 400 | 540 | 495 | 463 | 409 | 406.4 | 24 | 3 | 25 | 16 | M22 | 12 | 7 | ||||
| 450 | 605 | 555 | 523 | 460 | 457.2 | 24 | 40 | 495 | 500 | 5 | 3 | 25 | 16 | M22 | 12 | 7 |
| 500 | 655 | 605 | 573 | 511 | 508 | 24 | 40 | 546 | 552 | 5 | 3 | 25 | 20 | M22 | 12 | 7 |
| 550 | 720 | 665 | 630 | 562 | 558.8 | 26 | 42 | 597 | 603 | 5 | 3 | 27 | 20 | M24 | 12 | 7 |
| 600 | 770 | 715 | 680 | 613 | 609.6 | 26 | 44 | 648 | 654 | 5 | 3 | 27 | 20 | M24 | 12 | 7 |
| 650 | 825 | 770 | 735 | 664 | 660.4 | 26 | 48 | 702 | 708 | 5 | 3 | 27 | 24 | M24 | 12 | 7 |
| 700 | 875 | 820 | 785 | 715 | 711.2 | 26 | 48 | 751 | 758 | 5 | 3 | 27 | 24 | M24 | 12 | 7 |
| 750 | 945 | 880 | 840 | 766 | 762 | 28 | 52 | 802 | 810 | 5 | 3 | 33 | 24 | M30 | 12 | 7 |
| 800 | 995 | 930 | 890 | 817 | 812.8 | 28 | 52 | 854 | 862 | 5 | 3 | 33 | 24 | M30 | 13 | 8 |
| 850 | 1045 | 980 | 940 | 868 | 863.6 | 28 | 54 | 904 | 912 | 5 | 3 | 33 | 24 | M30 | 13 | 8 |
| 900 | 1095 | 1030 | 990 | 919 | 914.4 | 30 | 56 | 956 | 964 | 5 | 3 | 33 | 24 | M30 | 13 | 8 |
| 1000 | 1195 | 1130 | 1090 | 1021 | 1016 | 32 | 60 | 1058 | 1066 | 5 | 3 | 33 | 28 | M30 | 14 | 9 |
| *(1100) | 1305 | 1240 | 1200 | 1123 | 1117.6 | 32 | 3 | 33 | 28 | M30 | ||||||
| *1200 | 1420 | 1350 | 1305 | 1225 | 1219.2 | 34 | – | – | 3 | 33 | 32 | M30 | ||||
| *1350 | 1575 | 1505 | 1460 | – | 1371.6 | 34 | – | – | – | – | 3 | 33 | 32 | M30 | ||
| *1500 | 1730 | 1660 | 1615 | – | 1524 | 36 | – | – | – | – | 3 | 33 | 36 | M30 | ||
| Nominal Diameter of Flanges | Outside Diameter of Flanges D | flange Sectional Dimensions | Size Of Bolt | Welding | ||||||||||||
| Diameter of Bolt Circle C | Diameter Of raised Face g | Inside DaimeterOf Flange do | O.D. Of Applicable pipe | t | T | Hub Diameter | Radius r | Raised Face f | Hole Diameter Of H | Bolt Holes Number | ||||||
| a | b | W1 | W2 | |||||||||||||
| 10 | 90 | 65 | 46 | 17.8 | 17.3 | 12 | – | – | – | – | 1 | 15 | 4 | M12 | 5 | 2.5 |
| 15 | 95 | 70 | 51 | 22.2 | 21.7 | 12 | – | – | – | – | 1 | 15 | 4 | M12 | 5 | 3 |
| 20 | 100 | 75 | 56 | 27.7 | 27.2 | 14 | – | – | – | – | 1 | 15 | 4 | M12 | 5 | 3 |
| 25 | 125 | 90 | 67 | 34.5 | 34 | 14 | – | – | – | – | 1 | 19 | 4 | M16 | 5 | 3 |
| 32 | 135 | 100 | 76 | 43.2 | 42.7 | 16 | – | – | – | – | 2 | 19 | 4 | M16 | 6 | 3 |
| 40 | 140 | 105 | 81 | 49.1 | 48.6 | 16 | – | – | – | – | 2 | 19 | 4 | M16 | 6 | 3 |
| 50 | 155 | 120 | 96 | 61.1 | 60.5 | 16 | – | – | – | – | 2 | 19 | 4 | M16 | 6 | 3 |
| 65 | 175 | 140 | 116 | 77.1 | 76.3 | 18 | – | – | – | – | 2 | 19 | 4 | M16 | 6.5 | 4 |
| 80 | 185 | 150 | 126 | 90 | 89.1 | 18 | – | – | – | – | 2 | 19 | 8 | M16 | 6.5 | 4 |
| -90 | 195 | 160 | 136 | 102.6 | 101.6 | 18 | – | – | – | – | 2 | 19 | 8 | M16 | 6.5 | 4 |
| 100 | 210 | 175 | 151 | 115.4 | 114.3 | 18 | – | – | – | – | 2 | 19 | 8 | M16 | 7 | 4 |
| 125 | 250 | 210 | 182 | 141.2 | 139.8 | 20 | – | – | – | – | 2 | 23 | 8 | M20 | 7.5 | 4 |
| 150 | 280 | 240 | 212 | 166.6 | 165.2 | 22 | – | – | – | – | 2 | 23 | 8 | M20 | 8 | 5 |
| -175 | 305 | 265 | 237 | 192.1 | 190.7 | 22 | – | – | – | – | 2 | 23 | 12 | M20 | 9 | 5 |
| 200 | 330 | 290 | 262 | 218 | 216.3 | 22 | – | – | – | – | 2 | 23 | 12 | M20 | 9 | 6 |
| -255 | 350 | 310 | 282 | 243.7 | 241.8 | 22 | – | – | – | – | 2 | 23 | 12 | M20 | 9 | 6 |
| 250 | 400 | 355 | 324 | 269.5 | 267.4 | 24 | 36 | 288 | 292 | 6 | 2 | 25 | 12 | M22 | 10 | 6 |
| 300 | 445 | 400 | 368 | 321 | 318.5 | 24 | 38 | 340 | 346 | 6 | 3 | 25 | 16 | M22 | 10 | 6 |
| 350 | 490 | 445 | 413 | 358.1 | 355.6 | 26 | 42 | 380 | 386 | 6 | 3 | 25 | 16 | M22 | 12 | 7 |
| 400 | 560 | 510 | 475 | 409 | 406.4 | 28 | 44 | 436 | 442 | 6 | 3 | 27 | 16 | M24 | 12 | 7 |
| 450 | 620 | 565 | 530 | 460 | 457.2 | 30 | 48 | 496 | 502 | 6 | 3 | 27 | 20 | M24 | 14 | 8 |
| 500 | 675 | 620 | 585 | 511 | 508 | 30 | 48 | 548 | 554 | 6 | 3 | 27 | 20 | M24 | 14 | 8 |
| 550 | 745 | 680 | 640 | 562 | 558.8 | 32 | 52 | 604 | 610 | 6 | 3 | 33 | 20 | M30 | 15 | 9 |
| 600 | 795 | 730 | 690 | 613 | 609.6 | 32 | 52 | 656 | 662 | 6 | 3 | 33 | 24 | M30 | 16 | 10 |
| 650 | 845 | 780 | 740 | 664 | 660.4 | 34 | 56 | 706 | 712 | 6 | 3 | 33 | 24 | M30 | 16 | 10 |
| 700 | 905 | 840 | 800 | 715 | 711.2 | 34 | 58 | 762 | 770 | 6 | 3 | 33 | 24 | M30 | 17 | 10 |
| 750 | 970 | 900 | 855 | 766 | 762 | 36 | 62 | 816 | 824 | 6 | 3 | 33 | 24 | M30 | 18 | 11 |
| 800 | 1020 | 950 | 905 | 817 | 812.8 | 36 | 64 | 868 | 876 | 6 | 3 | 33 | 28 | M30 | 19 | 12 |
| -850 | 1070 | 1000 | 955 | 868 | 863.6 | 36 | 66 | 920 | 928 | 6 | 3 | 33 | 28 | M30 | 19 | 12 |
| 900 | 1120 | 1050 | 1005 | 919 | 914.4 | 38 | 70 | 971 | 979 | 6 | 3 | 33 | 28 | M30 | 22 | 14 |
| 1000 | 1235 | 1160 | 1110 | 1021 | 1016 | 40 | 74 | 1073 | 1081 | 6 | 3 | 39 | 28 | M36 | 22 | 14 |
| *(1100) | 1345 | 1270 | 1220 | 1123 | 1117.6 | 42 | – | – | – | – | 3 | 39 | 28 | M36 | ||
| *1200 | 1465 | 1380 | 1325 | 1225 | 1219.2 | 44 | – | – | – | – | 3 | 39 | 32 | M36 | ||
| *1350 | 1630 | 1540 | 1480 | – | 1371.6 | 48 | – | – | – | – | 3 | 45 | 36 | M42 | ||
| *1500 | 1795 | 1700 | 1635 | – | 1524 | 50 | – | – | – | – | 3 | 45 | 40 | M42 | ||
| Nominal Diameter of Flanges | Outside Diameter of Flanges D | flange Sectional Dimensions | Size Of Bolt | |||||||||||
| Diameter of Bolt Circle C | Diameter Of raised Face g | Inside DaimeterOf Flange do | O.D. Of Applicable pipe | t | T | Hub Diameter | Radius r | Raised Face f | Hole Diameter Of H | Bolt Holes Number | ||||
| a | b | |||||||||||||
| 10 | 90 | 65 | 46 | 17.8 | 17.3 | 12 | 16 | 26 | 28 | 4 | 1 | 15 | 4 | M12 |
| 15 | 95 | 70 | 51 | 22.2 | 21.7 | 12 | 16 | 30 | 32 | 4 | 1 | 15 | 4 | M12 |
| 20 | 100 | 75 | 56 | 27.7 | 27..2 | 14 | 20 | 38 | 42 | 4 | 1 | 15 | 4 | M12 |
| 25 | 125 | 90 | 67 | 34.5 | 34 | 14 | 20 | 46 | 50 | 4 | 1 | 19 | 4 | M16 |
| 32 | 135 | 100 | 76 | 43.2 | 42.7 | 16 | 22 | 56 | 60 | 5 | 2 | 19 | 4 | M16 |
| 40 | 140 | 105 | 81 | 49.1 | 48.6 | 16 | 24 | 62 | 66 | 5 | 2 | 19 | 4 | M16 |
| 50 | 155 | 120 | 96 | 61.1 | 60.5 | 16 | 24 | 76 | 80 | 5 | 2 | 19 | 8 | M16 |
| 65 | 175 | 140 | 116 | 77.1 | 76.3 | 18 | 26 | 94 | 98 | 5 | 2 | 19 | 8 | M16 |
| 80 | 200 | 160 | 132 | 90 | 89.1 | 20 | 28 | 108 | 112 | 6 | 2 | 23 | 8 | M20 |
| -90 | 210 | 170 | 145 | 102.6 | 101.6 | 20 | 30 | 120 | 124 | 6 | 2 | 23 | 8 | M20 |
| 100 | 225 | 185 | 160 | 115.4 | 114.3 | 22 | 34 | 134 | 138 | 6 | 2 | 23 | 8 | M20 |
| 125 | 270 | 225 | 195 | 141.2 | 139.8 | 22 | 34 | 164 | 170 | 6 | 2 | 25 | 8 | M22 |
| 150 | 305 | 260 | 230 | 166.6 | 165.2 | 24 | 38 | 196 | 202 | 6 | 2 | 25 | 12 | M22 |
| 200 | 350 | 305 | 275 | 218 | 216.3 | 26 | 40 | 244 | 252 | 6 | 2 | 25 | 12 | M22 |
| 250 | 430 | 380 | 345 | 269.5 | 267.4 | 28 | 44 | 304 | 312 | 6 | 2 | 27 | 12 | M24 |
| 300 | 480 | 430 | 395 | 321 | 318.5 | 30 | 48 | 354 | 364 | 8 | 3 | 27 | 16 | M24 |
| 350 | 540 | 480 | 440 | 358.1 | 355.6 | 34 | 52 | 398 | 408 | 8 | 3 | 33 | 16 | M30X3 |
| 400 | 605 | 540 | 495 | 409 | 406.4 | 38 | 60 | 446 | 456 | 10 | 3 | 33 | 16 | M30X3 |
| 450 | 675 | 605 | 560 | 460 | 457.2 | 40 | 64 | 504 | 514 | 10 | 3 | 33 | 20 | M30X3 |
| 500 | 730 | 660 | 615 | 511 | 508 | 42 | 68 | 558 | 568 | 10 | 3 | 33 | 20 | M30X3 |
| -550 | 795 | 720 | 670 | 562 | 558.8 | 44 | 70 | 612 | 622 | 10 | 3 | 39 | 20 | M36X3 |
| 600 | 845 | 770 | 720 | 613 | 609.6 | 46 | 74 | 666 | 676 | 10 | 3 | 39 | 24 | M36X3 |
| -650 | 895 | 820 | 770 | 664 | 660.4 | 48 | 77 | 704 | 726 | 10 | 5 | 39 | 24 | M36X3 |
| 700 | 960 | 875 | 820 | 715 | 711.2 | 50 | 80 | 754 | 776 | 10 | 5 | 42 | 24 | M39X3 |
| -750 | 1020 | 935 | 880 | 766 | 762 | 52 | 83 | 806 | 832 | 10 | 5 | 42 | 24 | M39X3 |
| 800 | 1085 | 990 | 930 | 817 | 812.8 | 54 | 86 | 865 | 885 | 10 | 5 | 48 | 24 | M45X3 |
| -850 | 1135 | 1040 | 980 | 868 | 863.6 | 56 | 89 | 916 | 936 | 10 | 5 | 48 | 24 | M45X3 |
| 900 | 1185 | 1090 | 1030 | 919 | 914.4 | 58 | 93 | 968 | 986 | 10 | 5 | 48 | 28 | M45X3 |
| 1000 | 1320 | 1210 | 1140 | 1021 | 1016 | 62 | 99 | 1070 | 1098 | 12 | 5 | 56 | 28 | M52X3 |
| -1100 | 1420 | 1310 | 1240 | 1123 | 1117.6 | 66 | 105 | 1180 | 1200 | 12 | 5 | 56 | 32 | M52X3 |
| 1200 | 1530 | 1420 | 1350 | 1225 | 1219.2 | 70 | 112 | 1282 | 1302 | 12 | 5 | 56 | 32 | M52X3 |
| Nominal Diameter of Flanges | Outside Diameter of Flanges D | flange Sectional Dimensions | Reference | |||||||||||||||||
| Diameter of Bolt Circle C | Diameter Of raised Face g | Inside DaimeterOf Flanges do | O.D. of Steel pipe | t | T | Hub Diameter | Radius r | f | D | Bolt Holes Number | Holes Dia. H | SIZE Of Bolt | S1 | M | S2 | N | L | |||
| a | b | |||||||||||||||||||
| 10 | 90 | 65 | 46 | 17.8 | 17.3 | 14 | 20 | 30 | 32 | 4 | 1 | – | 4 | 15 | M12 | 27 | 4 | 27 | 4 | – |
| 15 | 95 | 70 | 51 | 22.2 | 21.7 | 14 | 20 | 34 | 36 | 4 | 1 | – | 4 | 15 | M12 | 31 | 4 | 31 | 4 | – |
| 20 | 100 | 75 | 56 | 27.7 | 27.2 | 16 | 22 | 40 | 42 | 4 | 1 | – | 4 | 15 | M12 | 37 | 4 | 37 | 4 | – |
| 25 | 125 | 90 | 67 | 34.5 | 34 | 16 | 24 | 48 | 50 | 4 | 1 | 4 | 19 | M16 | 44 | 4 | 44 | 4.5 | – | |
| 32 | 135 | 100 | 76 | 43.2 | 42.7 | 18 | 26 | 56 | 60 | 5 | 2 | – | 4 | 19 | M16 | 52 | 4 | 53 | 5 | – |
| 40 | 140 | 105 | 81 | 49.1 | 48.6 | 18 | 26 | 62 | 66 | 5 | 2 | – | 4 | 19 | M16 | 58 | 4 | 59 | 5.5 | – |
| 50 | 155 | 120 | 96 | 61.1 | 60.5 | 18 | 26 | 76 | 80 | 5 | 2 | – | 8 | 19 | M16 | 70 | 4 | 72 | 5.5 | – |
| 65 | 175 | 140 | 116 | 77.7 | 76.3 | 20 | 30 | 100 | 104 | 5 | 2 | 65.9 | 8 | 19 | M16 | 94 | 6 | – | – | 6 |
| 80 | 200 | 160 | 132 | 90 | 89.1 | 22 | 34 | 113 | 117 | 6 | 2 | 78.1 | 8 | 23 | M20 | 107 | 6 | – | – | 6 |
| -90 | 210 | 170 | 145 | 102.6 | 101.6 | 24 | 36 | 126 | 130 | 6 | 2 | 90.2 | 8 | 23 | M20 | 120 | 6 | – | – | 6 |
| 100 | 225 | 185 | 160 | 115.4 | 114.3 | 24 | 36 | 138 | 142 | 6 | 2 | 102.3 | 8 | 23 | M20 | 132 | 6 | – | – | 6 |
| 125 | 270 | 225 | 195 | 141.2 | 139.8 | 26 | 40 | 166 | 172 | 6 | 2 | 126.6 | 8 | 25 | M22 | 160 | 7 | – | – | 6 |
| 150 | 305 | 260 | 230 | 166.6 | 165.2 | 28 | 42 | 196 | 202 | 6 | 2 | 151 | 12 | 25 | M22 | 186 | 8 | – | – | 6 |
| 200 | 350 | 305 | 275 | 218 | 216.3 | 30 | 46 | 244 | 252 | 6 | 2 | 199.9 | 12 | 25 | M22 | 237 | 9 | – | – | 6 |
| 250 | 430 | 380 | 345 | 269.5 | 267.4 | 34 | 52 | 304 | 312 | 6 | 2 | 248.8 | 12 | 27 | M24 | 290 | 10 | – | – | 6 |
| 300 | 480 | 430 | 395 | 321 | 318.5 | 36 | 56 | 354 | 364 | 8 | 3 | 297.9 | 16 | 27 | M24 | 345 | 11 | – | – | 6 |
| 350 | 540 | 480 | 440 | 358.1 | 355.6 | 40 | 62 | 398 | 408 | 8 | 3 | 333.4 | 16 | 33 | M30X3 | 384 | 12 | – | – | 6 |
| 400 | 605 | 540 | 495 | 409 | 406.4 | 46 | 70 | 446 | 456 | 10 | 3 | 381 | 16 | 33 | M30X3 | 437 | 13 | – | – | 7 |
| 450 | 675 | 605 | 560 | 460 | 457.2 | 48 | 78 | 504 | 514 | 10 | 3 | 431.8 | 20 | 33 | M30X3 | 490 | 15 | – | – | 7 |
| 500 | 730 | 660 | 615 | 511 | 508 | 50 | 84 | 558 | 568 | 10 | 3 | 482.6 | 20 | 33 | M30X3 | 544 | 16 | – | – | 7 |
| -550 | 795 | 720 | 670 | 562 | 558.8 | 52 | 90 | 612 | 622 | 10 | 3 | 533.4 | 20 | 39 | M36X3 | 595 | 16 | – | – | 7 |
| 600 | 845 | 770 | 720 | 613 | 609.6 | 54 | 96 | 666 | 676 | 10 | 3 | 584.2 | 24 | 39 | M36X3 | 646 | 18 | – | – | 7 |
| *650 | 945 | 850 | 790 | 664 | 660.4 | 60 | 5 | 24 | 48 | M45X3 | ||||||||||
| *700 | 995 | 900 | 840 | 715 | 711.2 | 64 | 5 | 24 | 48 | M45X3 | ||||||||||
| *750 | 1080 | 970 | 900 | 766 | 762 | 68 | 5 | 24 | 56 | M52X3 | ||||||||||
| *800 | 1140 | 1030 | 960 | 817 | 812.8 | 72 | 5 | 24 | 56 | M52X3 | ||||||||||
| *850 | 1200 | 1090 | 1020 | 868 | 863.6 | 74 | 5 | 24 | 56 | M52X3 | ||||||||||
| *900 | 1250 | 1140 | 1070 | 919 | 914.4 | 76 | 5 | 28 | 56 | M52X3 | ||||||||||
| NPS (Inches) |
DN (mm) |
FLANGE OD A MM |
FLANGE THICKNESS D MM |
SLIP ON FLANGE WEIGHT (KGS) | WELD NECK FLANGE WEIGHT (KGS) | BLIND FLANGE WEIGHT (KGS) |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all Raised Face Korean Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.
| ASME B16.5 Korean Flange | Korean Flange Supplier in India |
| Raised Face Korean Flange Manufacturer | ANSI B16.5 Korean Flange |
| ANSI B16.5 Class 150 Korean Flange | ASME B16.47 Series B Korean Flanges Dealer in India |
| ASME B16.5 Class 300 Slip-On Flanges Stockist | Flat Faced Slip-On Flanges |
| EN 1092-2 PN16 Korean Flange Stockist in India | AWWA C207 Class D Korean Flange |
| ANSI B16.5 Korean Flanges Wholesaler | EN 1092-1 Korean Flanges Supplier |
| ASME B16.47 Series A Korean Flange Manufacturer | JIS 10K Korean Flanges |
| PN16 Korean Flange Dimensions | Table D Korean Flange Dimensions |
| JIS 5K Korean Flange Dimensions | 30 Inch Korean Flange Dimensions |
| EN 1092-2 Korean Flange | Carbon Steel Raised Face Korean Flange Stockist |
| 4 inch Stainless Steel Korean Flange | Korean Welding Neck Flange Stockholder |
| ASME B16.5 Class 600 Raised Faced Slip-On Flanges | Forged Korean pipe flange Exporter |
| Stainless Steel Korean Flange | ASTM B564 Raised Faced Slip-On Flanges |
| A182 Flat Faced Slip-On Flanges | Titanium Flat Faced Slip-On Flanges |
| Class 900 Slip-on Flange Dimensions | Class 1500 Slip-on Flange Dimensions |
| Duplex Steel Korean Flanges Supplier in Mumbai | JIS 10K Korean Flange Supplier in Mumbai |
| Korean Flange Table E | SS Korean Flange 150LBS |
| 18 inch Korean Class 150 Carbon Steel Flange | AWWA C207 Korean Forged Flanges |
| ASME B16.5 Korean Plate Flanges Exporter | Duplex Steel Korean Flanges |
| Table E Korean Pipe Flanges Supplier in Mumbai | Class 1500 Korean Flanges Distributor in Mumbai |
| Nickel Alloy Korean Plate Flange | Mild Steel Korean Reducing Flange |
| JIS B2220 5K 10K 16K Korean Flanges | DIN Standard PN25 Korean Flanges |
| Korean 8 Inch Flanges | ANSI B16.5 150 LBS Korean RF Flanges |
| Carbon Steel Korean Flat Face Pipe Flange | ANSI #150 Korean Flange Supplier |
| JIS B2220 10K Korean Flange | PN 10 Korean Flanges |
| ASME B16.5 Korean Flange Manufacturer | 150# Forged Steel Flat Face Slip-On Flange Manufacturer |
| JIS 16K Korean Flange Dealer | DIN 86029 PN10 Korean Flange Manufacturer |
| BS 4504 PN10 Korean Flanges Supplier in Mumbai | Alloy Steel Korean Flanges Manufacturer in India |
| ASME SA105N Raised Faced Slip-On Flanges | 18 inch Korean Class 150 Carbon Steel Flange |
| Alloy 20 Korean Flanges | Copper Nickel Korean Flanges at Best Price |
| DIN 2503 PN25 Korean Flanges Supplier | Suppliers of DIN 2543 PN16 Korean Flanges |
korean flange price list, jis 5k korean flange dimensions, korean flanges dealer, korean flanges manufacturer in india, class 600 korean flange dimensions, asme b16.5 ss korean flange, asme b16 47 korean flange dimensions, class 600# korean flanges exporter, class d korean flange, smo 254 korean flange price list, korean pipe flanges supplier in india, monel korean flanges exporter, ansi b 16.5 korean flange dimensions, korean flange dimensions 300#, korean flange distribution, korean flange thickness, 24 korean flange dimensions, nickel alloy korean flange supplier in mumbai, korean flange en 1092-1, dimensions of korean flange, titanium korean flanges stockist in mumbai, class 900# korean flanges stock, korean flat face flange price list in mumbai, korean flange 150 dimensions, korean flanges stockholder, ms korean flange, korean flange dimensions, asme 16.5 korean reducing flanges stockholder, korean flange class 150 dimensions, pn16 korean flange dimensions, korean flange dimensions in mm, class 900 korean flange dimensions, korean flange dimensions mm, korean flanges dealer, korean flange jis 5k, korean flange pn10, jis 5k korean flange weight, series b korean flange, bs10 table d korean flange, carbon steel korean flange manufacturer, alloy 20 flanges manufacturer, korean flanges supplier in mumbai, 1/2 korean flange, korean flanges stockist in mumbai, en 1092-1 korean flange, awwa c207 class d korean flange, korean flanges traders, table d korean flange dimensions, korean flange 150 class, alloy steel korean flanges supplier, korean flange price list in india, 30 inch korean flange dimensions, super duplex steel korean flanges, korean flange price in ahmedabad, korean flange welding to pipe, korean reducing flanges, incoloy korean flanges distributor, korean flange table d, class 1500# korean flanges, hastelloy korean flanges manufacturer in mumbai, korean flange weight chart in kg, price of stainless steel korean, 150 lb korean flange dimensions, korean flange ansi b16.5 class 150, 4 x 2 reducing korean flange, duplex steel korean flanges supplier in india, korean flanges manufacturers in india, korean flange dn80 pn10, inconel korean flanges wholesaler, korean flange specification, korean flange din 2576 pn16, korean flange din 2576 pn10, korean plate flanges manufacturer in mumbai, cost of korean flange, korean flange jis 10k, korean flanges dimensions, korean flange pn16, 6 x 4 reducing korean flange, stainless steel korean flanges importer, jis korean flange, korean flange 150 lbs dimensions, korean flange dimensions pn16, biggest korean flange manufacturer in india, korean flange dimensions class 150, korean flanges manufacturer in rajkot, korean flange price list philippines, korean flange dealer in gujarat, korean flange price, nickel alloy korean flange price list in india, copper nickel korean manufacturer in mumbai, table e korean flange dimensions.
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
| Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
| Bhubaneswar | Vijaywada | Firozabad | Bokaro Steel City | Rajkot | Bharuch |
| Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
| Peenya | Pimpri-Chinchwad | Channapatna | Kharagpur | Nashik | Bareilly |
| Varanasi | Haldia | Rourkela | Bangalore | Moradabad | Indore |
| Visakhapatnam | Trivandrum | Pithampur | Dibrugarh | Angul | Gwalior |
| Coimbatore | Kannur | Nagpur | Vadodara | Rudrapur | Noida |
| Agra | Bhagalpur | Jamshedpur | Bhilai | Lucknow | Kanpur |
| Thane | Bhopal | Sri City | Bareilly | Hosdurg | Pithampur |
Rajendra Industrial Corporation is a highly acclaimed manufacturer, supplier and exporter of Stainless Steel Flanges, Carbon Steel Flanges and Alloy Steel Flanges like Slipon Flanges, BLRF Flanges, Weldneck Flanges, Socket Weld Flanges etc.
