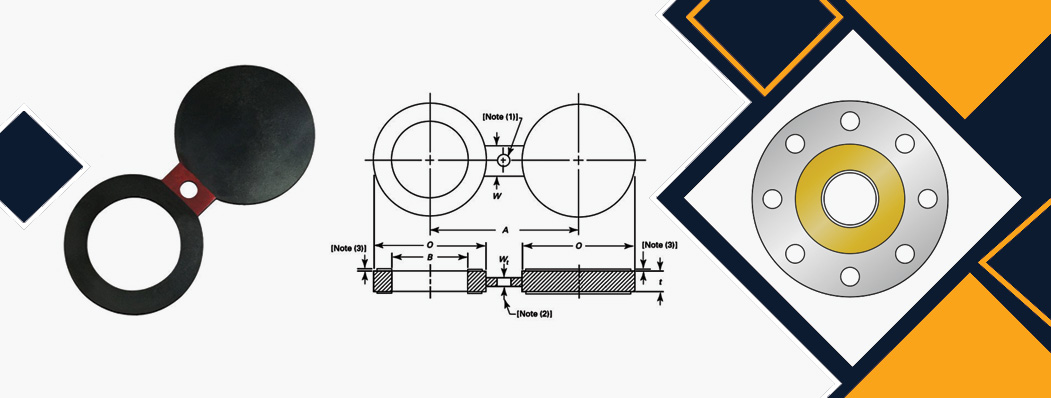

Manufacturer of ANSI B16.48 Spectacle Blind Flange and Spectacle Blind Pipe Flanges in ASME B16.48 Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.48
The Spectacle Blind Flanges is used to separate a stretch of line or piece of equipment that needs to be taken out of service. It's a steel plate that cuts two discs of a specific thickness, with the other diameter being a ring with the same interior diameter as the flange. Essentially, these are used to join two pipes together. To open and close the flow from pipes, carbon steel spectacle blind flanges can be readily turned. In high-pressure pipe networks, these are employed. A variety of Stainless Steel and Carbon Steel grades and requirements are available. These are produced utilizing high-quality raw materials, and the product is then applied. Stainless Steel Spectacle Blind Flanges are commonly used in waterworks, sewers, and plant pipes, among other applications. Size, type, and materials are among the other specifications and dimensions.
Table Of Contents
These Spectacle Blind Flanges are utilized in petrochemicals, steel mills, and other industries and come in a variety of sizes and shapes. The Stainless Steel Spectacle Blind Flange is utilized in a variety of industries, including oil and gas pipelines, heating, power plants, fabrication, and more. Without welding, these Stainless Steel and Carbon Steel Spectacle Blind Flanges are joined to the pipe. It comes in a variety of materials and grades. As a result, one of the best companies, Rajendra Industrial Corporation manufactures this product. Our skilled team is capable of managing the manufacturing process and delivering the goods on time. Rajendra Industrial Corporation not only offers new, improved products to its line-up, but we also work to improve the safety standard of our vast line of high-quality items. Quality is our top priority, and we adhere to it religiously.
Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
---|---|
Standards | ANSI/ASME B16.48, Series A & B, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.48/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Production Technique | Forged, Heat treated and machined |
Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
Material | Inconel Spectacle Blind Flange, Alloy 20 Spectacle Blind Flange, Monel Spectacle Blind Flange, Copper Nickel Spectacle Blind Flange, Nickel Alloy Spectacle Blind Flange, Duplex Steel Spectacle Blind Flange, AISI 4130 Spectacle Blind Flange, Super Duplex Spectacle Blind Flange, Stainless Steel Spectacle Blind Flange, Incoloy Spectacle Blind Flange, Hastelloy Spectacle Blind Flange, SMO 254 Spectacle Blind Flange, Brass Spectacle Blind Flange, Titanium Spectacle Blind Flange. |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Manufacturer of ANSI B16.48 Spectacle Blind Flange and Spectacle Blind Pipe Flanges in ASME B16.48 Class 150 Lb, 300 Lb, 400 Lb, 600 Lb, 900 Lb, 1500 Lb and 2500 Lb as per ASME/ ASA/ ANSI B16.48
Price list of ASME B16.47 Series A Spectacle Blind Flange | US $0.5-1000 / Piece (FOB Price) |
ANSI B16.48 Class 150 Spectacle Blind Flanges Price in India | US $300-500 / Ton (FOB Price) |
Price list of Spectacle Blinds | US $1-900 / Piece (FOB Price) |
Stainless Steel Spectacle Blind Flanges Price | US $0.5-1000 / Piece (FOB Price) |
Spectacle Blind Flange Price List | US $1-300 / Piece (FOB Price) |
Spectacle Blind Flange Price Per Piece in India | US $1-800 / Piece (FOB Price) |
ASME B16.48 Class 300 Raised Faced Spectacle Blind Flanges Price | US $15-900 / Piece (FOB Price) |
Price of Flat Faced Spectacle Blinds EN 1092-1 Type 02 | US $20-1500 / Piece (FOB Price) |
EN 1092-2 PN16 Spectacle Blind Flange Price List | US $26-2000 / Piece (FOB Price) |
AWWA C207 Class d Spectacle Blind Flange Price | US $18-1800 / Piece (FOB Price) |
We can supply BS 4504 PN10 Spectacle Blind Flanges with customized Class / Pressure and sizes, view EN 1092-1 Type 02 Class 150 Spectacle Blind Flange Price.
Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 15 | 16 | 45 | 60 | 3 | 38 | 2 | 15.875 | 0.07 | 0.03 | 0.03 |
3/4 | 20 | 21 | 54 | 70 | 3 | 38 | 2 | 15.875 | 0.1 | 0.05 | 0.04 |
1 | 25 | 27 | 64 | 80 | 3 | 38 | 2 | 15.875 | 0.14 | 0.07 | 0.06 |
1 1/4 | 32 | 42 | 73 | 90 | 6.4 | 38 | 4 | 15.875 | 0.35 | 0.21 | 0.14 |
1 1/2 | 40 | 48 | 83 | 100 | 6.4 | 38 | 4 | 15.875 | 0.46 | 0.27 | 0.18 |
2 | 50 | 61 | 102 | 120 | 6.4 | 51 | 4 | 19.05 | 0.68 | 0.41 | 0.26 |
2 1/2 | 65 | 73 | 107 | 140 | 6.4 | 51 | 4 | 19.05 | 0.7 | 0.46 | 0.24 |
3 | 80 | 89 | 133 | 150 | 6.4 | 64 | 4 | 19.05 | 1.1 | 0.71 | 0.39 |
3 1/2 | 90 | 102 | 159 | 175 | 9.7 | 64 | 5 | 19.05 | 2.44 | 1.54 | 0.9 |
4 | 100 | 114 | 172 | 190 | 9.7 | 64 | 5 | 19.05 | 2.81 | 1.8 | 1.01 |
5 | 130 | 141 | 194 | 215 | 9.7 | 76 | 5 | 22.225 | 3.37 | 2.29 | 1.08 |
6 | 150 | 168 | 219 | 240 | 12.7 | 76 | 7 | 22.225 | 5.39 | 3.82 | 1.57 |
8 | 200 | 219 | 276 | 300 | 12.7 | 76 | 10 | 22.225 | 8.32 | 6.07 | 2.25 |
10 | 250 | 273 | 337 | 360 | 15.7 | 102 | 12 | 25.4 | 15.04 | 11.19 | 3.84 |
12 | 300 | 324 | 406 | 430 | 19.1 | 102 | 15 | 25.4 | 26.95 | 19.77 | 7.18 |
14 | 350 | 356 | 448 | 475 | 19.1 | 108 | 15 | 28.575 | 32.94 | 24.07 | 8.87 |
16 | 400 | 406 | 511 | 540 | 22.4 | 108 | 17 | 28.575 | 50.27 | 36.73 | 13.54 |
18 | 450 | 457 | 546 | 580 | 25.4 | 114 | 20 | 31.75 | 61.79 | 47.55 | 14.23 |
20 | 500 | 508 | 603 | 635 | 28.4 | 121 | 22 | 31.75 | 83.67 | 64.85 | 18.82 |
24 | 600 | 610 | 714 | 750 | 31.8 | 140 | 24 | 34.925 | 129.3 | 101.8 | 27.49 |
Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 15 | 16 | 51 | 65 | 6.4 | 38 | 4 | 15.875 | 0.19 | 0.1 | 0.09 |
3/4 | 20 | 21 | 64 | 80 | 6.4 | 38 | 4 | 19.05 | 0.31 | 0.16 | 0.14 |
1 | 25 | 27 | 70 | 90 | 6.4 | 38 | 4 | 19.05 | 0.36 | 0.19 | 0.16 |
1 1/4 | 32 | 42 | 79 | 100 | 6.4 | 38 | 4 | 19.05 | 0.43 | 0.25 | 0.17 |
1 1/2 | 40 | 48 | 92 | 115 | 6.4 | 38 | 4 | 22.225 | 0.58 | 0.34 | 0.24 |
2 | 50 | 61 | 108 | 125 | 9.7 | 51 | 5 | 19.05 | 1.19 | 0.71 | 0.48 |
2 1/2 | 65 | 73 | 127 | 150 | 9.7 | 51 | 5 | 22.225 | 1.64 | 0.98 | 0.65 |
3 | 80 | 89 | 146 | 170 | 9.7 | 64 | 5 | 22.225 | 2.11 | 1.29 | 0.81 |
3 1/2 | 90 | 102 | 162 | 185 | 12.7 | 64 | 7 | 22.225 | 3.35 | 2.09 | 1.26 |
4 | 100 | 114 | 178 | 200 | 12.7 | 64 | 7 | 22.225 | 4.01 | 2.52 | 1.49 |
5 | 130 | 141 | 213 | 235 | 15.7 | 76 | 8 | 22.225 | 6.98 | 4.47 | 2.51 |
6 | 150 | 168 | 248 | 270 | 15.7 | 76 | 8 | 22.225 | 9.34 | 6.06 | 3.28 |
8 | 200 | 219 | 305 | 330 | 22.4 | 76 | 17 | 25.4 | 19.42 | 13.08 | 6.33 |
10 | 250 | 273 | 359 | 385 | 25.4 | 102 | 20 | 28.575 | 29.22 | 20.55 | 8.66 |
12 | 300 | 324 | 419 | 450 | 28.4 | 102 | 22 | 31.75 | 43.9 | 31.31 | 12.58 |
14 | 350 | 356 | 483 | 515 | 31.8 | 108 | 24 | 31.75 | 67.86 | 46.58 | 21.27 |
16 | 400 | 406 | 536 | 570 | 38.1 | 108 | 29 | 34.925 | 98.04 | 68.74 | 29.3 |
18 | 450 | 457 | 594 | 630 | 41.1 | 114 | 31 | 34.925 | 128.23 | 91.06 | 37.16 |
20 | 500 | 508 | 651 | 685 | 44.5 | 121 | 34 | 34.925 | 164.75 | 118.43 | 46.31 |
24 | 600 | 610 | 772 | 810 | 50.8 | 140 | 39 | 41.275 | 261.55 | 190.13 | 71.42 |
Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 15 | 16 | 51 | 65 | 6.4 | 38 | 4 | 15.875 | 0.19 | 0.1 | 0.09 |
3/4 | 20 | 21 | 64 | 80 | 6.4 | 38 | 4 | 19.05 | 0.31 | 0.16 | 0.14 |
1 | 25 | 27 | 70 | 90 | 6.4 | 57 | 4 | 19.05 | 0.36 | 0.19 | 0.16 |
1 1/4 | 32 | 37 | 79 | 100 | 9.7 | 57 | 5 | 19.05 | 0.67 | 0.38 | 0.29 |
1 1/2 | 40 | 43 | 92 | 115 | 9.7 | 67 | 5 | 22.225 | 0.91 | 0.51 | 0.4 |
2 | 50 | 55 | 108 | 125 | 9.7 | 57 | 5 | 19.05 | 1.23 | 0.71 | 0.52 |
2 1/2 | 65 | 67 | 127 | 150 | 12.7 | 67 | 7 | 22.225 | 2.21 | 1.28 | 0.92 |
3 | 80 | 83 | 146 | 170 | 12.7 | 67 | 7 | 22.225 | 2.85 | 1.7 | 1.15 |
3 1/2 | 90 | 96 | 159 | 185 | 15.7 | 76 | 8 | 25.4 | 4.07 | 2.49 | 1.58 |
4 | 100 | 108 | 191 | 215 | 15.7 | 76 | 8 | 25.4 | 6.04 | 3.59 | 2.44 |
5 | 130 | 135 | 238 | 265 | 19.1 | 86 | 10 | 28.575 | 11.4 | 6.79 | 4.6 |
6 | 150 | 162 | 264 | 290 | 22.4 | 86 | 12 | 28.575 | 15.91 | 9.8 | 6.11 |
8 | 200 | 212 | 318 | 350 | 28.4 | 95 | 22 | 31.75 | 28.05 | 18.03 | 10.01 |
10 | 250 | 265 | 397 | 430 | 35.1 | 105 | 27 | 34.925 | 54 | 34.74 | 19.26 |
12 | 300 | 315 | 454 | 490 | 41.1 | 105 | 31 | 34.925 | 80.78 | 53.2 | 27.58 |
14 | 350 | 346 | 489 | 525 | 44.5 | 114 | 34 | 38.1 | 100.19 | 66.82 | 33.36 |
16 | 400 | 397 | 562 | 605 | 50.8 | 124 | 39 | 41.275 | 151.24 | 100.76 | 50.48 |
18 | 450 | 448 | 610 | 655 | 53.8 | 133 | 41 | 44.45 | 183.62 | 125.71 | 57.9 |
20 | 500 | 497 | 679 | 725 | 63.5 | 133 | 48 | 44.45 | 269.2 | 183.85 | 85.35 |
24 | 600 | 597 | 787 | 840 | 73.2 | 152 | 55 | 50.8 | 405.6 | 284.72 | 120.88 |
Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 15 | 16 | 60 | 80 | 6.4 | 38 | 4 | 22.225 | 0.27 | 0.14 | 0.13 |
3/4 | 20 | 21 | 67 | 90 | 6.4 | 41 | 4 | 22.225 | 0.34 | 0.18 | 0.16 |
1 | 25 | 27 | 76 | 100 | 6.4 | 57 | 4 | 25.4 | 0.43 | 0.23 | 0.2 |
1 1/4 | 32 | 37 | 86 | 110 | 9.7 | 57 | 5 | 25.4 | 0.81 | 0.45 | 0.36 |
1 1/2 | 40 | 43 | 95 | 125 | 9.7 | 67 | 5 | 28.575 | 0.98 | 0.54 | 0.43 |
2 | 50 | 55 | 140 | 165 | 12.7 | 57 | 7 | 25.4 | 2.88 | 1.56 | 1.32 |
2 1/2 | 65 | 67 | 162 | 190 | 12.7 | 67 | 7 | 28.575 | 3.82 | 2.09 | 1.73 |
3 | 80 | 83 | 165 | 190 | 15.7 | 67 | 8 | 25.4 | 4.68 | 2.68 | 2 |
4 | 100 | 108 | 203 | 235 | 19.1 | 76 | 10 | 31.75 | 8.48 | 4.94 | 3.54 |
5 | 130 | 135 | 244 | 280 | 22.4 | 86 | 12 | 34.925 | 14.18 | 8.37 | 5.81 |
6 | 150 | 162 | 286 | 320 | 25.4 | 86 | 13 | 31.75 | 21.9 | 13.04 | 8.86 |
8 | 200 | 212 | 356 | 395 | 35.1 | 95 | 27 | 38.1 | 45.96 | 27.93 | 18.02 |
10 | 250 | 265 | 432 | 470 | 41.1 | 105 | 31 | 38.1 | 78.21 | 48.16 | 30.04 |
12 | 300 | 315 | 495 | 535 | 47.8 | 105 | 36 | 38.1 | 117.31 | 73.55 | 43.76 |
14 | 350 | 346 | 518 | 560 | 53.8 | 114 | 41 | 41.275 | 140.86 | 90.65 | 50.2 |
16 | 400 | 397 | 572 | 615 | 60.5 | 124 | 46 | 44.45 | 188.73 | 124.31 | 64.42 |
18 | 450 | 448 | 635 | 685 | 66.5 | 133 | 50 | 50.8 | 252.97 | 168.39 | 84.57 |
20 | 500 | 497 | 696 | 750 | 73.2 | 133 | 55 | 53.975 | 331.81 | 222.68 | 109.13 |
24 | 600 | 597 | 835 | 900 | 88.9 | 152 | 67 | 66.675 | 579.52 | 389.25 | 190.27 |
Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 15 | 16 | 61 | 80 | 6.4 | 38 | 4 | 22.225 | 0.28 | 0.14 | 0.13 |
3/4 | 20 | 21 | 67 | 90 | 9.7 | 41 | 5 | 22.225 | 0.52 | 0.27 | 0.24 |
1 | 25 | 27 | 76 | 100 | 9.7 | 64 | 5 | 25.4 | 0.65 | 0.35 | 0.3 |
1 1/4 | 32 | 35 | 86 | 110 | 9.7 | 64 | 5 | 25.4 | 0.82 | 0.45 | 0.37 |
1 1/2 | 40 | 41 | 95 | 125 | 12.7 | 70 | 7 | 28.575 | 1.3 | 0.71 | 0.58 |
2 | 50 | 53 | 140 | 165 | 12.7 | 70 | 7 | 25.4 | 2.9 | 1.56 | 1.33 |
2 1/2 | 65 | 63 | 162 | 190 | 15.7 | 76 | 8 | 28.575 | 4.78 | 2.58 | 2.19 |
3 | 80 | 78 | 172 | 205 | 19.1 | 76 | 10 | 31.75 | 6.36 | 3.54 | 2.81 |
4 | 100 | 102 | 206 | 240 | 22.4 | 89 | 12 | 34.925 | 10.47 | 5.96 | 4.5 |
5 | 130 | 128 | 251 | 290 | 28.4 | 89 | 15 | 41.275 | 19.55 | 11.23 | 8.31 |
6 | 150 | 154 | 279 | 320 | 35.1 | 89 | 18 | 38.1 | 29.08 | 17.15 | 11.93 |
8 | 200 | 203 | 349 | 395 | 41.1 | 102 | 31 | 44.45 | 52.23 | 31.43 | 20.8 |
10 | 250 | 255 | 432 | 480 | 50.8 | 114 | 39 | 50.8 | 98.33 | 59.53 | 38.79 |
12 | 300 | 303 | 518 | 570 | 60.5 | 114 | 46 | 53.975 | 169.01 | 101.94 | 67.06 |
14 | 350 | 333 | 575 | 635 | 66.5 | 127 | 50 | 60.325 | 229.84 | 138.07 | 91.76 |
16 | 400 | 381 | 638 | 705 | 76.2 | 133 | 58 | 66.675 | 320.1 | 194.78 | 125.32 |
18 | 450 | 429 | 702 | 775 | 85.9 | 146 | 65 | 73.025 | 432.4 | 265.84 | 166.56 |
20 | 500 | 478 | 752 | 830 | 95.3 | 152 | 72 | 79.375 | 540.14 | 338.44 | 201.7 |
24 | 600 | 575 | 899 | 990 | 111.3 | 178 | 84 | 92.075 | 898.71 | 564.9 | 333.8 |
Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 15 | 16 | 67 | 90 | 9.7 | 38 | 5 | 22.225 | 0.53 | 0.27 | 0.25 |
3/4 | 20 | 21 | 73 | 95 | 9.7 | 41 | 5 | 22.225 | 0.62 | 0.32 | 0.29 |
1 | 25 | 27 | 83 | 110 | 9.7 | 64 | 5 | 25.4 | 0.79 | 0.41 | 0.37 |
1 1/4 | 32 | 35 | 102 | 130 | 12.7 | 64 | 7 | 28.575 | 1.56 | 0.82 | 0.73 |
1 1/2 | 40 | 41 | 114 | 145 | 15.7 | 70 | 8 | 31.75 | 2.39 | 1.28 | 1.11 |
2 | 50 | 53 | 143 | 170 | 15.7 | 70 | 8 | 28.575 | 3.75 | 2.01 | 1.73 |
2 1/2 | 65 | 63 | 165 | 195 | 19.1 | 76 | 10 | 31.75 | 6.05 | 3.26 | 2.78 |
3 | 80 | 78 | 194 | 230 | 22.4 | 76 | 12 | 34.925 | 9.73 | 5.29 | 4.43 |
4 | 100 | 102 | 232 | 275 | 28.4 | 89 | 22 | 41.275 | 17.34 | 9.59 | 7.74 |
5 | 130 | 128 | 276 | 325 | 35.1 | 89 | 27 | 47.625 | 29.97 | 16.79 | 13.17 |
6 | 150 | 154 | 314 | 370 | 41.1 | 89 | 31 | 53.975 | 44.77 | 25.44 | 19.32 |
8 | 200 | 198 | 384 | 440 | 53.8 | 102 | 41 | 53.975 | 86.39 | 49.82 | 36.57 |
10 | 250 | 248 | 473 | 540 | 66.5 | 114 | 50 | 66.675 | 161.18 | 93.43 | 67.74 |
12 | 300 | 289 | 546 | 620 | 79.2 | 114 | 60 | 73.025 | 255.01 | 148.27 | 106.73 |
Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
1/2" | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
3/4" | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
1" | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
1 1/2" | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
2" | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
2 1/2" | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
3" | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
4" | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
5" | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
6" | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
8" | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
10" | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
12" | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
14" | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
16" | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
18" | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
20" | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
22" | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
24" | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all Spectacle Blind Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.
ASME B16.48 Spectacle Blind Flange | Spectacle Blind Flange Supplier in India |
Stainless Steel Spectacle Blind Flange | ASTM B564 Raised Faced Spectacle Blind Flanges |
Carbon Steel Spectacle Blind Flat Face Flange | ANSI #150 RTJ Spectacle Blind Flange Supplier |
8 Inch Spectacle Blind Flanges | ANSI B16.48 150 LBS Spectacle Blind Flanges |
Class 900 Spectacle Blind Flange Dimensions | Duplex Steel Spectacle Blind Flanges |
Table E Spectacle Blind Flanges Supplier in Mumbai | Class 1500 Spectacle Blinds Distributor in Mumbai |
Raised Face Spectacle Blind Flange Manufacturer | ANSI B16.48 Spectacle Blind Flange |
A182 Spectacle Blind Flanges | Titanium Flat Faced Spectacle Blind Flanges |
ASME SA105N Raised Faced Spectacle Blind Flanges | 18 inch Spectacle Blind Class 150 Carbon Steel Flange |
4 inch Stainless Steel Spectacle Blind Flange | Spectacle Blind Flanges Stockholder |
EN 1092-2 Spectacle Blind Flanges | Carbon Steel Raised Face Spectacle Blinds Stockist |
JIS B2220 10K Spectacle Blind Flange | PN 10 Spectacle Blind Flanges |
ANSI B16.48 Spectacle Blind Flanges Wholesaler | EN 1092-1 Spectacle Blind Flanges Supplier |
PN16 Spectacle Blind Flange Dimensions | Table D Spectacle Blind Flange Dimensions |
ASME B16.48 Class 300 Spectacle Blinds Stockist | Flat Faced Spectacle Blind Flanges |
ASME B16.48 Spectacle Blind Flange Manufacturer | 150# Flat Face Spectacle Blind Flange Manufacturer |
JIS 16K Spectacle Blind Flange Dealer | DIN 86029 PN10 Spectacle Blind Flange Manufacturer |
Nickel Alloy Spectacle Blind Plate Flange | Mild Steel Spectacle Blind Flange |
Duplex Steel Spectacle Blind Flanges Supplier in Mumbai | SS Spectacle Blind Flange 150LBS |
ASME B16.48 Class 600 Raised Faced Spectacle Blind Flanges | Spectacle Blind Flange Exporter |
JIS 5K Spectacle Blind Flange Dimensions | 30 Inch Spectacle Blind Flange Dimensions |
ASME B16.47 Series A Spectacle Blind Flange Manufacturer | JIS 10K Spectacle Blind Flanges |
BS 4504 PN10 Spectacle Blind Flanges Supplier in Mumbai | Alloy Steel Spectacle Blinds Manufacturer in India |
JIS B2220 5K 10K 16K Spectacle Blind Flanges | DIN Standard PN25 Spectacle Blind Flanges |
Alloy 20 Spectacle Blind Flanges | Copper Nickel Spectacle Blinds at Best Price |
EN 1092-2 PN16 Spectacle Blind Flange Stockist in India | AWWA C207 Class D Spectacle Blind Flange |
ANSI B16.48 Class 150 Spectacle Blind Flange | ASME B16.47 Series B Spectacle Blind Flanges Dealer in India |
JIS 10K Spectacle Blind Flange Supplier in Mumbai | MS Spectacle Blind Flange Table E |
18 inch Spectacle Blind Class 150 Carbon Steel Flange | AWWA C207 Spectacle Blind Flanges |
DIN 2503 PN25 Spectacle Blind Flanges Supplier | Suppliers of DIN 2543 PN16 Spectacle Blind Flanges |
ASME B16.48 Spectacle Blind Flanges Exporter | Class 1500 Spectacle Blind Flange Dimensions |
asme b16.48 ss spectacle blind flange, spectacle blind flange distribution, bs10 table d spectacle blind flange, jis 5k spectacle blind flange dimensions, en 1092-1 spectacle blind flange, duplex steel spectacle blind flanges supplier in india, ms spectacle blind flange, spectacle blind flanges stockist in mumbai, spectacle blind flange dimensions in mm, spectacle blind flange jis 5k, spectacle blind flanges dealer, 1/2 spectacle blind flange, spectacle blind flanges manufacturer in rajkot, spectacle blind flanges dealer, class 900 spectacle blind flange dimensions, super duplex steel spectacle blinds, spectacle blind flanges manufacturers in india, carbon steel spectacle blind flange manufacturer, ansi b 16.48 spectacle blind flange dimensions, spectacle blind flange price list philippines, spectacle blind flange price, alloy steel spectacle blind flanges supplier, price of stainless steel spectacle blind flanges, 30 inch spectacle blind flange dimensions, copper nickel spectacle blind manufacturer in mumbai, class 600 spectacle blind flange dimensions, spectacle blind flange price in ahmedabad, asme 16.48 spectacle blind flanges stockholder, nickel alloy spectacle blind flange price list in india, smo 254 spectacle blind flange price list, spectacle blind flanges stockholder, stainless steel spectacle blind flanges importer, alloy 20 spectacle blind flanges manufacturer, hastelloy spectacle blind flanges manufacturer in mumbai, awwa c207 class d spectacle blind flange, incoloy spectacle blind flanges distributor, nickel alloy spectacle blind flange supplier in mumbai, spectacle blind flange 150 lbs dimensions, cost of spectacle blind flange, titanium spectacle blinds stockist in mumbai, dimensions of spectacle blind flange, spectacle blind flanges traders, pn16 spectacle blind flange dimensions, spectacle blind flange din 2576 pn10, spectacle blind flange din 2576 pn16, spectacle blind flange dealer in gujarat, asme b16.47 spectacle blind flange dimensions, class 600# spectacle blind flanges exporter, spectacle blind flanges manufacturer in mumbai, spectacle blind flange weight chart in kg, spectacle blind flange ansi b16.48 class 150, spectacle blind flange pn10, spectacle blind flange dn80 pn10, inconel spectacle blind flanges wholesaler, table d spectacle blind flange dimensions, 150 lb spectacle blind flange dimensions, spectacle blind flange price list in india, spectacle blind flange at best price in india, class 900# spectacle blind flanges stock, spectacle blinds supplier in india, spectacle blind flange dimensions 300#, spectacle blinds manufacturer in india, class 1500# spectacle blind flanges, spectacle blind flange thickness, table e spectacle blind flange dimensions, biggest spectacle blind flange manufacturer in india, spectacle blind flange dimensions mm, monel spectacle blind flanges exporter, spectacle blind flanges supplier in mumbai, spectacle blind flange price list in mumbai.
Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
Bhubaneswar | Vijaywada | Firozabad | Bokaro Steel City | Rajkot | Bharuch |
Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
Peenya | Pimpri-Chinchwad | Channapatna | Kharagpur | Nashik | Bareilly |
Varanasi | Haldia | Rourkela | Bangalore | Moradabad | Indore |
Visakhapatnam | Trivandrum | Pithampur | Dibrugarh | Angul | Gwalior |
Coimbatore | Kannur | Nagpur | Vadodara | Rudrapur | Noida |
Agra | Bhagalpur | Jamshedpur | Bhilai | Lucknow | Kanpur |
Thane | Bhopal | Sri City | Bareilly | Hosdurg | Pithampur |
