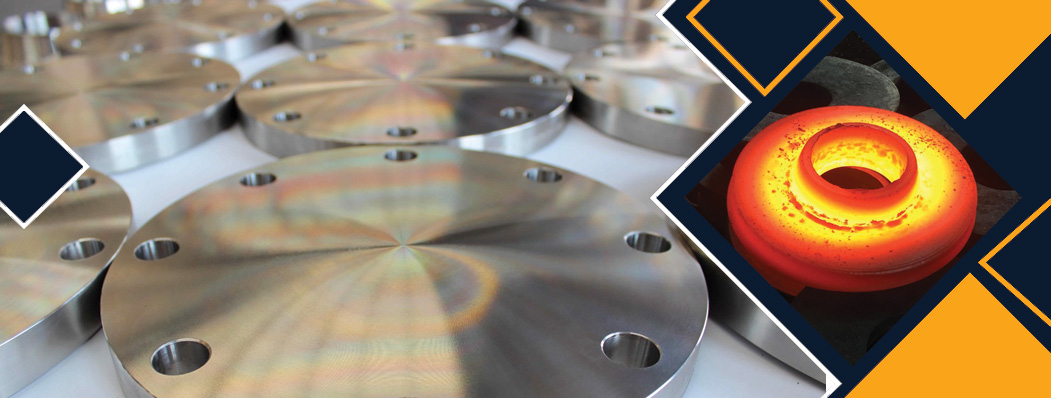

DIN 2527 PN40 Blind Flanges Manufacturer in India

DIN 2527 PN40 Standards Blind Flanges, DIN 2527 PN40 Blind Plate Flange, Raised Face DIN 2527 PN40 BLRF Flanges, Stainless Steel DIN 2527 PN40 Blind Flanges, DIN 2527 PN40 Blind Pipe Flange, Best Price of DIN 2527 PN40 Blind Flange Manufacturer in Mumbai, India.

Rajendra Industrial Corporation is a well-known manufacturer of DIN 2527 PN 40 Blind Flanges with a reputation for producing high-quality industrial goods. The raw material used in the production of these DIN 2527 PN40 Blind Flanges is of the highest quality. These DIN 2527 PN40 Blind Flanges are well-known for their utmost accuracy and machinability. These DIN 2527 PN40 Blind Flanges are also extremely prone to corrosion and long-lasting.

Carbon Steel DIN 2527 PN40 Blind Flanges, Alloy Steel DIN 2527 PN40 Blind Flanges, Copper Nickel DIN 2527 PN40 Blind Flanges, Monel DIN 2527 PN40 BLRF Flange, SDSS DIN 2527 PN40 BLRF Flanges, Inconel DIN 2527 PN40 BLRF Flanges, Nickel Alloy DIN 2527 PN40 Blind Flanges, Duplex Steel DIN 2527 Blind Flange, Hastelloy DIN 2527 PN40 Blind Flanges, SS DIN 2527 PN40 Blind Flanges Stockist, Titanium DIN 2527 PN40 Blind Flanges Supplier in Mumbai, India.

DIN 2527 PN40 Blind Flanges Manufacturer

DIN 2527 PN40 BLRF Flanges, DIN 2527 PN40 Blind Flanges Stockist in India, DIN 2527 PN40 Blind Flanges Supplier in India, DIN 2527 PN40 Blind Flanges Manufacturer in Mumbai, DIN 2527 PN40 Blind Flanges Stockist in Mumbai, DIN 2527 PN40 Blind Flanges Supplier in Mumbai Manufacturer in India.

DIN 2527 PN40 Blind Flanges are manufactured using forged steel or cast steel processes in both carbon steel and stainless steel. One of the most significant criteria for Din 2527 PN40 Flanges is a surface treatment. This surface treatment may be accomplished by coating the Din 2527 Flange with zinc using a variety of processes, such as cold dip galvanization or hot-dip galvanization, for a thick layer of zinc. Din 2527 flanges can be electroplated to provide a thin coating of zinc. The purpose of applying a surface coating to blind flanges Din 2527 is to improve their corrosion resistance and significantly increase their service life.

Specification Chart Of DIN 2527 PN40 Blind Flanges

Size Chart 1/2″ (15 NB) To 48″ (1200NB)
Coating Flanges Faces Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Design For Size DIN, EN, ASA, PN, JIS, BS, ANSI, ASME
Pressure Rating Table Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flanges Material Flanges Bolts, Gasket, Ring Joint
Connect Type Type FF, RTJ, SMF, LMF, RF, LJF
Production Process Forged, Heat Treated and Machined
Standard ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Machining Equipment Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc

DIN 2527 PN40 Blind Flanges Stockholder, Flat Face DIN 2527 PN40 Blind Flanges, Raise Face DIN 2527 PN40 Blind Flanges Manufacturer in Mumbai, PED Certified DIN 2527 PN40 BLRF Pipe Flanges Manufacturer, DIN 2527 PN40 Blind Flanges Pressure Rating, DIN 2527 PN40 BLRF Flanges Dealer in India.

Pipe Flange
Manufacturer of DIN 2527 PN40 Blind Flange, DIN 2527 PN40 Blind Plate Flange Dimensions In MM, DIN 2527 PN40 Blind Flange Pressure Rating, 8 Inch DIN Standard 2527 PN40 Blind Flange Dimensions.

View Price List of DIN 2527 PN40 Blind Flanges

Price list of DIN 2527 PN40 Blind Flange US $0.5-1000 / Piece (FOB Price)
DIN 2527 PN40 Blind Flanges Price in India US $300-500 / Ton (FOB Price)
Price list of Flat Face DIN 2527 PN40 Blind Flange US $1-900 / Piece (FOB Price)
Stainless Steel DIN 2527 PN40 Blind Flanges Price US $0.5-1000 / Piece (FOB Price)
Raised Face DIN 2527 PN40 Blind Flange Price List US $1-300 / Piece (FOB Price)
DIN 2527 PN40 Blind Flange Price Per Piece in India US $1-800 / Piece (FOB Price)
DIN 2527 PN40 Blind Pipe Flanges Price US $15-900 / Piece (FOB Price)
Price of Carbon Steel DIN 2527 PN40 Blind Flanges US $20-1500 / Piece (FOB Price)
DIN 2527 PN40 Blind Plate Flanges Price List US $26-2000 / Piece (FOB Price)
Alloy Steel DIN 2527 PN40 Blind Flange Price US $18-1800 / Piece (FOB Price)

Also view the Raised Face DIN 2527 PN40 Blind Flanges Price List, Buy Large or Small Quantity DIN 2527 PN40 BLRF Flanges at Factory Price, Attractive Price Offer of DIN 2527 PN40 Blind Flange Per Kg, Buy Flat Face DIN 2527 PN40 Blind Flanges at an affordable Price in India.

Flange Factory

Call us or send us an email

We can supply DIN 2527 PN40 Blind Flanges with customized Class / Pressure and sizes, view DIN 2527 PN40 Blind Raised Face Flanges Price.


DIN 2527 PN40 Blind Flange Dimensions

DIN 2527 PN40 Blind Flange Dimensions
DIN 2527 PN40 (in mm)
Nominal Pipe Size Flanges Dia Thk of Flange Dia of Bolt Circle No. of Dia of Bolt Holes
DIN D B K holes D2 KG
10 90 16 60 4 14 0.72
15 95 16 65 4 14 0.81
20 105 18 75 4 14 1.14
25 115 18 85 4 14 1.38
32 140 18 100 4 18 2.03
40 150 18 110 4 18 2.35
50 165 20 125 4 18 3.20
65 185 22 145 8 18 4.29
80 200 24 160 8 18 5.54
100 235 24 190 8 22 7.60
125 270 26 220 8 26 10.82
150 300 28 250 8 26 14.60
175 350 32 295 12 30 22.04
200 375 34 320 12 30 27.21
250 450 38 385 12 33 44.38
300 515 42 450 16 33 64.17
350 580 46 510 16 36 89.52
400 660 50 585 16 39 126.76
500 755 56 670 20 42 184.63
600 890 62 795 20 48 285.17
700 995 64 900 24 48 368.83
800 1140 70 1030 24 56 528.39
900 1250 76 1140 28 56 690.99
1000 1360 84 1250 28 56 912.42

DIN 2527 PN40 Blind Plate Flange Size Chart

NPS
NPS
(inch)
Diammeter of
Flange
(inch)
No.
of
Bolts
Diammeter of
Bolts
(inch)
Diammeter of
Bolt Holes
(inch)
Bolt
Circle
(inch)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2

DIN 2527 PN40 Blind Flanges Manufacturing Process

DIN 2527 PN40 Blind Flanges Manufacturing Process

ISO Certifed DIN 2527 PN40 Blind Flange, View Dimension of DIN 2527 PN40 BLRF Flat Face Flange, Stainless Steel DIN 2527 PN40 Blind Flanges Manufacturer in India for high quality and better price.


DIN 2527 PN40 Blind Flanges Packing & Delivery

We Have 25+ Years Experience
Packing & Delivery

The final process of dispatch is the most tedious of all, and heavy duty cranes are used for it. With the help of our extensive delivery chain we can ensure time critical deliveries at the behest of our esteemed clients.
Our all DIN 2527 PN40 Blind Flange packed with seaworthy packing method then delivery to customers, usually the packing way include wooden box, wooden pallet. We make sure that it is seaworthy, strong, waterproof and easy for loading and unloading.


Application of DIN 2527 PN40 Blind Pipe Flanges

Oil & Gas
Oil & Gas

Oil & Gas

Chemical
Chemical

Chemical

Petrochemical
Petrochemical

Petrochemical

Marine
Marine

Marine

Refinery
Refinery

Refinery

Power Plant
Power Plant

Power Plant

Widest Range of DIN 2527 PN40 Blind Flanges in Mumbai, India

DIN 2527 PN40 Blind Pipe Flanges Wholesaler DIN 2527 PN40 BLRF Flanges Supplier
Carbon Steel Raised Face DIN 2527 PN40 Blind Flange Stockist Duplex Steel DIN 2527 PN40 BLRF Flanges Supplier in Mumbai
Stainless Steel DIN 2527 PN40 Blind Flange ASTM B564 Raised Faced DIN 2527 PN40 Blind Flanges
DIN 2527 PN40 Large Diameter Blind Flange 30 Inch DIN 2527 PN40 Blind Pipe Flange Dimensions
30 inch DIN 2527 PN40 Blind Flange Dealer Raised Face DIN 2527 PN40 Blind Flanges Manufacturer
DIN 2527 PN40 Blind Pipe Flanges Supplier in Mumbai Duplex Steel DIN 2527 PN40 Blind Flanges
4 inch Stainless Steel DIN 2527 PN40 Blind Flange DIN 2527 PN40 Blind RF Flanges Stockholder
Carbon Steel DIN 2527 PN40 Blind Flange DIN 2527 PN40 Blind RF Flange Supplier
Alloy Steel DIN 2527 PN40 Blind Flanges Copper Nickel DIN 2527 PN40 Blind Flanges at Best Price
DIN 2527 PN40 Blind Flange Dimensions Raised Face DIN 2527 PN40 Blind Flange Manufacturer
Raised Face DIN 2527 PN40 Blind Plate Flanges Titanium DIN 2527 PN40 Blind Flanges
Nickel Alloy DIN 2527 PN40 Blind Flange Mild Steel DIN 2527 PN40 Blind Flange
DIN 2527 PN40 BLRF Flanges Distributor in Mumbai Flat Face DIN 2527 PN40 Blind Flanges Exporter
DIN 2527 PN40 BLRF Flange Stockist in India Raised Faced DIN 2527 PN40 Slip-On flanges Dealer in India
18 inch DIN 2527 PN40 Carbon Steel Blind Flange DIN 2527 PN40 Blind Flange Dimensions in mm
DIN 2527 PN40 Blind Flanges Supplier in Mumbai MS DIN 2527 PN40 Blind Flange
8 Inch DIN 2527 PN40 Blind Pipe Flanges DIN 2527 PN40 Blind Flanges Stockist
DIN 2527 PN40 BLRF Flanges Supplier in Mumbai Alloy Steel DIN 2527 PN40 Blind Flanges Manufacturer in India
ASME SA105N Raised Faced DIN 2527 PN40 Blind Flanges 18 inch Carbon Steel DIN 2527 PN40 Blind Flange
German Standard DIN 2527 PN40 Blind Flanges DIN 2527 PN40 Blind Flange Supplier in India
DIN 2527 PN40 Blind FF Flange Supplier Suppliers of DIN 2527 PN40 Blind Flange
DIN 2527 PN40 Blind Flange Manufacturer Flat Face DIN 2527 PN40 Blind Flange Manufacturer
DIN 2527 PN40 BLRF Flange Exporter DIN 2527 PN40 Blind Flange Pressure Ratings
